STA-500

Cod EAN: 4007754180961

Stereo PA amplifier, for general applications. Fan cooling 2 level controls Ground lift switch Speaker switch-on delay Protective circuit with LED indication for protection against short circuit, overheating and DC voltage overlay at the outputs 1...

Citeste mai mult

Intreaba despre produs
Cumpara acum

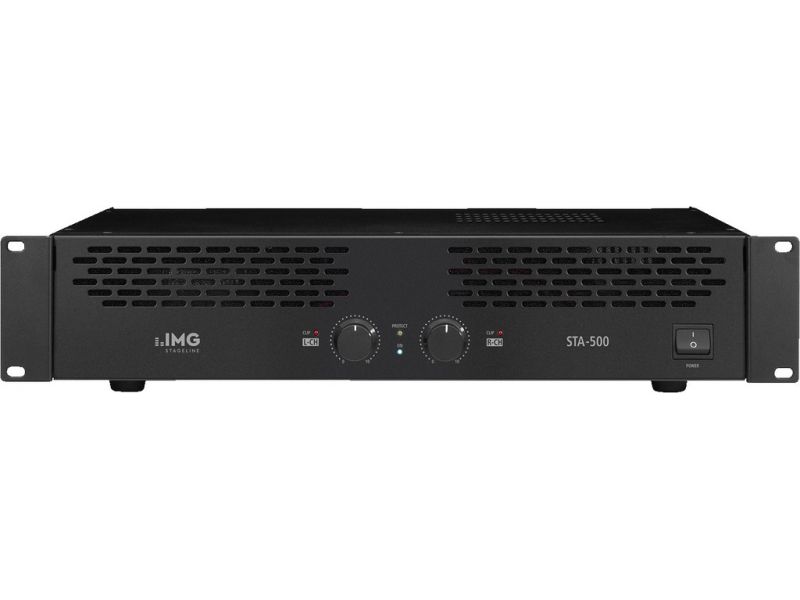

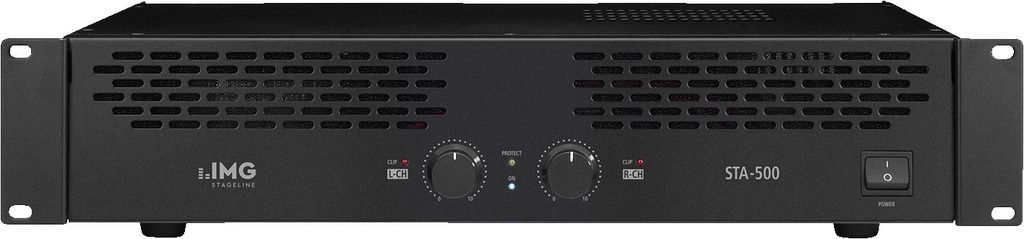

STA-500

Stereo PA amplifier,
for general applications.
  • Fan cooling
  • 2 level controls
  • Ground lift switch
  • Speaker switch-on delay
  • Protective circuit with LED indication for protection against short circuit, overheating and DC voltage overlay at the outputs
  • 1 LED per channel for indicating overload (clip)
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Warning and Safety Instructions
The device is supplied with dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Risk of electric shock!
Do not use this device and disconnect it immediately from the power supply if the device or the power supply cable is visibly damaged, if a defect might have occurred after the device was dropped or suffered a similar accident, if malfunctions occur. Any repairs must be carried out by specialists.
The product is suitable for indoor use only. Protect it against dripping water, splash water and high air humidity (admissible ambient temperature range is 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
The heat generated in the device must be dissipated by air circulation. Never cover the air vents of the housing.
If the device is to be put out of operation definitely, dispose of the product in accordance with local regulations.

Parametrii

Peak output power 600 W
Power rating 400 W
Power rating at 4 Ω 2 x 200 W
Power rating at 8 Ω 2 x 125 W
Channels 2
Inputs 1.3 V/55 kΩ
Frequency range 10-20,000 Hz
Integrated limiter no
S/N ratio 64 dB
Crosstalk attenuation > 55 dB
THD < 0.05%
Power supply ˜ 230 V/50 Hz/730 VA
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 730 VA
Admiss. ambient temp. 0-40 °C
Width 482 mm
Height 95 mm
Depth 300 mm
Rack units, RU 2
Weight 6.6 kg

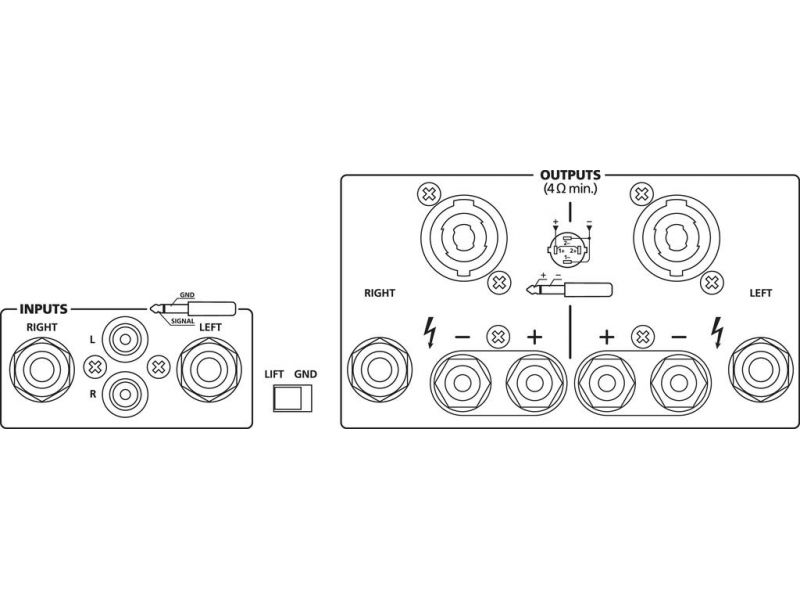

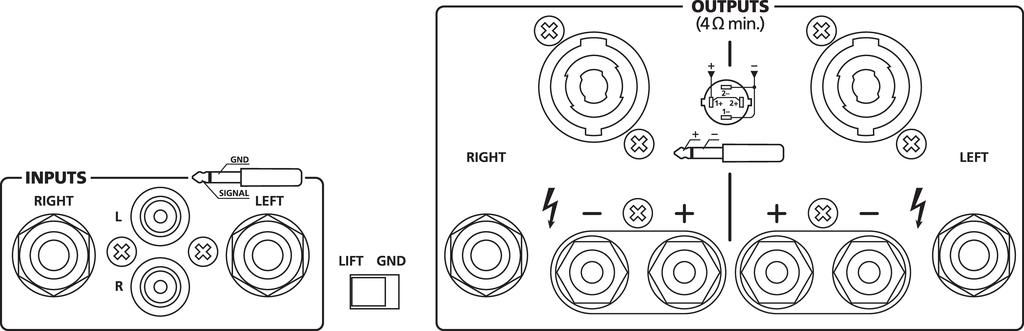

Connections 1 x 6.3 mm jack L/R1 x RCA L/R 2 x SPEAKER 1 x 6.3 mm jack L/R 2 x pair of screw terminals
Packaging dimensions (W x H x L) 0.37 x 0.15 x 0.51 m
Gross weight 7.45 kg
Net weight 6.64 kg

Fisiere de descarcat

Fisa produsului STA-500 konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
