TG-10R/1
Cod EAN: 4007754218275
16-channel PLL Tour Guide System, 863-865 MHz With extensive accessories Operating range: up to 60 m Parallel operation of up to three wireless transmitters Licence-free in the EU PLL pocket receiver 3.5 mm headphone connection Supplied with m...
TG-10R/1
16-channel PLL Tour Guide System, 863-865 MHz
- With extensive accessories
- Operating range: up to 60 m
- Parallel operation of up to three wireless transmitters
- Licence-free in the EU

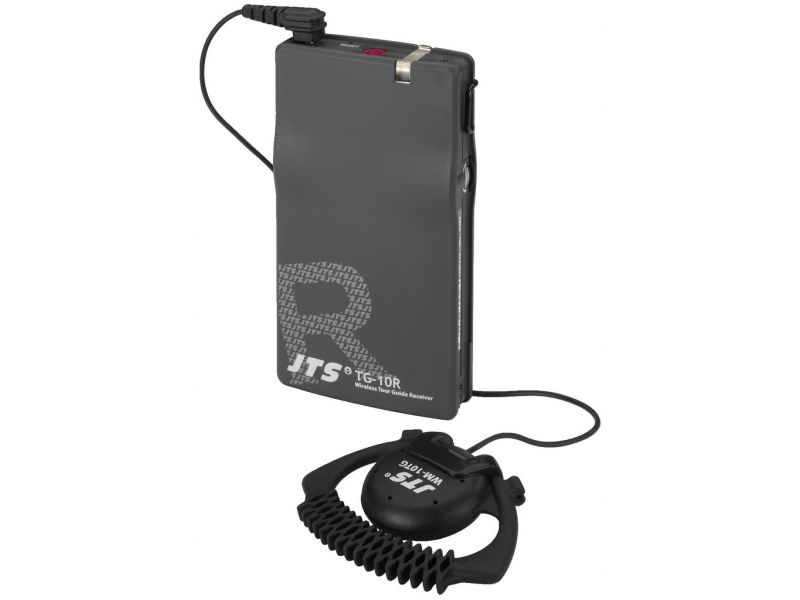

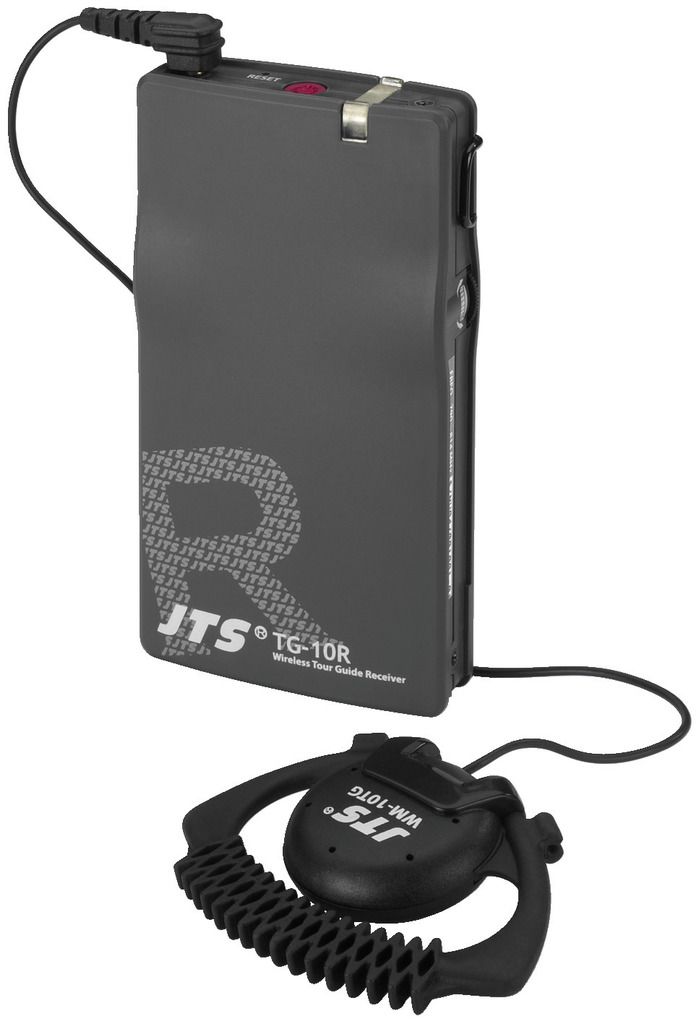

PLL pocket receiver
- 3.5 mm headphone connection
- Supplied with matching earphone with rubber ear hook
- Channel selector button
- LED channel indicator
- Volume level control
- Belt clip and lanyard
Licence-free in the EU.
Induction loop NL-90 for signal transmission to a hearing device available at option.
Manufacturer information:
JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw
EU-Representative:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Remove the rechargeable batteries or batteries if the device is not in use for a longer period of time (e.g. more than a week). This avoids possible damage through leaking batteries.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Batteries and rechargeable batteries must not be disposed of with household waste. They must be disposed of in accordance with local regulations for hazardous waste.
Remove the rechargeable batteries or batteries if the device is not in use for a longer period of time (e.g. more than a week). This avoids possible damage through leaking batteries.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Batteries and rechargeable batteries must not be disposed of with household waste. They must be disposed of in accordance with local regulations for hazardous waste.
Parametrii
| Description | tour guide system pocket receiver |
| Carrier frequency range | 863-865 MHz |
| Audio frequency range | 40-18,000 Hz |
| Channels | 1 |
| Operating time | 12 h |
| Admiss. ambient temp. | 0-40 °C |
| Power supply receiver | rech. lithium-ion batt. 3.7 V/1,300 mAh |
| Width receiver | 54 mm |
| Height receiver | 99 mm |
| Depth receiver | 17 mm |
| Weight receiver | 80 g |
| Connections receiver | 1 x 3.5 mm jack (headphones) |
