TR-6

Cod EAN: 4007754430073

Weatherproof horn speaker 100 V transmission technology 100 V transformer with power taps on the cable 6/3/1.5 W Integrated high-pass filter for sound and stability optimisation Universally suitable for indoor and outdoor use IP54 certified White AB...

Citeste mai mult

Intreaba despre produs
Cumpara acum

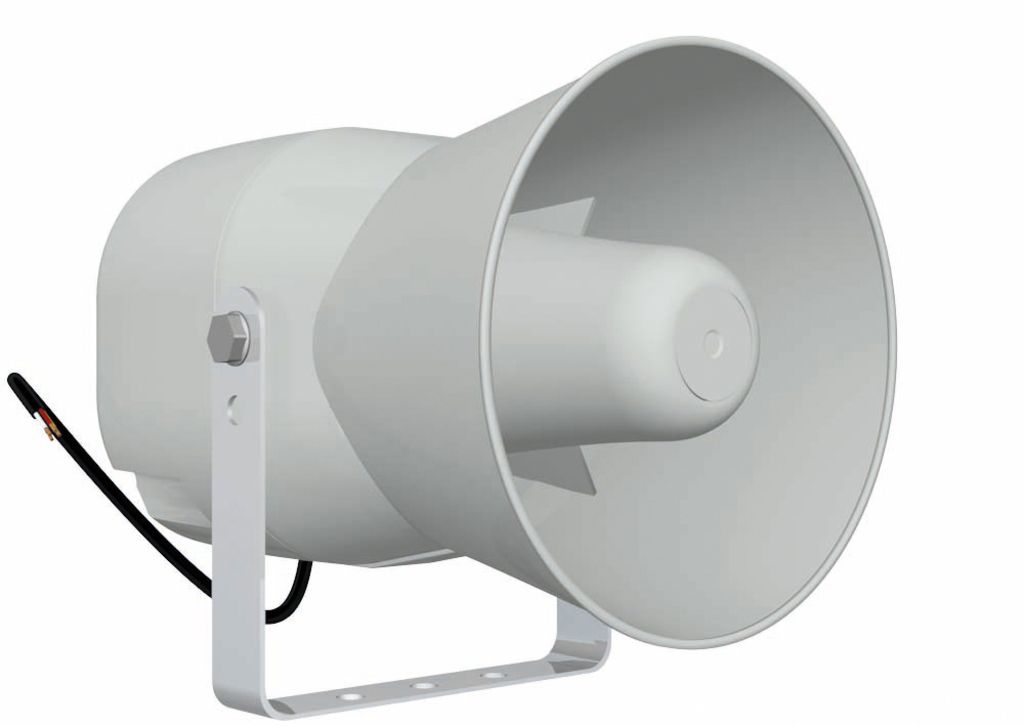

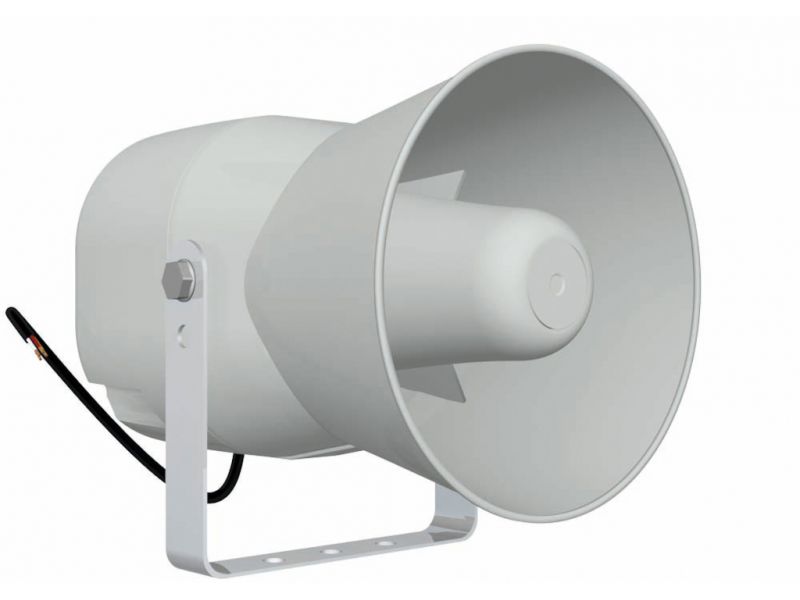

TR-6

Weatherproof horn speaker
  • 100 V transmission technology
  • 100 V transformer with power taps on the cable 6/3/1.5 W
  • Integrated high-pass filter for sound and stability optimisation
  • Universally suitable for indoor and outdoor use
  • IP54 certified
  • White ABS housing (self-extinguishing, complies with UL94V0 standard)
  • Connection via 4-core cable (length 1.5 m)
  • Mounting bracket included
Manufacturer information:
PÖSCHEL ETG e.K.
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de

Parametrii

Active/passive passive
Transmission technology 100 V
Total power rating 6 W
Power rating (RMS) 6/3/1.5 W
Frequency range 500-13,000 Hz
Number of speakers 1
SPL 106 dB/W/m
Max. rated SPL 114 dB
Radiation angle/beam angle 90°
Radiation angle, horizontal 90°
Radiation angle, vertical 90°
Housing material ABS
Colour light grey, RAL 7035
Mounting device mounting bracket
Protection class IP54
Admiss. ambient temp. -40 °C to +70 °C
Dimensions Ø 130 mm x 175 mm
Width Ø 130 mm
Height Ø 130 mm
Depth 175 mm
Weight 1.4 kg
Inputs cable connection
Other features weatherproof
Packaging dimensions (W x H x L) 0.145 x 0.145 x 0.209 m
Gross weight 1.5 kg
Net weight 1.4 kg

Fisiere de descarcat

Fisa produsului TR-6
