TS-C50-1000/T

Cod EAN: 4007754258172

Weatherproof PA column speaker, with EN 54-24 certification. 100 V transmission technology 8 x 7.7 cm (3") waterproof full range speaker 4 power taps: 50/30/15/7.5 W Connection via ceramic terminals with thermal fuse in the cabinet 2 x PG9 cable gl...

Citeste mai mult

Intreaba despre produs
Cumpara acum


TS-C50-1000/T

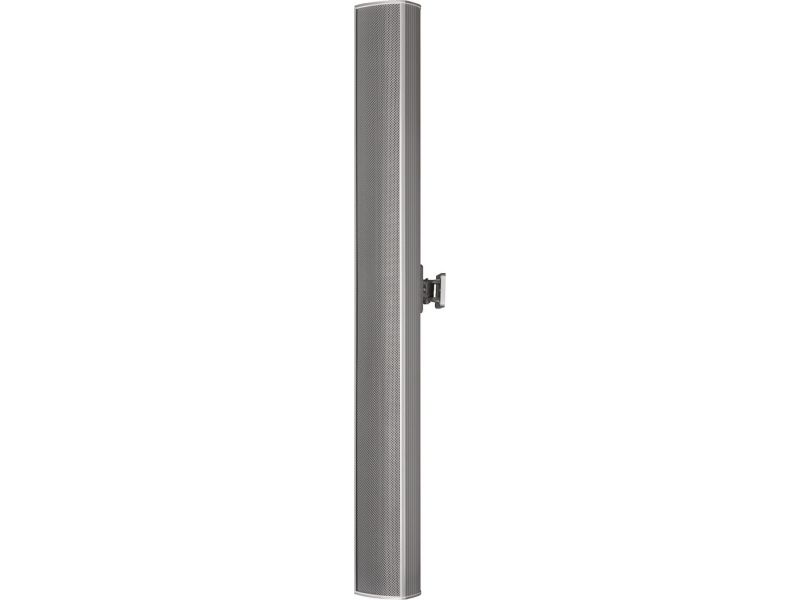

Weatherproof PA column speaker,
with EN 54-24 certification.
  • 100 V transmission technology
  • 8 x 7.7 cm (3") waterproof full range speaker
  • 4 power taps: 50/30/15/7.5 W
  • Connection via ceramic terminals with thermal fuse in the cabinet
  • 2 x PG9 cable gland
  • Robust, plastic-coated aluminium cabinet with front protective grille
  • The speaker complies with British Standard BS 5839, part 8
  • Supplied with plastic wall bracket for pivoting and tilting
Manufacturer information
ic audio GmbH
Boehringerstr. 14a
68307 Mannheim
Germany
info@ic-audio.com

Parametrii

Active/passive passive
Transmission technology 100 V
Total power rating 50 W
Power rating (RMS) 50/30/15/7.5 W

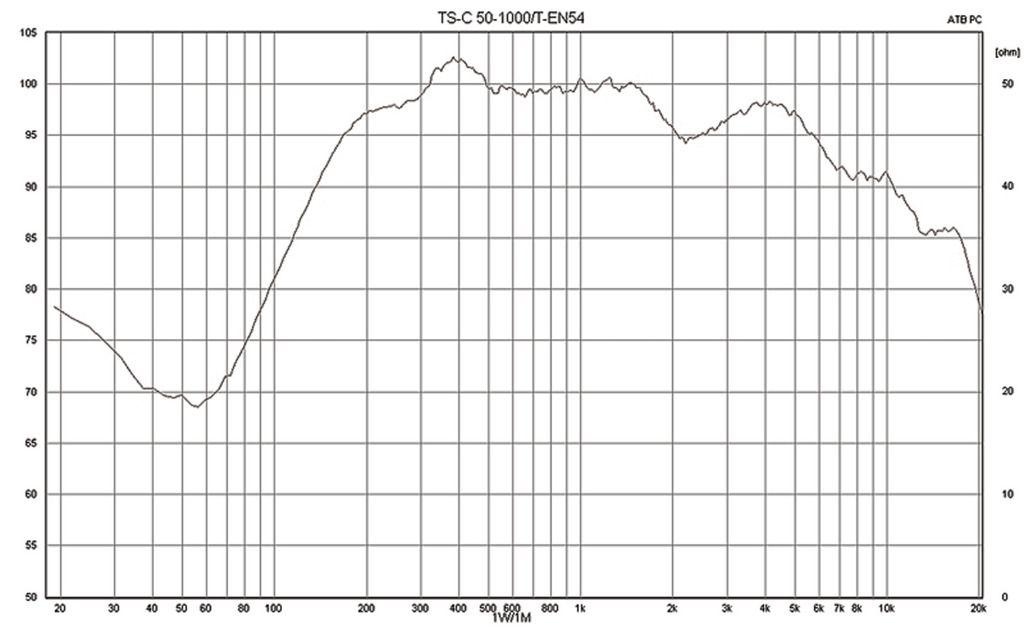

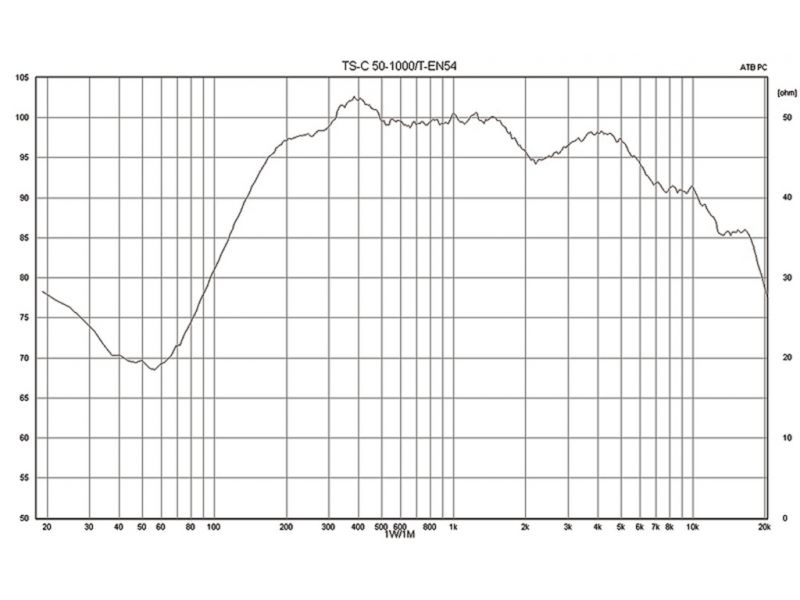

Frequency range 200-20,000 Hz
Full range speaker 8 x 77 mm
Number of speakers 8
Speaker size 7.5 cm (3")
SPL 100 dB/W/m
Max. rated SPL 117 dB

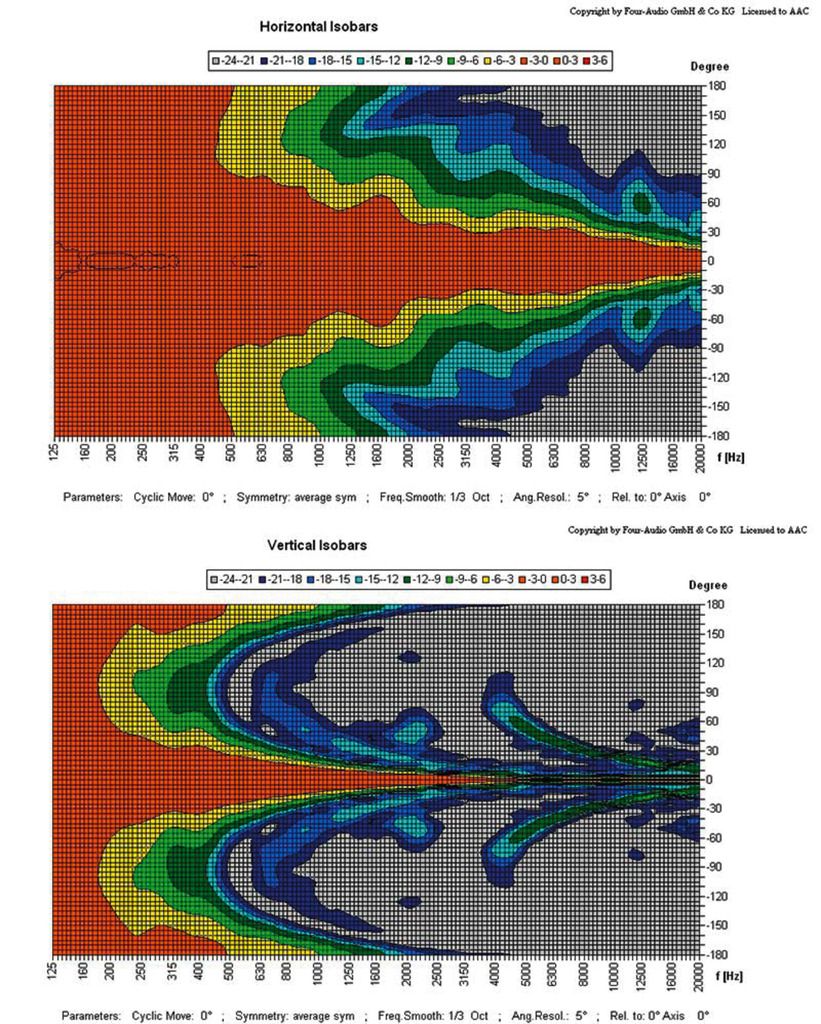

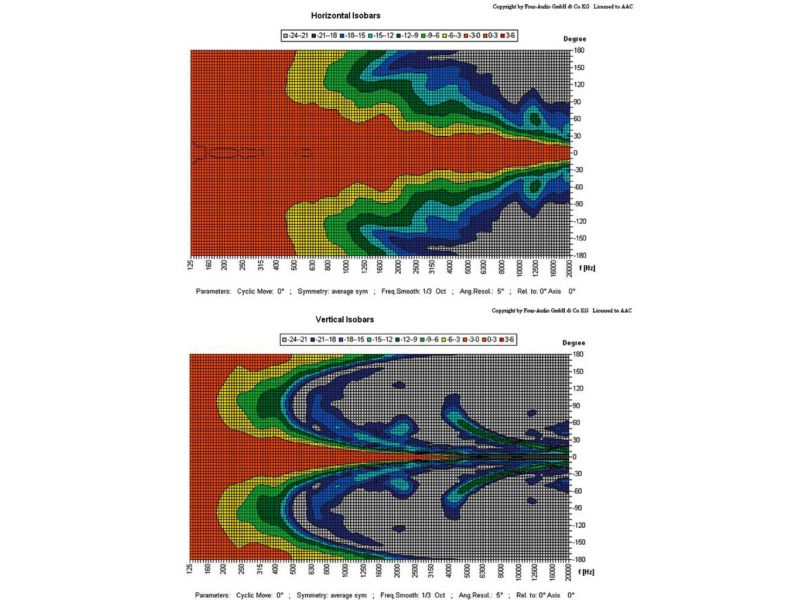

Radiation angle/beam angle H173°/V17°
Radiation angle, horizontal 173°
Radiation angle, vertical 17°
Housing material aluminium
Colour white aluminium, RAL 9006
Mounting device wall bracket
Protection class IP66
Admiss. ambient temp. -20 °C to +90 °C
Dimensions 100 x 971 x 92 mm
Width 100 mm
Height 971 mm
Depth 92 mm
Weight 5.1 kg
Inputs ceramic screw terminals
Packaging dimensions (W x H x L) 0.18 x 0.19 x 1.05 m
Gross weight 5.83 kg
Net weight 5.21 kg

Fisiere de descarcat

Fisa produsului TS-C50-1000/T konformitaetserklaerung-oem
