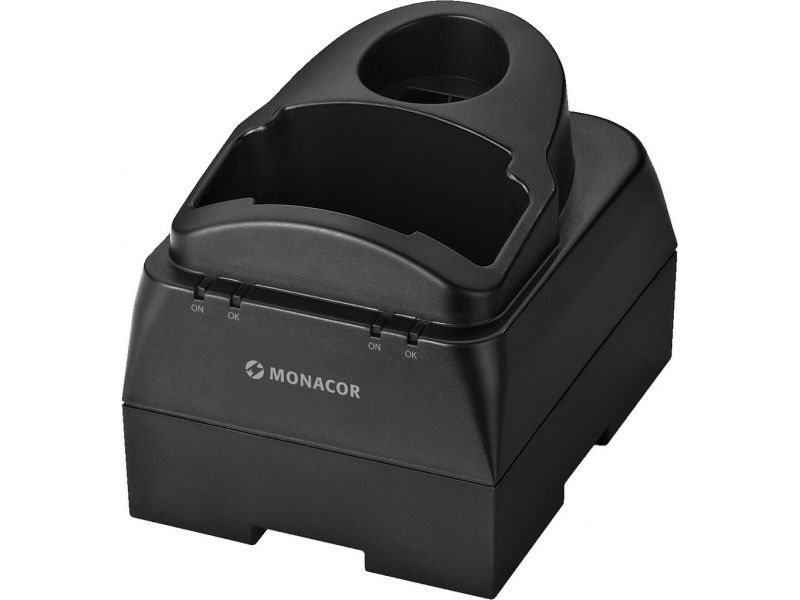

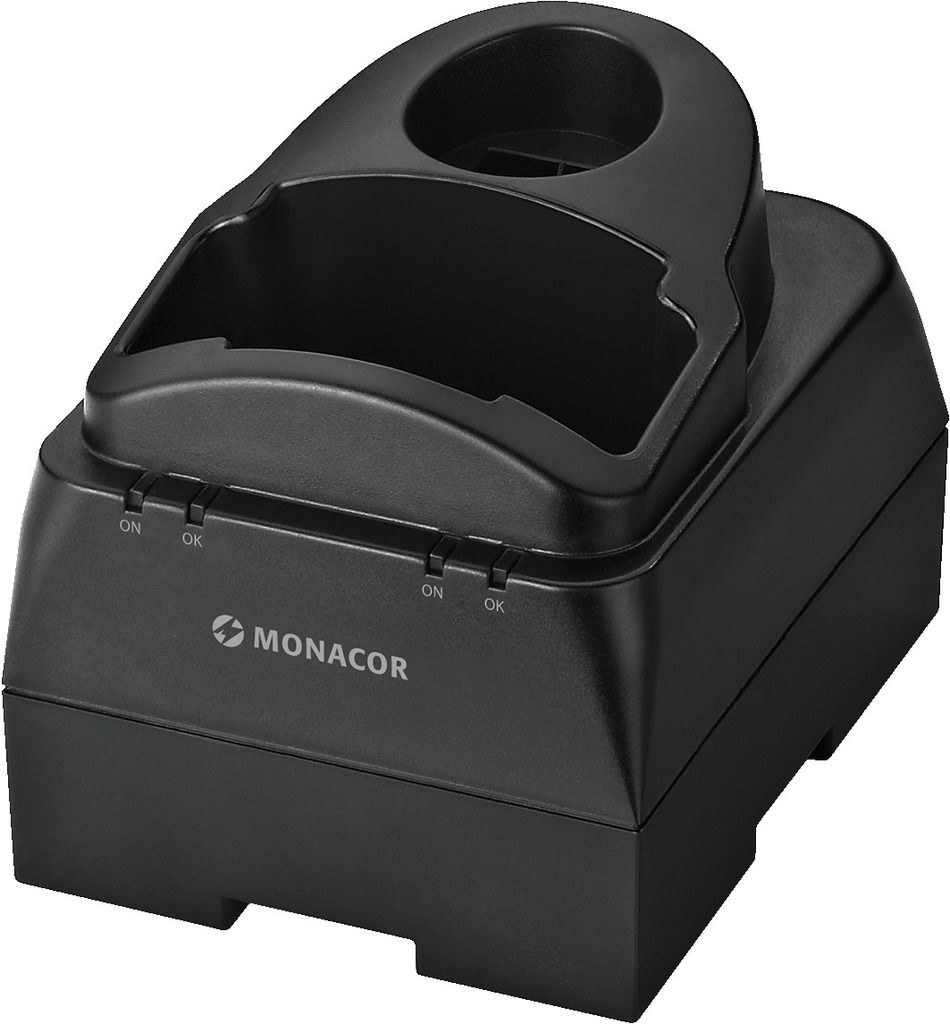

TXA-802PS

Cod EAN: 4007754243550

PWM quick-charge station, for simultaneously charging the rechargeable batteries (NC, NiMH) of one multifrequency pocket transmitter TXA-800HSE or the receiver TXA-800R and one hand-held microphone with multifrequency transmitter TXA-800HT. Average...

Citeste mai mult



TXA-802PS

PWM quick-charge station,
for simultaneously charging the rechargeable batteries (NC, NiMH) of one multifrequency pocket transmitter TXA-800HSE or the receiver TXA-800R and one hand-held microphone with multifrequency transmitter TXA-800HT.
  • Average charging time, depending on capacity and condition of the rechargeable batteries used: approx. 4-5 hours, e.g. for 1,600 mAh rech. batteries
  • Each slot with LED for indicating battery charging status
  • Supplied with plug-in PSU
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Parametrii

Description quick charging station
Nominal value 2 devices
Type PWM
Colour black
Suitable for TXA-800HSE or TXA-800R and TXA-800HT
Power supply via encl. power supply
Admiss. ambient temp. 0-40 °C
Dimensions 84 x 90 x 106 mm
Weight 200 g
Packing unit 1
Packaging dimensions (W x H x L) 0.095 x 0.105 x 0.17 m
Gross weight 0.37 kg
Net weight 0.29 kg
