UB-900I

Cod EAN: 4007754248906

Antenna booster, for UHF PLL receivers. Power supply via UHF PLL receivers of the UF/US series and IN series or via active antenna splitter UA-960 DC feed-through output for cascading up to 2 x UB-900I max. Ideally suited for mobile applications, c...

Citeste mai mult

Intreaba despre produs
Cumpara acum

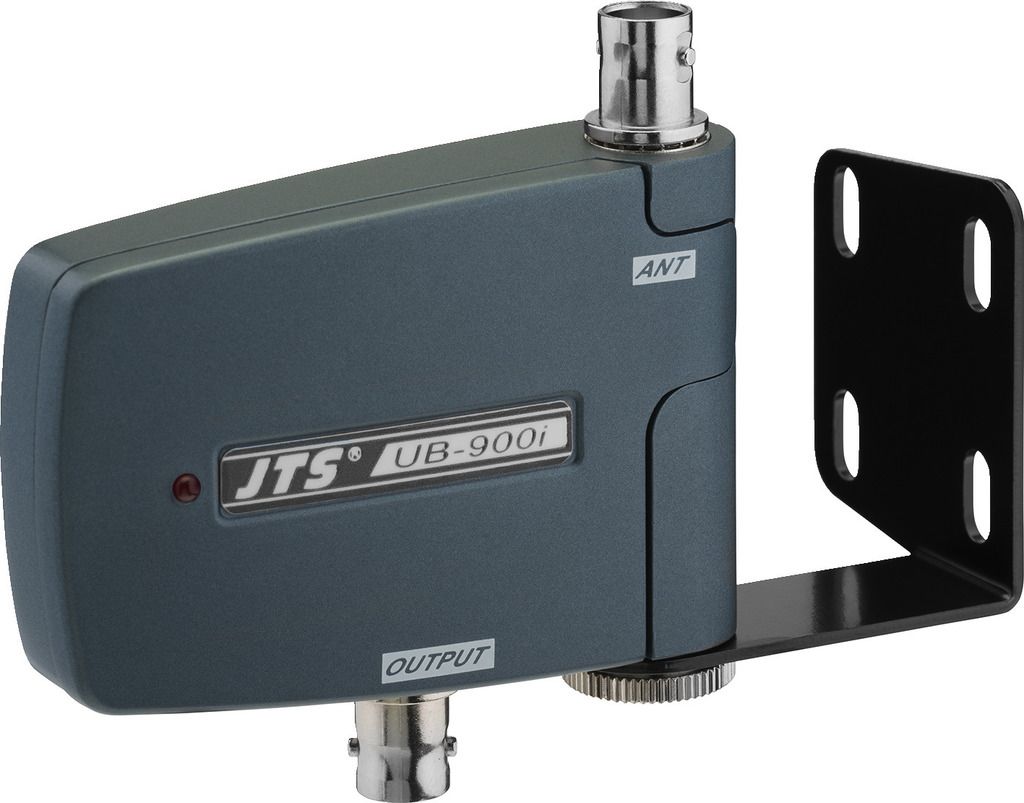

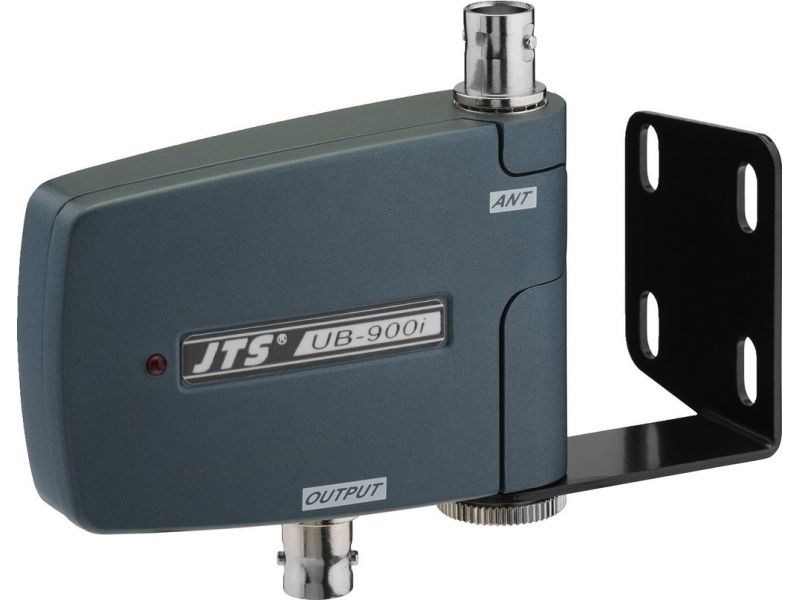

UB-900I

Antenna booster,
for UHF PLL receivers.
  • Power supply via UHF PLL receivers of the UF/US series and IN series or via active antenna splitter UA-960
  • DC feed-through output for cascading up to 2 x UB-900I max.
  • Ideally suited for mobile applications, can be mounted onto microphone stand with 16 mm (⅝") thread

Diversity operation: one booster is required for each antenna connected!
Manufacturer information:
JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Parametrii

Frequency range 470-960 MHz
Active/passive active
Antenna gain 10 dB
Operating voltage DC 8-12 V
Support 9 mm (⅜") or 16 mm (⅝"),mounting bracket
Weight 180 g
Connection BNC

Fisiere de descarcat

Fisa produsului UB-900I konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
