ULM-164/SW
Cod EAN: 4007754182781
Universal line mixer, 6 channels. 6 stereo inputs/mono inputs 2 stereo outputs, independent of each other (master 1 via RCA and 6.3 mm jack), 1 mono output 3-way equalizer LED VU meter, switchable for both outputs Clip LED for each channel Balance...

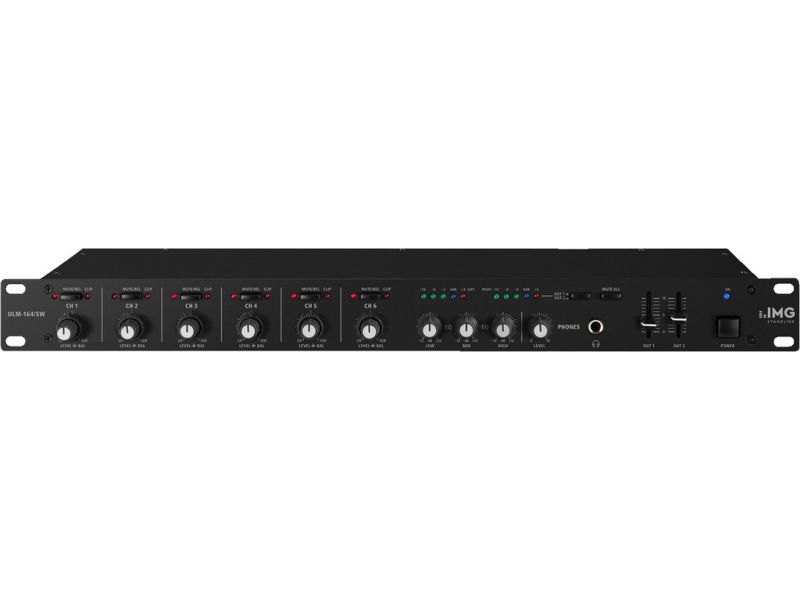

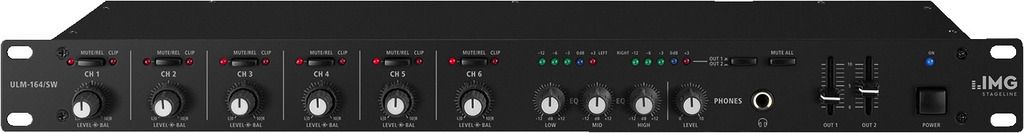

ULM-164/SW
Universal line mixer,
6 channels.

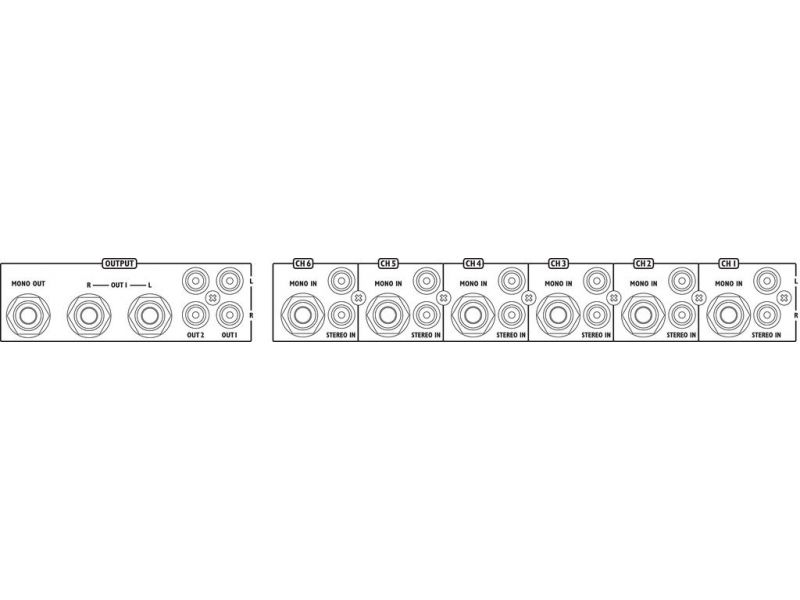

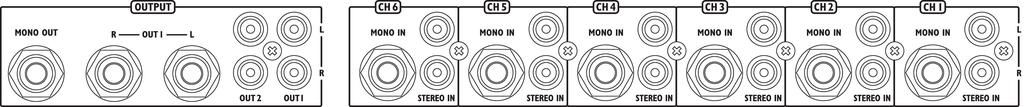

- 6 stereo inputs/mono inputs
- 2 stereo outputs, independent of each other (master 1 via RCA and 6.3 mm jack), 1 mono output
- 3-way equalizer
- LED VU meter, switchable for both outputs
- Clip LED for each channel
- Balance controls with centre click for the stereo input channels
- Extended muting function
- Adjustable headphone output
- 482 mm (19") rack installation, 1 RU
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Parametrii
| No. of channels | 6 |
| No. of inputs | 12 |
| Line input | 150 mV/50 kΩ (stereo), 6 x RCA L/R 150 mV/25 kΩ (mono), 6 x 6.3 mm jack, unbal. |
| Master output | 1 V/600 Ω (stereo), 2 x RCA (1 x 6.3 mm) L/R 2 V/600 Ω (mono), 1 x 6.3 mm jack |
| Headphones | ≥ 8 Ω, 1 x 6.3 mm jack |
| Frequency range | 20-20,000 Hz |
| THD | 0.05% |
| S/N ratio | 69 dB, unweighted |
| Equalizer bass | ±12 dB/80 Hz |
| Equalizer midrange | ±12 dB/1 kHz |
| Equalizer treble | ±12 dB/10 kHz |
| Power supply | ˜ 230 V/50 Hz/10 VA |
| Mains voltage | ~ 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 10 VA |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 482 x 48 x 175 mm, 1 RS |
| Width | 482 mm |
| Height | 48 mm |
| Depth | 175 mm |
| Rack units, RU | 1 |
| Weight | 2.3 kg |
| Packaging dimensions (W x H x L) | 0.18 x 0.047 x 0.482 m |
| Gross weight | 3.035 kg |
| Net weight | 2.32 kg |
