WAP-5
Cod EAN: 4007754217155
Waistband amplifier with line input Supplied with a high-sensitivity electret headband microphone For general mobile speech applications, e.g. lectures and training sessions, sporting events, sales events With adjustable waist strap 7 W amplifier wit...

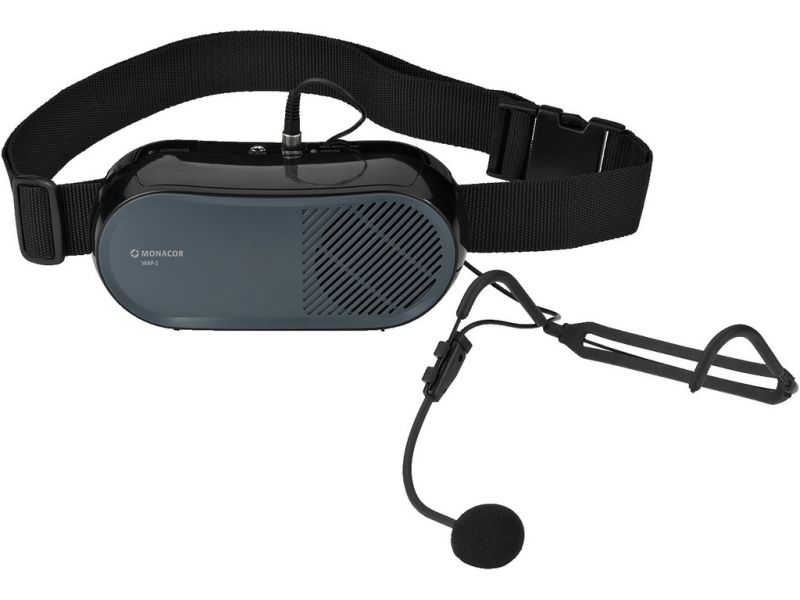

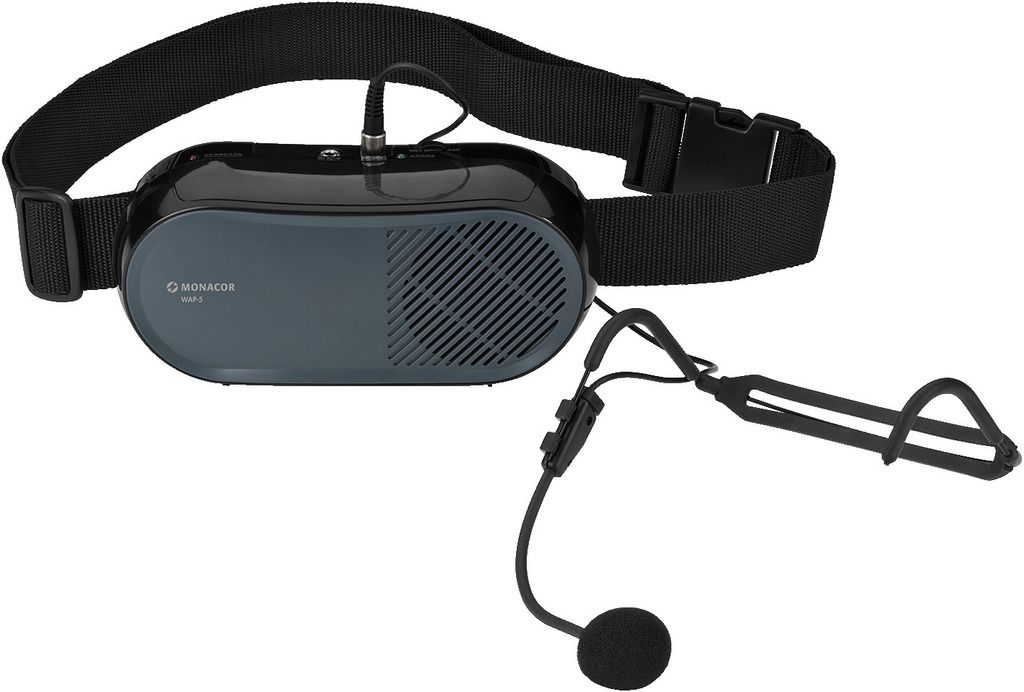

WAP-5
Waistband amplifier with line input
- Supplied with a high-sensitivity electret headband microphone
- For general mobile speech applications, e.g. lectures and training sessions, sporting events, sales events
- With adjustable waist strap
- 7 W amplifier with volume control
- Additional line input (3.5 mm jack) for external audio sources, e.g. MP3 player
- Battery operation/rech. battery operation, charging of the optional rechargeable batteries via supplied plug-in charger, removal of batteries not required
- Operating time with fully charged batteries: approx. 6-8 hours
- Power supply: DC 9 V (6 x battery AA size)
- Supplied w/o batteries/rech. batteries
Do not connect the plug-in charger to the voice amplifier when using standard batteries!
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
Remove the rechargeable batteries or batteries if the device is not in use for a longer period of time (e.g. more than a week). This avoids possible damage through leaking batteries/rechargeable batteries.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Batteries and rechargeable batteries must not be disposed of with household waste. They must be disposed of in accordance with local regulations for hazardous waste.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
Remove the rechargeable batteries or batteries if the device is not in use for a longer period of time (e.g. more than a week). This avoids possible damage through leaking batteries/rechargeable batteries.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Batteries and rechargeable batteries must not be disposed of with household waste. They must be disposed of in accordance with local regulations for hazardous waste.
Parametrii
| Rated power (PRMS) | 7 W (mains operation), 6 W (battery) |
| Peak output power | 10 W (mains operation), 8 W (battery) |
| Frequency range | 100-12,000 Hz |
| Inputs | 2 x 3.5 mm jack |
| Max. SPL | 95 dB |
| Power supply | via encl. power supply or 6 x batt. AA size |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 190 x 90 x 55 mm |
| Weight | 290 g |
| Connections | 1 x 3.5 mm jack (mic), 1 x 3.5 mm jack (line) |
