WAP-8
Cod EAN: 4007754275063
Portable voice amplifier Scope of delivery: 1 electret headband microphone, 1 mini electret microphone, 1 voice amplifier, 2 microphone windshields, 1 line connection cable, 1 plug-in charger and 1 carrying strap, 1 transport bag. For general mobil...

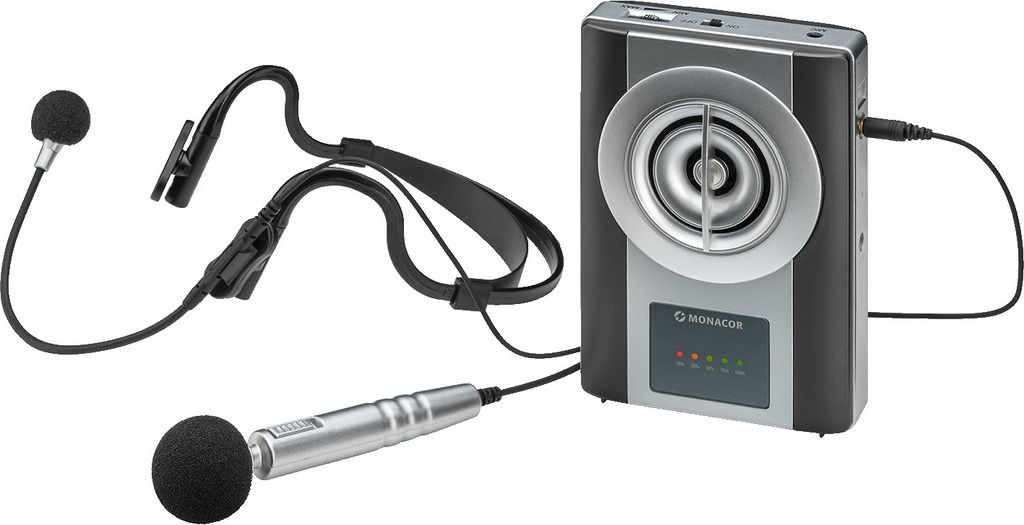

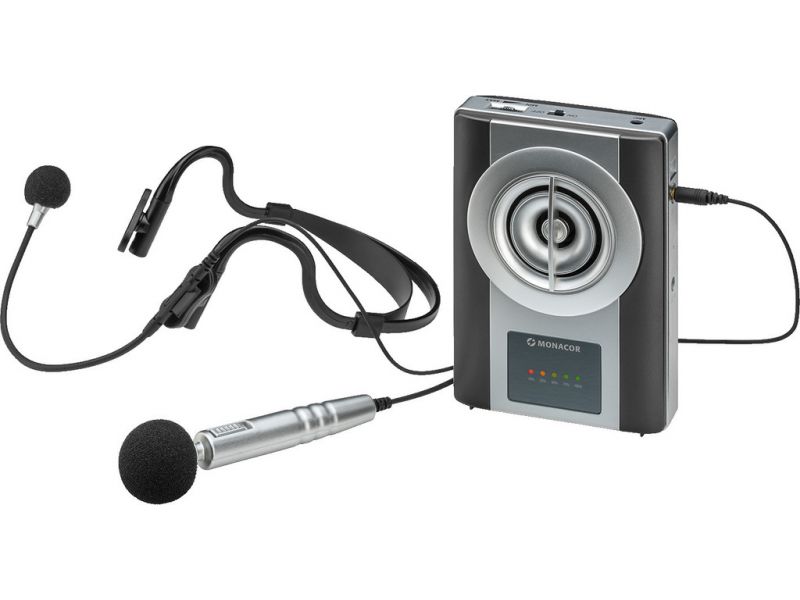

WAP-8
Portable voice amplifier
Scope of delivery: 1 electret headband microphone, 1 mini electret microphone, 1 voice amplifier, 2 microphone windshields, 1 line connection cable, 1 plug-in charger and 1 carrying strap, 1 transport bag.
- For general mobile speech applications, e.g. lectures and training sessions, sales events
- Suitable for general applications due to versatile wearing options
- 6 W amplifier with volume control
- Additional line input (3.5 mm jack) for external audio sources, e.g. MP3 players and laptops
- Built-in rech. lithium polymer battery ( DC7.4 V/2000 mAh), with LED status indication, charging of the rechargeable batteries via supplied plug-in charger
- Very long operating time of up to 20 hours with fully charged battery
- Connection cable 801TG with 3.5 mm plug is available at option for certain JTS headband microphones
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Warning and Safety Instructions
The device is supplied with dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Risk of electric shock!
Do not use this device and disconnect it immediately from the power supply if the device or the power supply cable is visibly damaged, if a defect might have occurred after the device was dropped or suffered a similar accident, if malfunctions occur. Any repairs must be carried out by specialists.
The product is suitable for indoor use only. Protect it against dripping water, splash water and high air humidity (admissible ambient temperature range is 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
The heat generated in the device must be dissipated by air circulation. Never cover the air vents of the housing.
If the device is to be put out of operation definitely, dispose of the product in accordance with local regulations.
Never put (rechargeable) batteries in the household waste. Always dispose of the batteries in accordance with local regulations.
Do not use this device and disconnect it immediately from the power supply if the device or the power supply cable is visibly damaged, if a defect might have occurred after the device was dropped or suffered a similar accident, if malfunctions occur. Any repairs must be carried out by specialists.
The product is suitable for indoor use only. Protect it against dripping water, splash water and high air humidity (admissible ambient temperature range is 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
The heat generated in the device must be dissipated by air circulation. Never cover the air vents of the housing.
If the device is to be put out of operation definitely, dispose of the product in accordance with local regulations.
Never put (rechargeable) batteries in the household waste. Always dispose of the batteries in accordance with local regulations.
Parametrii
| Rated power (PRMS) | 4 W |
| Peak output power | 6 W |
| Frequency range | 100-10,000 Hz |
| Inputs | 3.5 mm jack |
| THD | 0.3% |
| Max. SPL | 82 dB |
| Power supply | 7.4 V rech. lithium polymer battery |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 90 x 130 x 30 mm |
| Weight | 288 g |
| Connections | 1 x 3.5 mm jack (mic), 1 x 3.5 mm jack (line) |
