WAVE-12A

Cod EAN: 4007754273991

Pure Entertainment! The PA speaker systems of the WAVE series impress with a great sound and an attractive price. They are suitable for smaller to medium-sized function rooms and are the perfect starting equipment for entry-level DJs. The plastic cab...

Citeste mai mult

Intreaba despre produs
Cumpara acum


WAVE-12A

Pure Entertainment!
The PA speaker systems of the WAVE series impress with a great sound and an attractive price. They are suitable for smaller to medium-sized function rooms and are the perfect starting equipment for entry-level DJs. The plastic cabinets of contemporary design are also lightweight and easy to use. Thus, they are ideally suited for mobile applications.

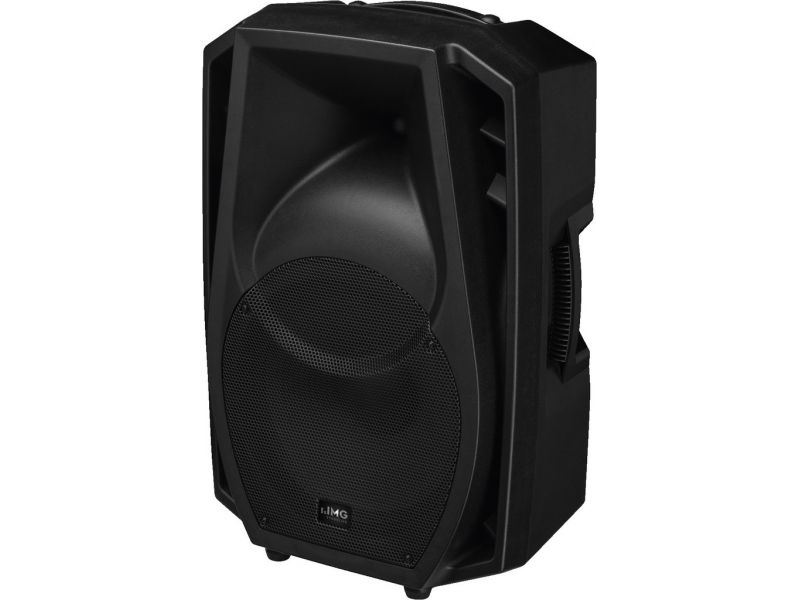

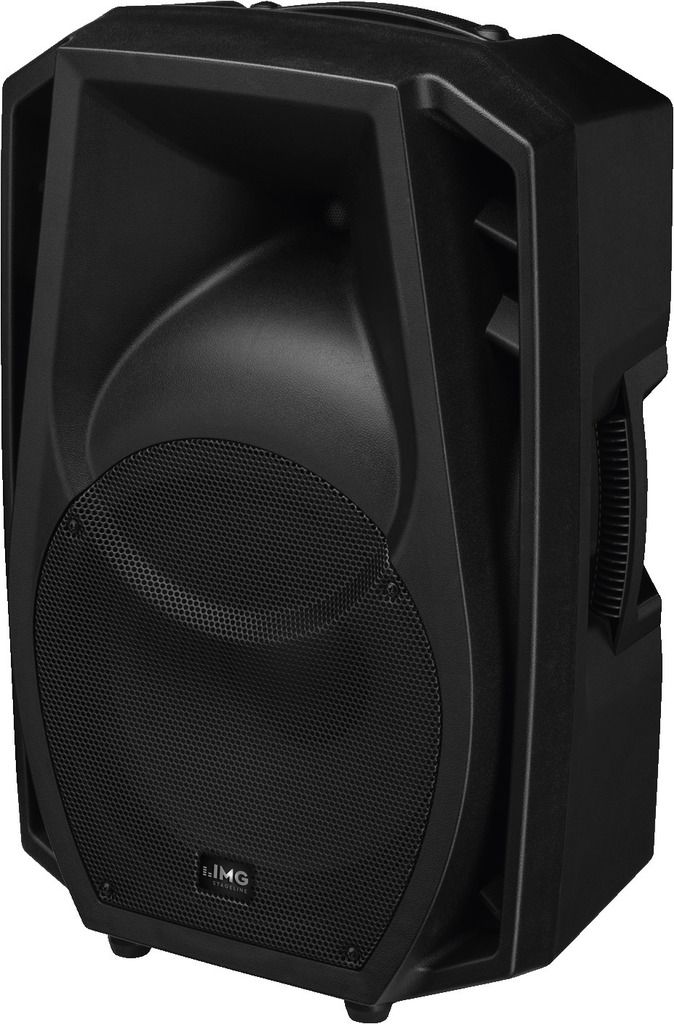

Active full range speaker system, 350 W
  • Compact 12/2 full range bass-reflex system with plastic cabinet
  • 30 cm (12") bass speaker and 25 mm (1") horn tweeter with 34 mm (1 ⅜") voice coil
  • Integrated MP3 player with USB/SD slot
  • Integrated 5-band equalizer for sound adjustment
  • Bluetooth receiver with TWS (True Wireless Stereo)
  • Infrared remote control

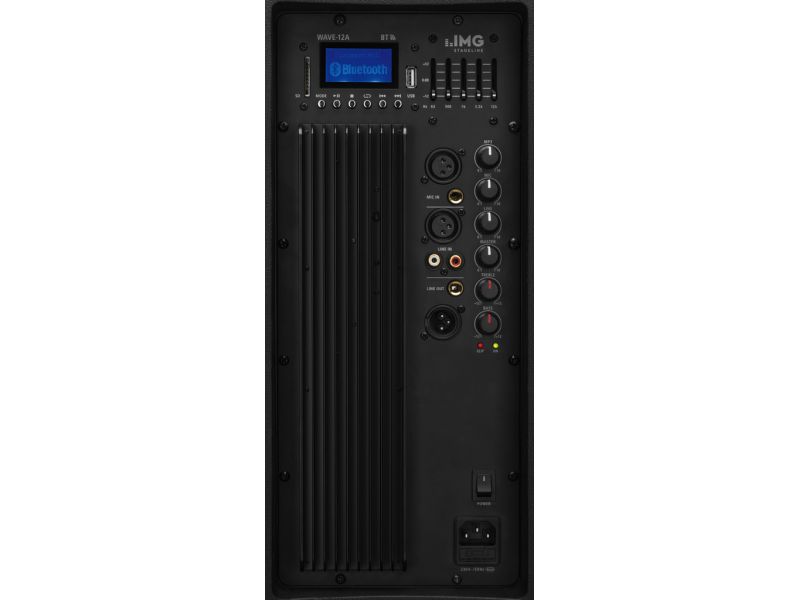

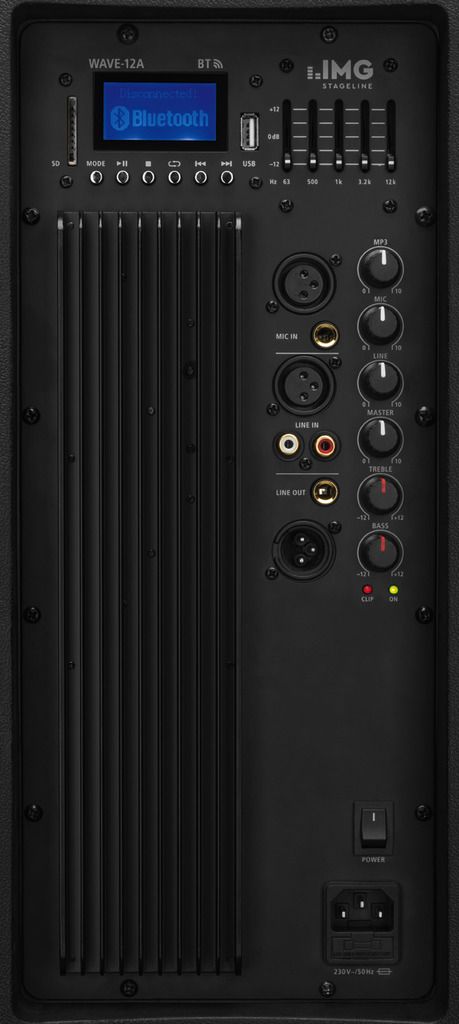

  • Balanced mic input via XLR jack or 6.3 mm jack
  • Line input via RCA jack or XLR jack
  • 2-way tone control for treble and bass
  • Mix out via XLR jack or 6.3 mm jack
  • M8 threaded inserts for mounting support
  • Stand sleeve
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety and warning notices
The appliance is supplied with life-threatening mains voltage. Therefore, never tamper with it yourself and do not insert anything into the ventilation openings. There is a risk of electric shock.
Do not operate the appliance and disconnect the mains plug from the socket immediately if there is visible damage to the appliance or the mains cable, if a defect is suspected after a fall or similar, or if malfunctions occur. Always return the appliance to a specialist workshop for repair.
Only use the device indoors and protect it from dripping and splashing water, high humidity and heat (permissible operating temperature range 0 - 40 °C).
Never set the speaker volume very high. High volumes can damage your hearing in the long term!
Never pull the mains plug out of the socket by the cable, always grasp the plug.
If the appliance is to be taken out of service for good, hand it over to a local recycling centre for environmentally friendly disposal.

Parametrii

Active/passive active
Transmission technology wireless/cable
Total output power 350 W
Power rating (RMS) 200 W
Frequency range 55-20,000 Hz
Input signal 250 mV/7 kΩ (line, XLR, bal.), 150 mV/16 kΩ (line, RCA), 9.5 mV/0.8 kΩ (mic, XLR, bal.), 9.5 mV/0.8 kΩ (mic, 6.3 mm jack)
System 12/2 full range bass-reflex
Bass speaker 30 cm (12") bass speaker
Tweeter 25 mm (1") horn tweeter
Number of speakers 2
Speaker size 30 cm (12")
SPL 95 dB/W/m
Max. rated SPL 119 dB
Radiation angle/beam angle H: 90°/V: 60°
Radiation angle, horizontal 90°
Radiation angle, vertical 60°
Housing material plastic
Colour black
Mounting device M8 threaded inserts, stand sleeve
Admiss. ambient temp. 0-40 °C
Power supply ˜ 230 V/50 Hz/370 VA
Dimensions 390 x 610 x 340 mm
Width 390 mm
Height 610 mm
Depth 340 mm
Weight 16 kg
Inputs XLR or RCA L/R (line) XLR or 6.3 mm jack (mic)
Outputs XLR, bal. (parallel line out)
Packaging dimensions (W x H x L) 0.43 x 0.66 x 0.41 m
Gross weight 17.35 kg
Net weight 15.9 kg

Fisiere de descarcat

Fisa produsului WAVE-12A konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
