WDR-130

Cod EAN: 4007754429657

PA ceiling loudspeaker 100 volt transmission technology Speaker (13 cm) with high sound pressure and very good transmission range Moisture-protected speaker cone Quick mounting device Metal housing with metal protective grille 3 power taps via pressu...

Citeste mai mult

Intreaba despre produs
Cumpara acum


WDR-130

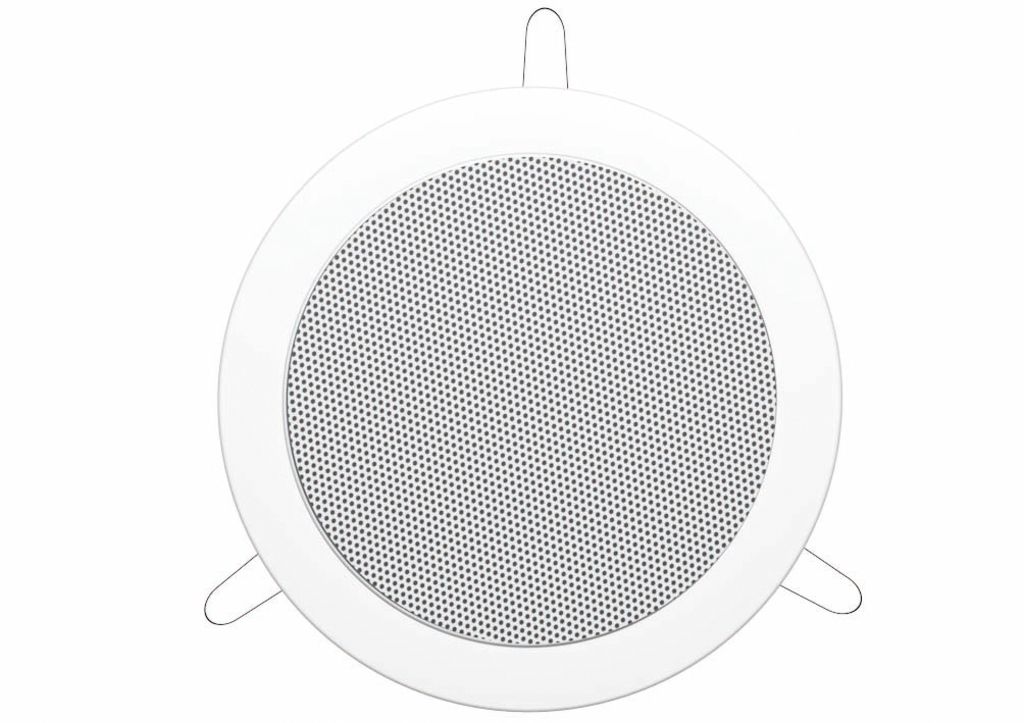

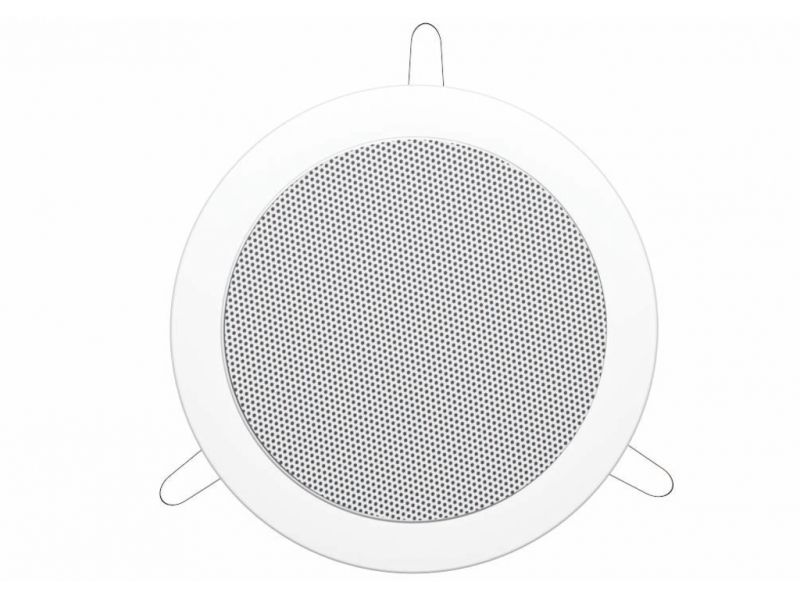

PA ceiling loudspeaker
  • 100 volt transmission technology
  • Speaker (13 cm) with high sound pressure and very good transmission range
  • Moisture-protected speaker cone
  • Quick mounting device
  • Metal housing with metal protective grille
  • 3 power taps via pressure terminals
  • Ball impact resistance test according to DIN 18 032, part 3
Manufacturer information:
PÖSCHEL ETG e.K.
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de

Parametrii

Transmission technology 100 V
Frequency range 70-19,000 Hz
Power rating (RMS) 6/3/1.5 W
SPL 93 dB/W/m
Max. rated SPL 101 dB
Radiation angle, horizontal 180°
Radiation angle, vertical 180°
Mounting cutout Ø 140-150 mm
Dimensions Ø 167 mm x 62 mm
Outside diameter Ø 167 mm
Width Ø 167 mm
Height Ø 167 mm
Depth 62 mm
Colour white, RAL 9010
Protective class IP54
Weight 0.85 kg
Packing unit 1
Type of speaker 130
Packaging dimensions (W x H x L) 0.187 x 0.187 x 0.075 m
Gross weight 1 kg
Net weight 0.9 kg
