WDR-245-A/B-F-EN-10

Cod EAN: 4007754429558

PA A/B ceiling loudspeaker with EN 54-24 certification with A/B loudspeaker distribution in accordance with EN 60849 and DIN VDE 0833-4. 100 V transmission technology 2 independent speaker systems 2 separate full-range speakers (10 cm) with very hi...

Citeste mai mult

Intreaba despre produs
Cumpara acum


WDR-245-A/B-F-EN-10

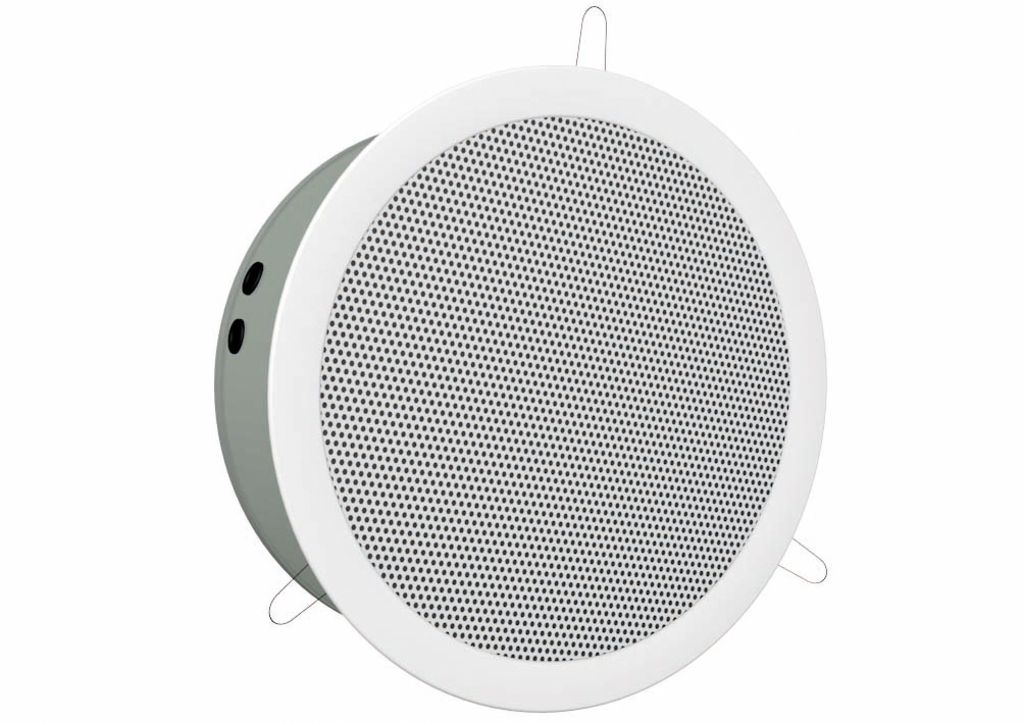

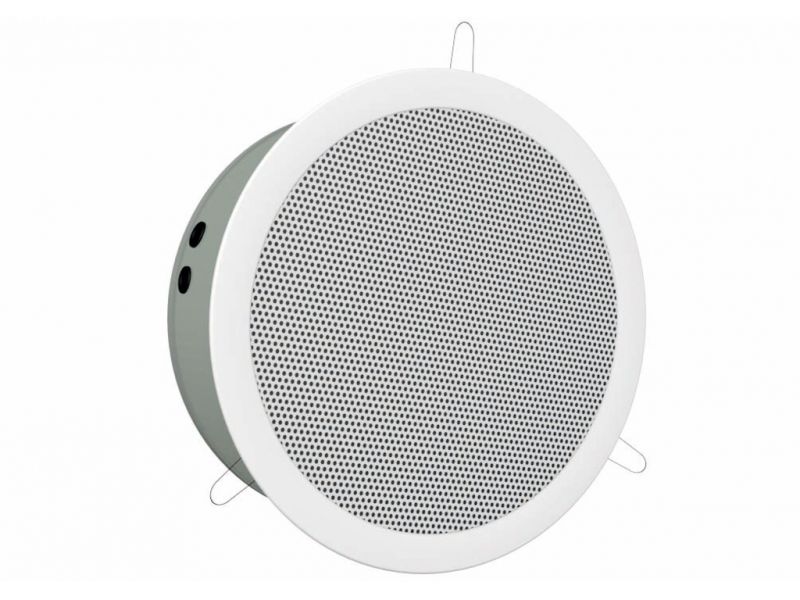

PA A/B ceiling loudspeaker
with EN 54-24 certification with A/B loudspeaker distribution in accordance with EN 60849 and DIN VDE 0833-4.
  • 100 V transmission technology
  • 2 independent speaker systems
  • 2 separate full-range speakers (10 cm) with very high efficiency and high maximum volume
  • Metal housing with metal protective grille
  • Fire pot
  • Quick mounting device
  • 3 power taps via WAGO terminals
  • Ball impact safety test according to DIN 18 032, part 3
Manufacturer information:
PÖSCHEL ETG e.K.
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de

Parametrii

Transmission technology 100 V
Frequency range 80-20,000 Hz
Power rating (RMS) 2 x 10/5/2.5 W
SPL 2 x 92 dB (1 W/1 m) 76 dB (EN, 1 W/4 m)
Max. rated SPL 2 x 102 dB (1 m) 87 dB (EN, 4 m)
Radiation angle, horizontal 180° (500 Hz) 180° (1 kHz) 160° (2 kHz) 80° (4 kHz)
Radiation angle, vertical 180° (500 Hz) 180° (1 kHz) 160° (2 kHz) 80° (4 kHz)
Mounting cutout Ø 230 mm
Dimensions Ø 252 mm x 105 mm
Outside diameter Ø 252 mm
Width Ø 252 mm
Height Ø 252 mm
Depth 105 mm
Colour White, RAL 9010
Weight 1.7 kg
Packing unit 1
Type of speaker 200
Packaging dimensions (W x H x L) 0.27 x 0.27 x 0.115 m
Gross weight 1.7 kg
Net weight 1.6 kg

Fisiere de descarcat

Fisa produsului WDR-245-A/B-F-EN-10
