WDW-2000-A/B-EN-10

Cod EAN: 4007754429596

PA A/B wall and ceiling speaker with EN 54-24 certification for evacuation systems with A/B speaker distribution in accordance with EN 60849 and DIN VDE 0833-4. 100 V transmission technology via audio transformer with 2 x 3 power taps 2 separate fu...

Citeste mai mult

Intreaba despre produs
Cumpara acum

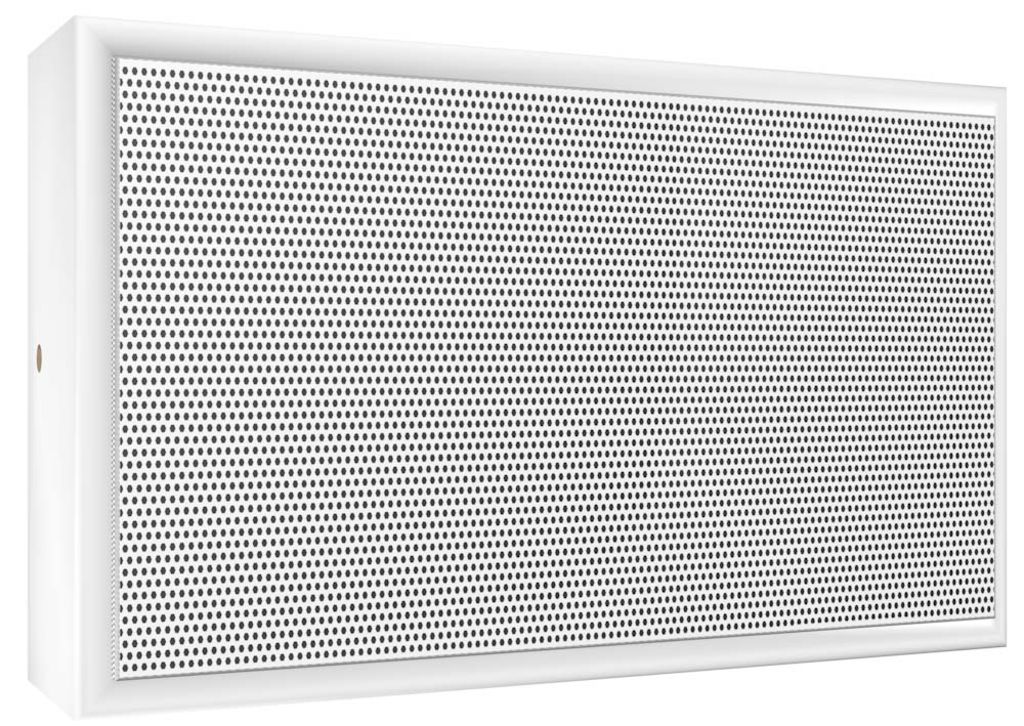

WDW-2000-A/B-EN-10

PA A/B wall and ceiling speaker
with EN 54-24 certification for evacuation systems with A/B speaker distribution in accordance with EN 60849 and DIN VDE 0833-4.
  • 100 V transmission technology via audio transformer with 2 x 3 power taps
  • 2 separate full-range speakers (10 cm), each with its own 10/5/2.5 W transformer
  • Moisture-proof speaker cone
  • Wooden housing with metal protective grille
  • Easy wall mounting using the supplied aluminium bracket and installation material
  • Ball-proof in accordance with DIN 18 032, part 3
Manufacturer information:
PÖSCHEL ETG e.K.
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de

Parametrii

Active/passive passive
Transmission technology 100 V
Total power rating 2 x 10 W
Power rating (RMS) 2 x 10/5/2.5 W
Frequency range 80-20,000 Hz
Number of speakers 2
Speaker size 10 cm (4")
SPL 2 x 92 dB (1 W/1 m) 76 dB (EN, 1 W/4 m)
Max. rated SPL 2 x 102 dB (1 m) 87 dB (EN, 4 m)
Radiation angle/beam angle H180°/V180° (500 Hz) H85°/V85° (1 kHz) H154°/V148° (2 kHz) H82°/V88° (4 kHz)
Radiation angle, horizontal 180° (500 Hz) 83° (1 kHz) 154° (2 kHz) 82° (4 kHz)
Radiation angle, vertical 180° (500 Hz) 85° (1 kHz) 148° (2 kHz) 88° (4 kHz)
Features EN-54-24 certification
Housing material wood
Colour white, RAL 9010
Mounting device aluminium bracket
Protected against ball rebound yes
Dimensions 265 x 165 x 88 mm
Width 265 mm
Height 165 mm
Depth 88 mm
Weight 2.1 kg
Inputs WAGO clamps
Packaging dimensions (W x H x L) 0.268 x 0.168 x 0.92 m
Gross weight 2.2 kg
Net weight 2.1 kg

Fisiere de descarcat

Fisa produsului WDW-2000-A/B-EN-10
