WDW-2000-EN-ABDS

Cod EAN: 4007754429589

PA A/B wall and ceiling speaker with EN 54-24 certification for evacuation systems with A/B speaker distribution in accordance with EN 60849 and DIN VDE 0833-4. 100 V transmission technology via audio transformer with 2 x 3 power taps Full range sp...

Citeste mai mult

Intreaba despre produs
Cumpara acum


WDW-2000-EN-ABDS

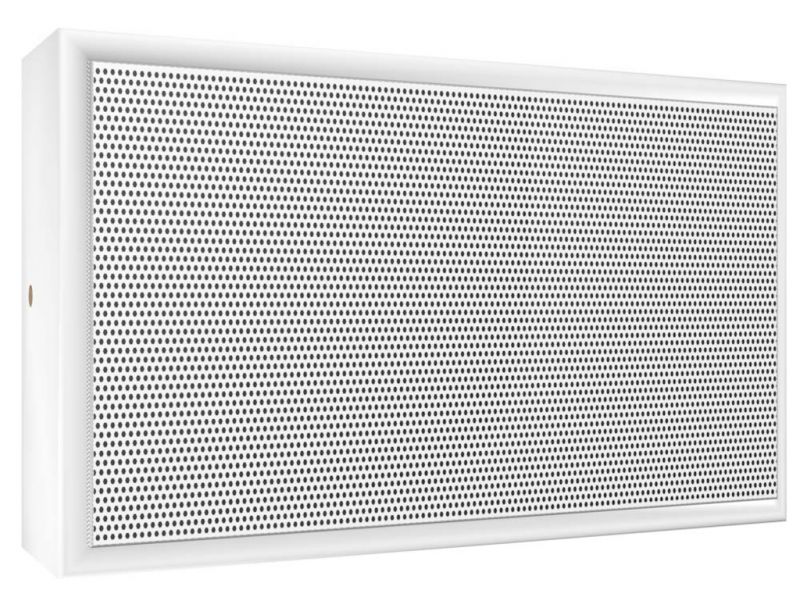

PA A/B wall and ceiling speaker
with EN 54-24 certification for evacuation systems with A/B speaker distribution in accordance with EN 60849 and DIN VDE 0833-4.
  • 100 V transmission technology via audio transformer with 2 x 3 power taps
  • Full range speaker system (13 cm) with dual voice coil for speech and music reproduction
  • Moisture-proof speaker cone
  • Wooden housing with metal protective grille
  • Easy wall mounting using the supplied aluminium bracket and installation material
  • Ball-proof according to DIN 18 032, part 3
Manufacturer information:
PÖSCHEL ETG e.K.
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de

Parametrii

Active/passive passive
Transmission technology 100 V
Total power rating 2 x 6 W
Power rating (RMS) 2 x 6/3/1.5 W
Frequency range 80-19,000 Hz
Number of speakers 1
Speaker size 13 cm (5")
SPL 93 dB (1 W/1 m) 77 dB (EN, 1 W/4 m)
Max. rated SPL 10 dB (1 m) 86 dB (EN, 4 m)
Radiation angle/beam angle H180°/V180° (500 Hz) H80°/V88° (1 kHz) H131°/V126° (2 kHz) H77°/V69° (4 kHz)
Radiation angle, horizontal 180° (500 Hz) 80° (1 kHz) 131° (2 kHz) 77° (4 kHz)
Radiation angle, vertical 180° (500 Hz) 88° (1 kHz) 126° (2 kHz) 69° (4 kHz)
Features EN 54-24 certification
Housing material wood
Colour white, RAL 9010
Mounting device aluminium bracket
Protected against ball rebound yes
Dimensions 265 x 165 x 88 mm
Width 265 mm
Height 165 mm
Depth 88 mm
Weight 1.7 kg
Inputs WAGO clamps
Packaging dimensions (W x H x L) 0.268 x 0.168 x 0.092 m
Gross weight 2 kg
Net weight 1.9 kg

Fisiere de descarcat

Fisa produsului WDW-2000-EN-ABDS
