WDW-330-10

Cod EAN: 4007754429800

PA wall speaker 100 V transmission technology through audio transformer with 3 power taps Full-range speaker (13 cm) with good sound quality and speech intelligibility Moisture-proof speaker cone Design plastic housing (ventilated) with metal protect...

Citeste mai mult

Intreaba despre produs
Cumpara acum


WDW-330-10

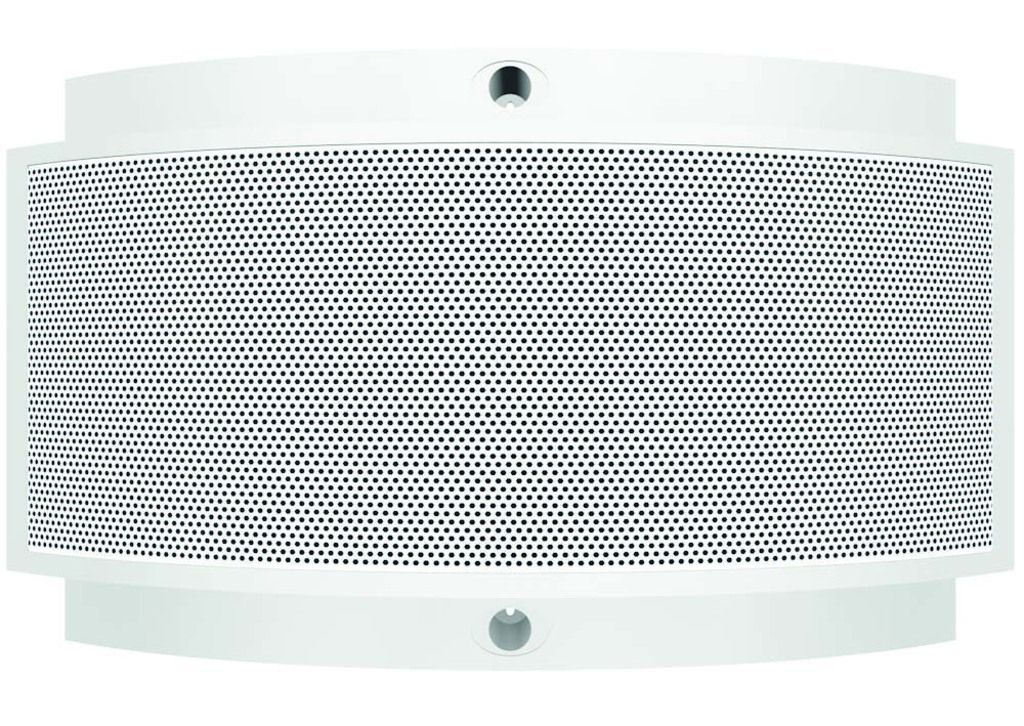

PA wall speaker
  • 100 V transmission technology through audio transformer with 3 power taps
  • Full-range speaker (13 cm) with good sound quality and speech intelligibility
  • Moisture-proof speaker cone
  • Design plastic housing (ventilated) with metal protective grille
  • Horizontal and vertical mounting options thanks to symmetrical design
  • Supplied with mounting screws and screw head covers
Manufacturer information:
PÖSCHEL ETG e.K.
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de

Parametrii

Active/passive passive
Transmission technology 100 V
Total power rating 10 W
Power rating (RMS) 10/5/2.5 W
Frequency range 70-19,000 Hz
Number of speakers 1
Speaker size 13 cm (5")
SPL 93 dB/W/m
Max. rated SPL 103 dB
Radiation angle/beam angle H180°/V180°
Radiation angle, horizontal 180°
Radiation angle, vertical 180°
Housing material ABS
Colour white, RAL 9010
Mounting device mounting screws
Protection class IP54
Dimensions 330 x 240 x 83 mm
Width 330 mm
Height 240 mm
Depth 83 mm
Weight 1.6 kg
Inputs pressure clamps
Packaging dimensions (W x H x L) 0.343 x 0.24 x 0.089 m
Gross weight 1.7 kg
Net weight 1.6 kg
