WDW-330-EN-10

Cod EAN: 4007754429565

PA wall speaker with EN 54-24 certification 100 V transmission technology through audio transformer with 3 power taps Full-range speaker (13 cm) with good sound quality and speech intelligibility Design plastic housing (ventilated) with metal prote...

Citeste mai mult

Intreaba despre produs
Cumpara acum


WDW-330-EN-10

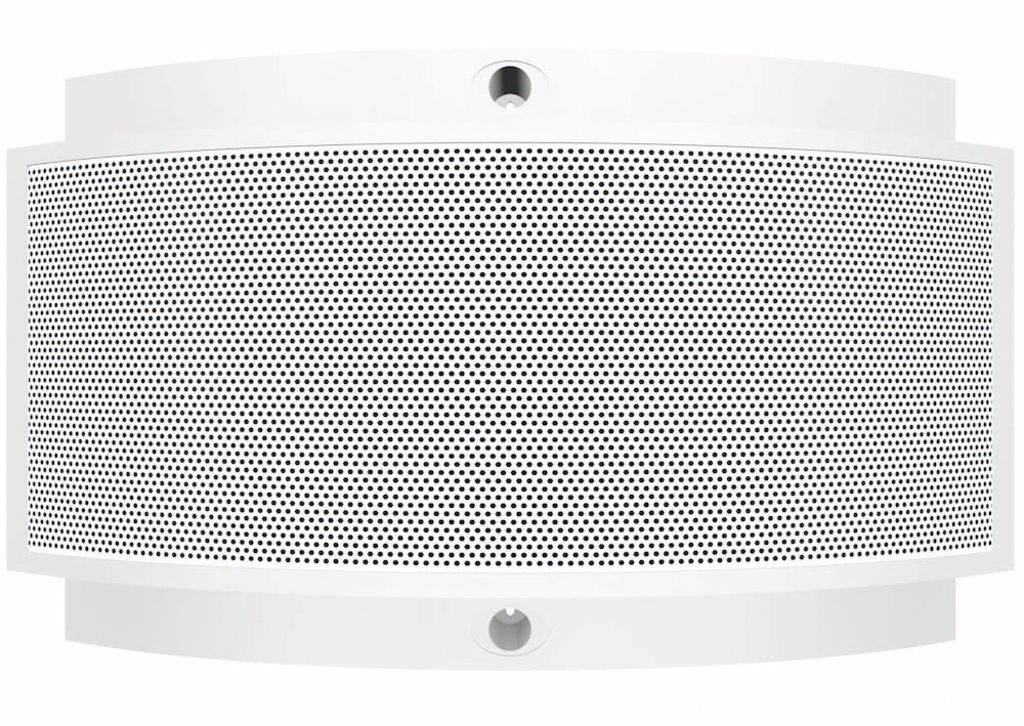

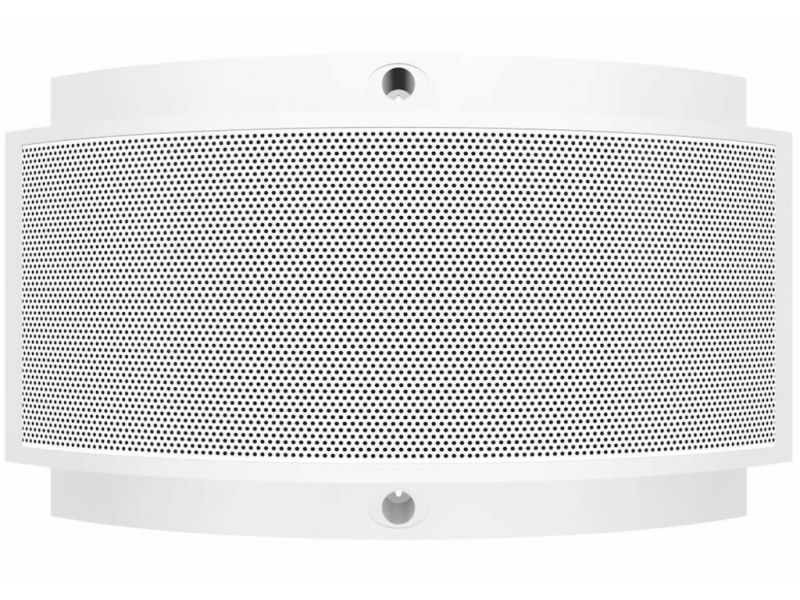

PA wall speaker
with EN 54-24 certification
  • 100 V transmission technology through audio transformer with 3 power taps
  • Full-range speaker (13 cm) with good sound quality and speech intelligibility
  • Design plastic housing (ventilated) with metal protective grille
  • Horizontal and vertical mounting options thanks to symmetrical design
  • Supplied with mounting screws and screw head covers
Manufacturer information:
PÖSCHEL ETG e.K.
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de

Parametrii

Active/passive passive
Transmission technology 100 V
Total power rating 10 W
Power rating (RMS) 10/5/2,5 W
Frequency range 80-19,000 Hz
Number of speakers 1
Speaker size 13 cm (5")
SPL 93 dB (1 W/1 m) 76 dB (EN, 1 W/4 m)
Max. rated SPL 103 dB (1 m) 88 dB (EN, 4 m)
Radiation angle/beam angle H180°/V180° (500 Hz) H180°/V180° (1 kHz) H180°/V1115° (2 kHz) H51°/V68° (4 kHz)
Radiation angle, horizontal 180° (500 Hz) 180° (1 kHz) 180° (2 kHz) 51° (4 kHz)
Radiation angle, vertical 180° (500 Hz) 180° (1 kHz) 115° (2 kHz) 68° (4 kHz)
Features EN 54-24 certification
Housing material ABS
Colour White, RAL 9010
Mounting device Mounting screws
Protection class IP54
Dimensions 330 x 240 x 83 mm
Width 330 mm
Height 240 mm
Depth 83 mm
Weight 1.6 kg
Inputs WAGO terminal block
Packaging dimensions (W x H x L) 0.343 x 0.24 x 0.89 m
Gross weight 1.7 kg
Net weight 1.6 kg

Fisiere de descarcat

Fisa produsului WDW-330-EN-10
