AIRMT-130

Cod EAN: 4007754250268

Air Motion Transformers are a special type of tweeter systems which have been developed by the German physicist Oskar Heil during his research on the characteristics of the human ear. The main feature is a film-covered cone with a special folding whi...

Citeste mai mult

Intreaba despre produs
Cumpara acum

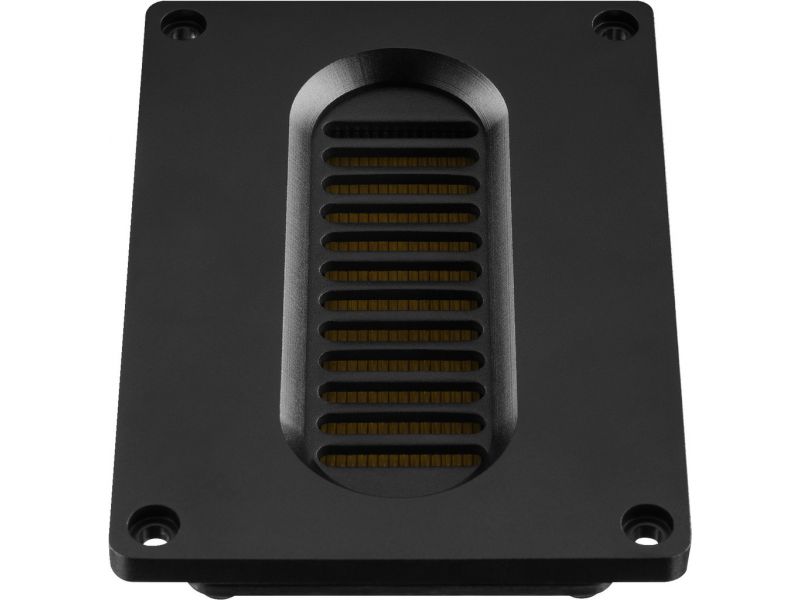

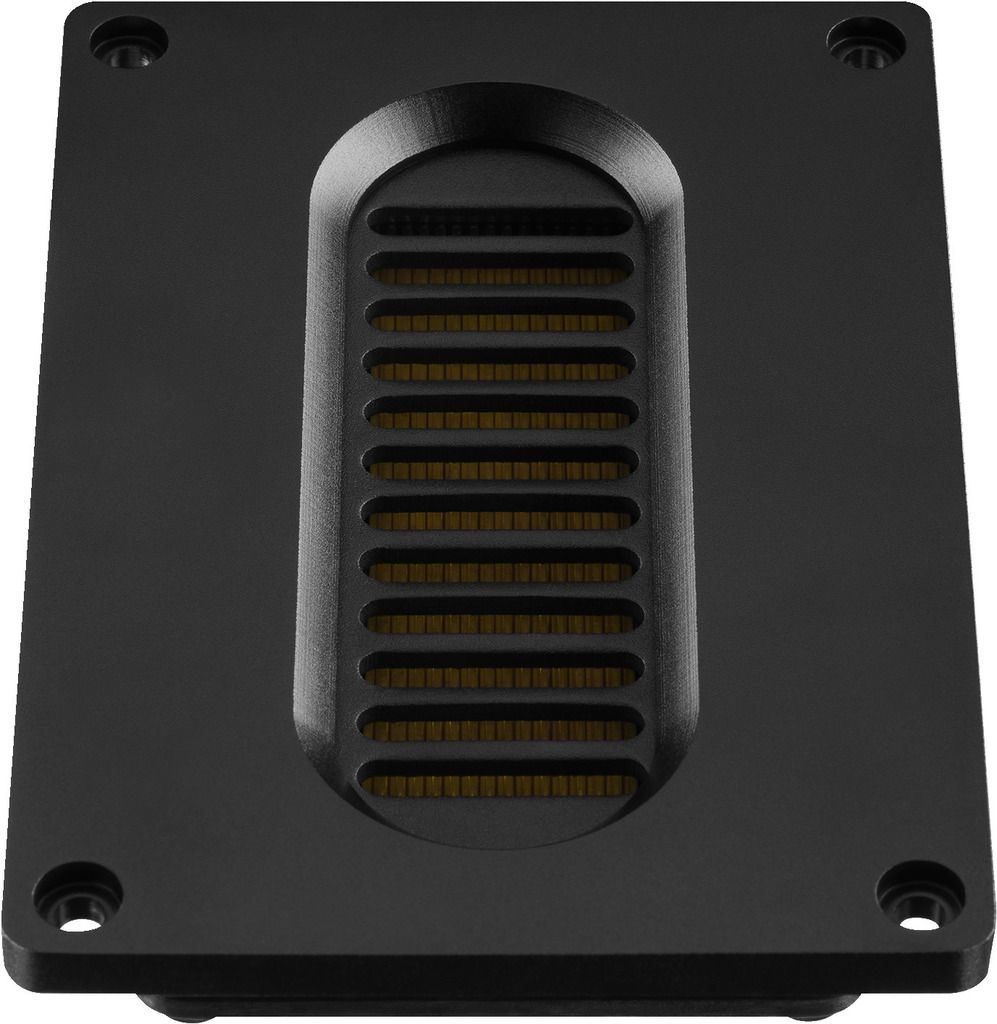

AIRMT-130

Air Motion Transformers
are a special type of tweeter systems which have been developed by the German physicist Oskar Heil during his research on the characteristics of the human ear. The main feature is a film-covered cone with a special folding which vibrates like an accordion when an audio signal is applied. This folding allows to accommodate a large cone area at a minimum of space. The AMTs feature a dynamic sound, an excellent transient response, a high efficiency and a low harmonic distortion.
There are 2 STL files available for the AIRMT-130 for 3D printed waveguides.
High-end Air Motion Transformer tweeter, 60 W, 8 Ω
  • Tweeter based on the principle of Air Motion Transformer
  • High-performance neodymium magnet system
  • Fine, dynamic and brilliant reproduction of the high frequencies
  • Folded cone made of Kapton and aluminium
  • High power capability and high efficiency
  • For use from 3,000 Hz on
  • Robust aluminium front panel
Klang+Ton 08,09/2016
“AMT of high efficiency for experienced developers.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Impedance (Z) 8 Ω
Transmission technology cable

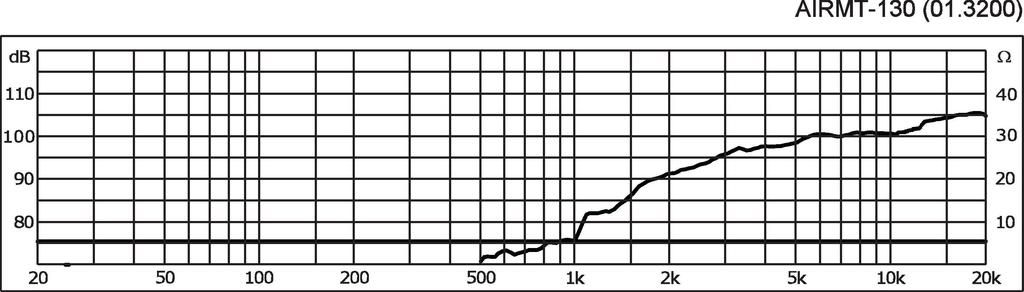

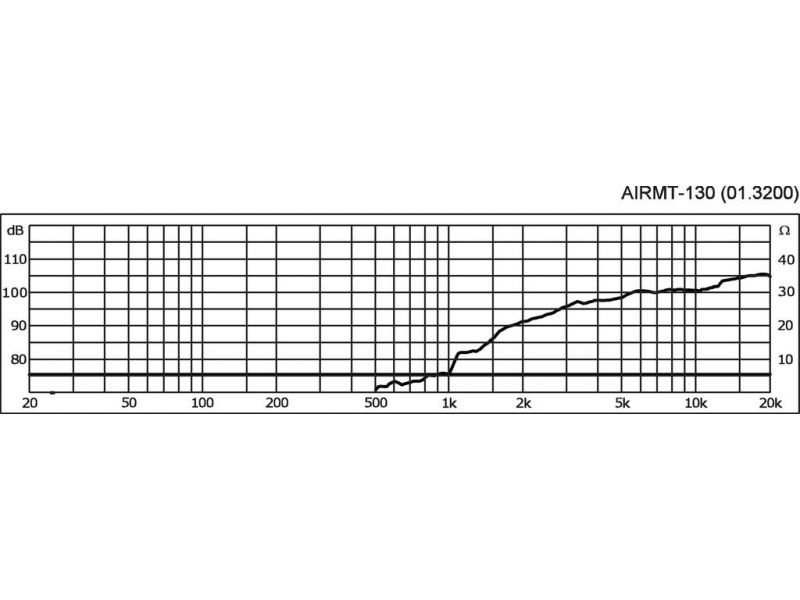

Frequency range 2,500-30,000 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) > 3,000 Hz
Power rating (RMS) 60 W
Peak music power output (MAX) 120 W
SPL 98 dB/W/m
DC resistance (Re) 5.2 Ω
Magnet diameter neodymium rods

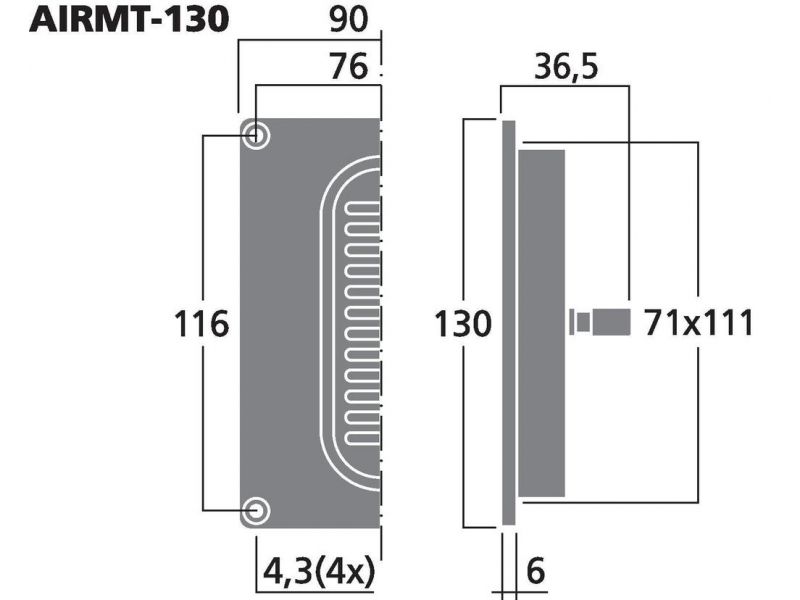

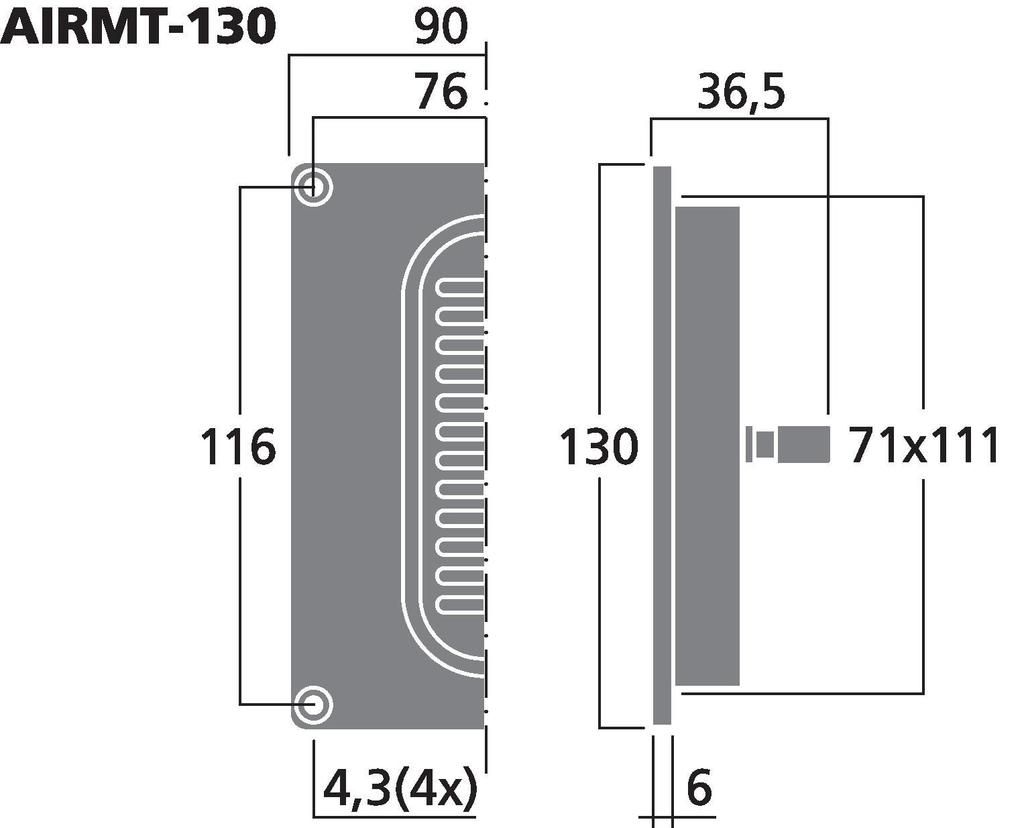

Mounting cutout 71 x 111 mm
Mounting depth 40 mm
Hole spacing X-axis 76 mm
Hole spacing Y-axis 116 mm
Dimensions 90 x 130 x 43 mm
Outside diameter not applicable
Width 90 mm
Height 130 mm
Depth 43 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.585 kg
Packing unit 1
Type of speaker AMT
Packaging dimensions (W x H x L) 0.105 x 0.05 x 0.155 m
Gross weight 0.635 kg
Net weight 0.585 kg

Fisiere de descarcat

Fisa produsului AIRMT-130 konformitaetserklaerung-ce konformitaetserklaerung-ukca Șablon de imprimare 3d Șablon de imprimare 3d
