AKB-160
Cod EAN: 4007754234237
PA amplifier module, with 100 V output. 1 x 40 W Silent operation due to fanless cooling concept Balanced line input (XLR) and unbalanced line input (RCA) Speaker output via screw terminal Volume control Metal housing with mounting brackets Man...

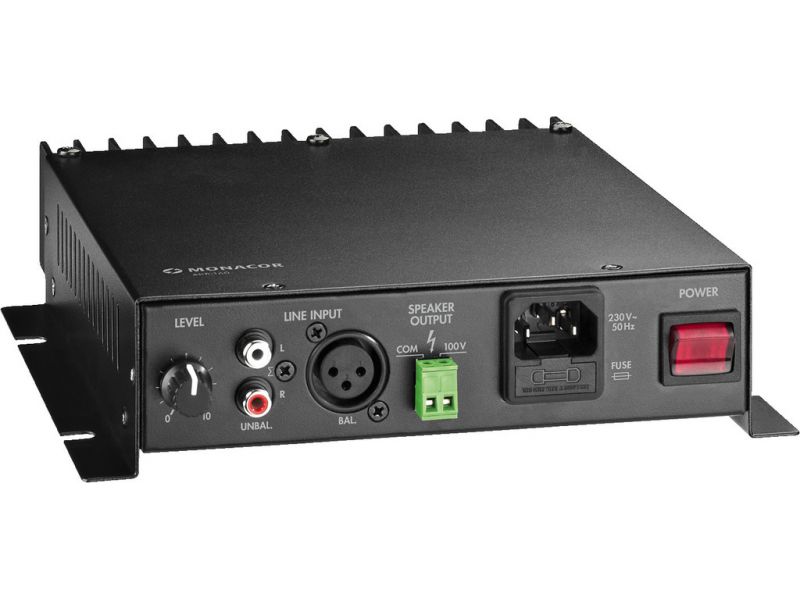

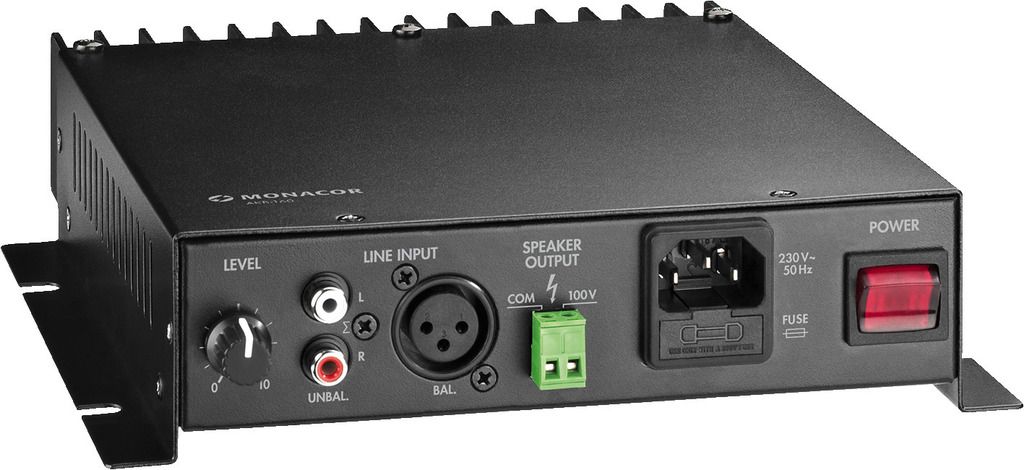

AKB-160
PA amplifier module,
with 100 V output.
- 1 x 40 W
- Silent operation due to fanless cooling concept
- Balanced line input (XLR) and unbalanced line input (RCA)
- Speaker output via screw terminal
- Volume control
- Metal housing with mounting brackets
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
During operation, there may be a hazard of contact with a dangerous voltage of up to 100 V at the speaker terminals. Always switch off the amplifier before making or changing any connections.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
The heat generated inside the unit must be dissipated by air circulation; never cover the air vents of the housing.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
During operation, there may be a hazard of contact with a dangerous voltage of up to 100 V at the speaker terminals. Always switch off the amplifier before making or changing any connections.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
The heat generated inside the unit must be dissipated by air circulation; never cover the air vents of the housing.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Parametrii
| Peak output power | 60 W |
| Power rating | 40 W |
| Power rating at 100 V | 40 W |
| Channels | 1 |
| Inputs | 390 mV/26 kΩ, bal.420 mV/11 kΩ, unbal. |
| Frequency range | 17-20,000 Hz |
| S/N ratio | > 80 dB |
| THD | < 1% |
| Power supply | ˜ 230 V/50 Hz/75 VA |
| Mains voltage | ~ 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 75 VA |
| Admiss. ambient temp. | 0-40 °C |
| Width | 213 mm |
| Height | 55 mm |
| Depth | 238 mm |
| Weight | 3.2 kg |
| Connections | 1 x XLR (line)1 x RCA L/R (line) |
| Packaging dimensions (W x H x L) | 0.29 x 0.11 x 0.305 m |
| Gross weight | 3.6 kg |
| Net weight | 3.23 kg |
