CS-1CH
Cod EAN: 4007754212051
Conference System CS-1 Your opinion will be heard! The control unit CS-1CU, the microphone station for the chairperson CS-1CH and the microphone station for conference delegates CS-1DU together form a conference system with extensive configuration fa...

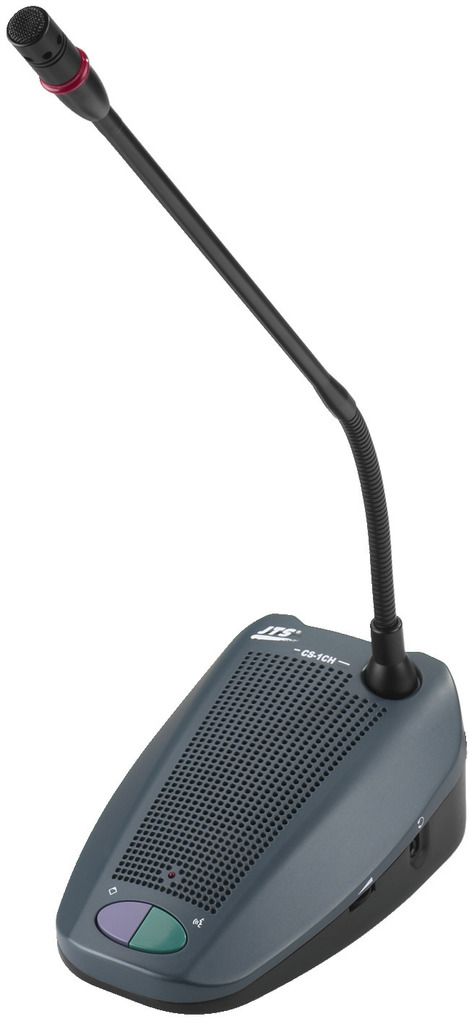

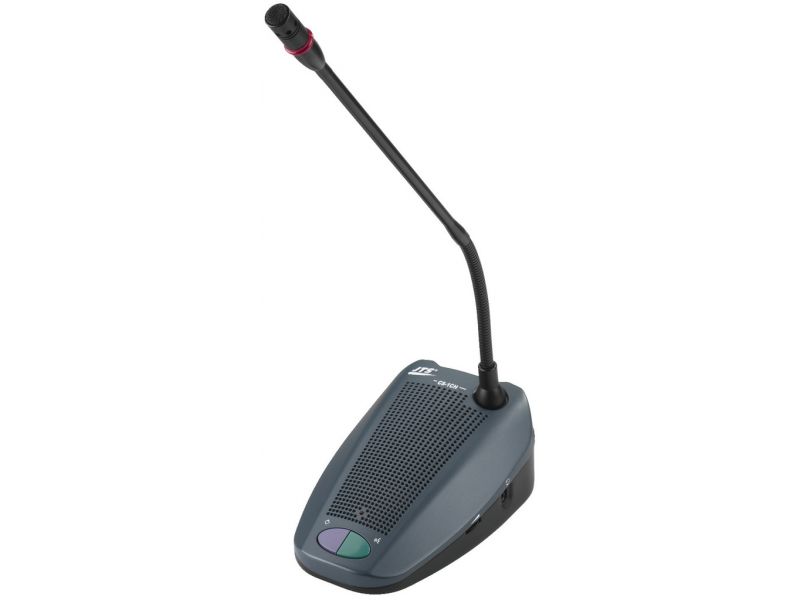

CS-1CH
Conference System CS-1
Your opinion will be heard! The control unit CS-1CU, the microphone station for the chairperson CS-1CH and the microphone station for conference delegates CS-1DU together form a conference system with extensive configuration facilities for maximum flexibility.
Microphone station for chairperson
- Back electret cartridge with cardioid polar pattern, optimised for voice transmissions
- Low-distortion speaker
- Reproduction via optional headphones
- Large function button
- Status displays at microphone and desktop station
- Priority button allows to interrupt an ongoing discussion between conference delegates, alternatively with a chime
AV-views 02/2010
“A solid and reliable conference system which provides a very clear voice transmission.”
Manufacturer information:
JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw
EU-Representative:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety and warning notices
Only use the device indoors and protect it from dripping and splashing water, high humidity and heat (permissible operating temperature range 0 - 40 °C).
Do not operate the appliance if there is visible damage to the appliance, if a defect is suspected after a fall or similar, or if malfunctions occur. Always return the appliance to a specialised workshop for repair.
If the appliance is to be taken out of service permanently, hand it over to a local recycling centre for environmentally friendly disposal.
Do not operate the appliance if there is visible damage to the appliance, if a defect is suspected after a fall or similar, or if malfunctions occur. Always return the appliance to a specialised workshop for repair.
If the appliance is to be taken out of service permanently, hand it over to a local recycling centre for environmentally friendly disposal.
Parametrii
| Description | microphone station for chairperson |
| Transmission method | cable |
| Polar pattern | cardioid |
| System | back electret |
| Audio frequency range | 50-18,000 Hz |
| Power supply | via control unit CS-1CU |
| Gooseneck length | 400 mm |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 115 x 65 x 170 mm (console housing) |
| Weight | 1.1 kg |
| Cable | 2 m |
| Connection | 2 x 3.5 mm jack 1 x 2 m connection cable with 7-pole DIN plug1 x 7-pole DIN jack |
| Packaging dimensions (W x H x L) | 0.16 x 0.14 x 0.41 m |
| Gross weight | 1.552 kg |
| Net weight | 1.132 kg |
