CS-8

Cod EAN: 4007754217957

The Automatic Microphone Mixers of the CS series are THE perfect aid for concepts with multiple microphones, e.g. in conference rooms, churches or language laboratories. The main task of the mixer is to open the respective microphone channel when req...

Citeste mai mult

Intreaba despre produs
Cumpara acum

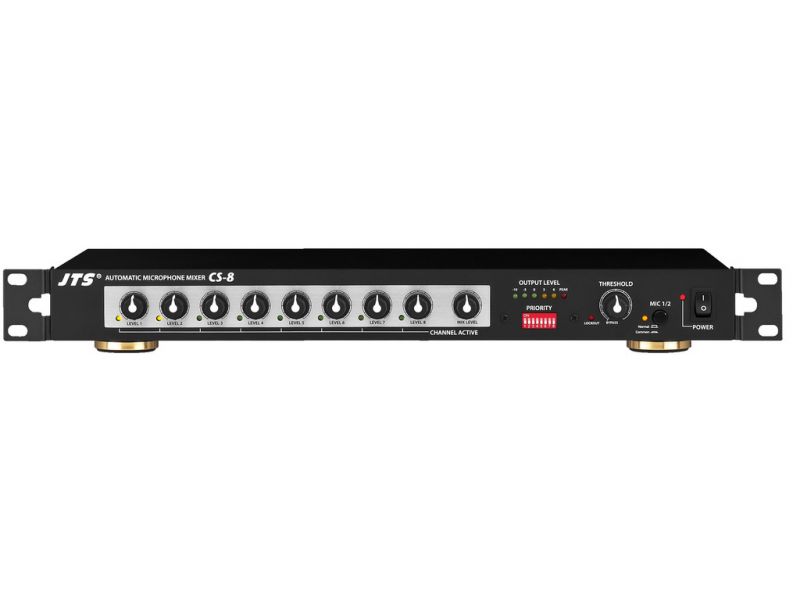

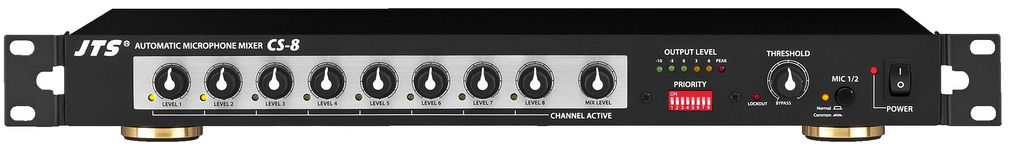

CS-8

The Automatic Microphone Mixers
of the CS series are THE perfect aid for concepts with multiple microphones, e.g. in conference rooms, churches or language laboratories. The main task of the mixer is to open the respective microphone channel when required and to close it again when the speaker has finished the presentation. This intelligent adjustment for the individual microphone channels allows for a silent and precise control which ensures that the audience hears every single word. This greatly improves the overall sound resulting in a clear, transparent reproduction and minimises acoustic feedback and irritating background noise. The CS mixers feature a last-in function in order to maintain a pleasant atmosphere with a soft ambient sound also during the breaks in conversation rather than just cutting off the sound.
Automatic microphone mixer
  • 8 channels
  • 3 operating modes: auto mode, priority or 8/1-channel mixer
  • Balanced XLR inputs, switchable mic/line
  • Additional stereo RCA input
  • 48 V phantom power
  • Mix output, switchable mic/line
  • Trigger outputs for external devices, e.g. warning devices, cameras or speakers
  • Status LEDs
  • Several devices can be combined via link connections (supplied with cable)
  • Desktop metal housing
  • 482 mm (19") rack installation possible with supplied mounting brackets
Manufacturer information:
JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Parametrii

No. of channels 8
No. of inputs 8
Mic input 0.2 mV/4.7 kΩ
Line input 60 mV/20 kΩ
Aux output 1 V/200 Ω
Frequency range 35-20,000 Hz
THD < 0.06%
S/N ratio > 70 dB
Phantom power +48 V
Power supply via encl. plug-in power supply
Admiss. ambient temp. 0-40 °C
Dimensions 420 x 44 x 199 mm
Width 420 mm
Height 44 mm
Depth 199 mm
Weight 2.3 kg
Packaging dimensions (W x H x L) 0.3 x 0.105 x 0.505 m
Gross weight 3.17 kg
Net weight 2.55 kg

Fisiere de descarcat

Fisa produsului CS-8 konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
