IT-12M
Cod EAN: 4007754229417

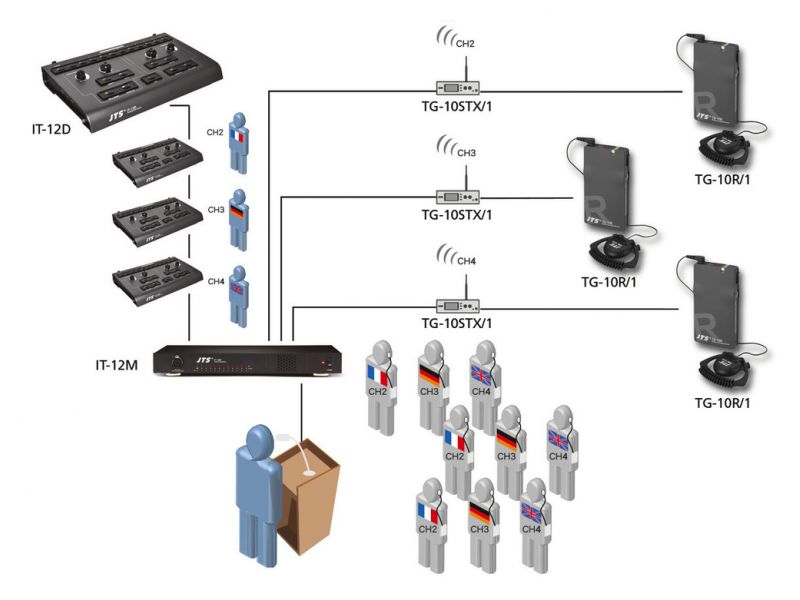

Interpretation system, base unit, for setting up a multilingual interpretation system. 12 languages (floor language/main language and 11 translations via interpretation console IT-12D) Slow-down signal Alarm function, audio message or audio alarm s...

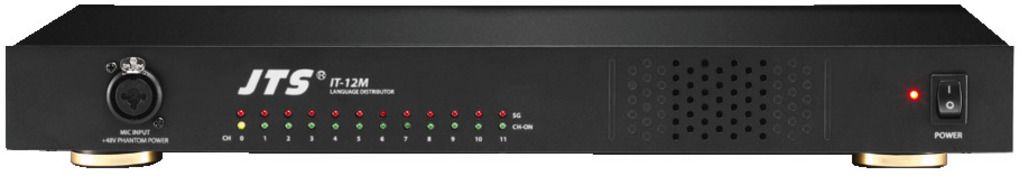

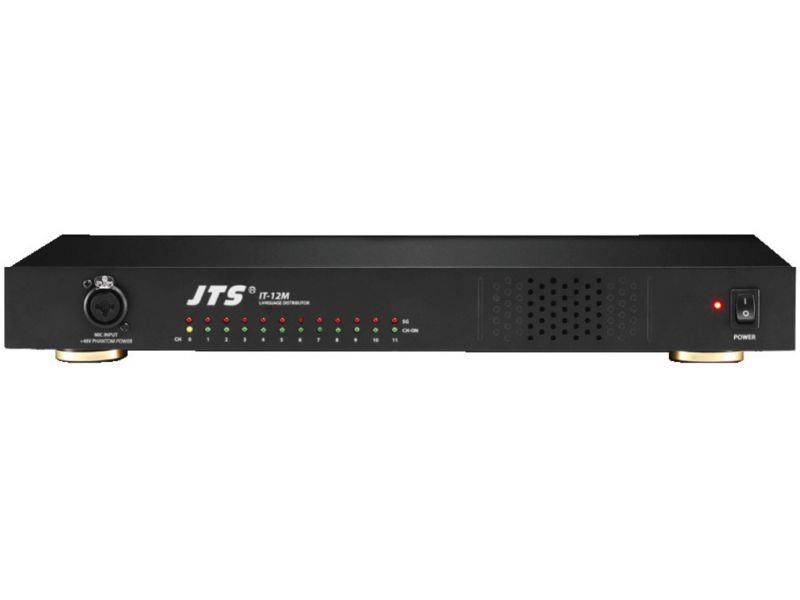

IT-12M
Interpretation system, base unit,
for setting up a multilingual interpretation system.
- 12 languages (floor language/main language and 11 translations via interpretation console IT-12D)
- Slow-down signal
- Alarm function, audio message or audio alarm signal can be fed to each output
- Status LEDs for interpretation channels
- Microphone connection via comb. jack on the front panel
- 48 V phantom power supply
- 12 V power supply connections for wireless transmitters TG-10STX/1, available at option
- 482 mm (19") rack installation with supplied mounting brackets
- Power supply: ˜ 230 V/50 Hz/90 VA
- Dimensions: 423 x 52 x 220 mm
- Weight: 2.6 kg
Manufacturer information:
JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw
EU-Representative:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Parametrii
| Description | interpretation system, base unit |
| Type | 12 languages |
| Colour | black |
| Material | metal |
| Power supply | ˜ 230 V/50 Hz/90 VA |
| Dimensions | 423 x 52 x 220 mm |
| Weight | 2.6 kg |
| Connections | microphone connection (comb. jack),12 V power supply connections for TG-10STX/1 |
| Packing unit | 1 |
| Packaging dimensions (W x H x L) | 0.3 x 0.11 x 0.5 m |
| Gross weight | 3.39 kg |
| Net weight | 2.82 kg |
