AKB-60

Cod EAN: 4007754207095

Active speaker module, mono, 45 W at 4 Ω Active module for activating passive speakers Line input via XLR or RCA Adjustable master output Very well-suited as a measuring amplifier of acoustic analysers Fanless concept with large heat sink Manufa...

Citeste mai mult

Intreaba despre produs
Cumpara acum

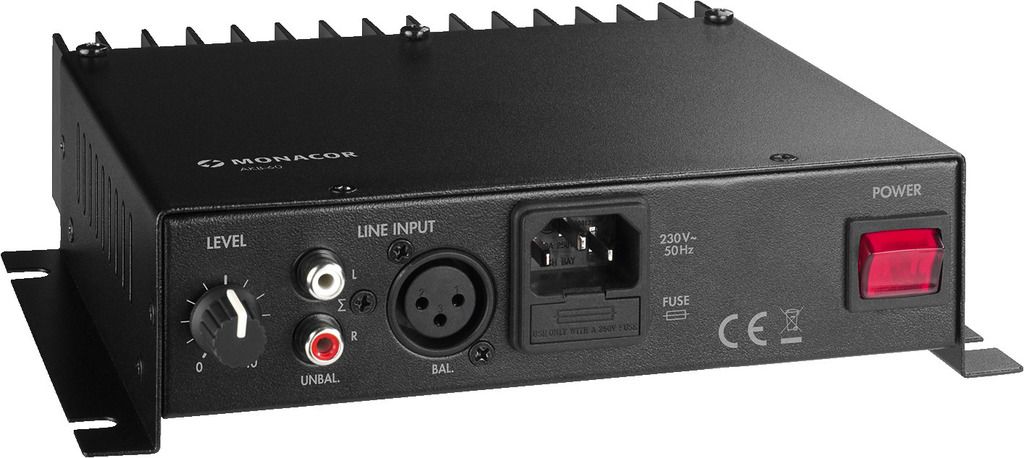

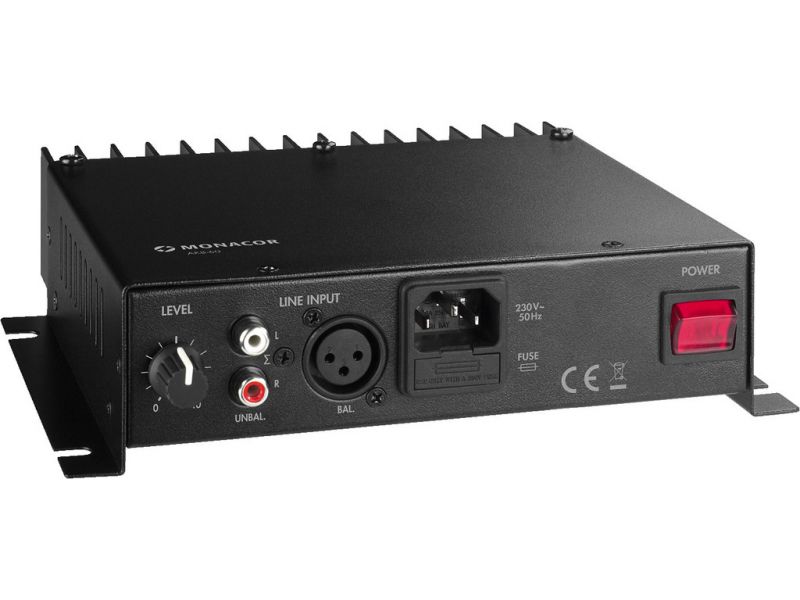

AKB-60

Active speaker module, mono, 45 W at 4 Ω
  • Active module for activating passive speakers
  • Line input via XLR or RCA
  • Adjustable master output
  • Very well-suited as a measuring amplifier of acoustic analysers
  • Fanless concept with large heat sink
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Warning and Safety Instructions
The device is supplied with dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Risk of electric shock!
Do not use this device and disconnect it immediately from the power supply if the device or the power supply cable is visibly damaged, if a defect might have occurred after the device was dropped or suffered a similar accident, if malfunctions occur. Any repairs must be carried out by specialists.
The product is suitable for indoor use only. Protect it against dripping water, splash water and high air humidity (admissible ambient temperature range is 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
The heat generated in the device must be dissipated by air circulation. Never cover the air vents of the housing.
If the device is to be put out of operation definitely, dispose of the product in accordance with local regulations.

Parametrii

Peak output power 60 W
Power rating 45 W
Power rating at 4 Ω 45 W
Power rating at 8 Ω 30 W
Channels 1
Inputs 0.4 V/20 kΩ bal., 11 kΩ unbal.
Frequency range 15-50,000 Hz
S/N ratio > 80 dB
THD < 0.01%
Power supply ˜ 230 V/50 Hz/90 VA
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 90 VA
Admiss. ambient temp. 0-40 °C
Width 212 mm
Height 52 mm
Depth 190 mm
Weight 2.2 kg
Connections 1 x XLR input, bal., 1 x RCA L/R (input), speaker cable (4-8 Ω)
Packaging dimensions (W x H x L) 0.235 x 0.105 x 0.315 m
Gross weight 2.6 kg
Net weight 2.216 kg

Fisiere de descarcat

Fisa produsului AKB-60 konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
