KA-10/1PACK

Cod EAN: 4007754218619

Wireless 16-channel PLL audio transmission system for cameras Consisting of a portable audio transmitter and receiver Carrier frequency range: 863-865 MHz Transmitter and receiver with rechargeable lithium-ion batteries for reducing the weight and to...

Citeste mai mult

Intreaba despre produs
Cumpara acum


KA-10/1PACK

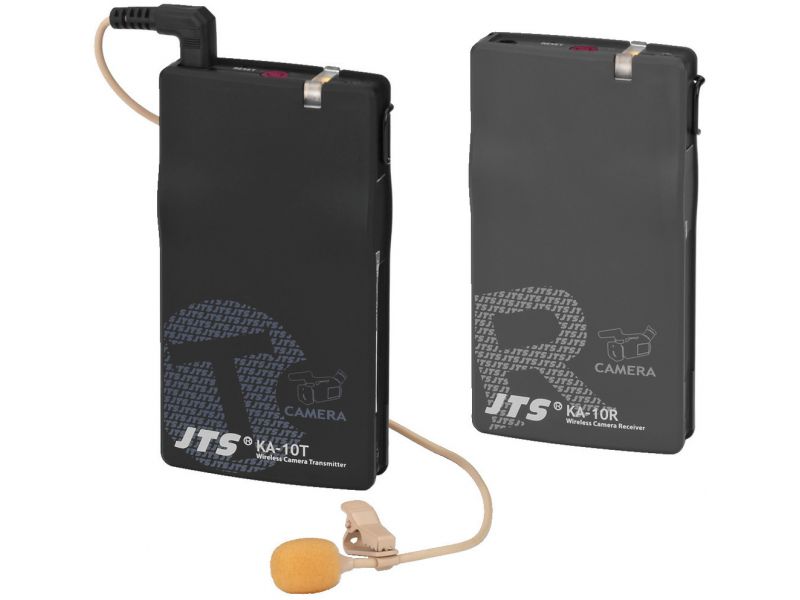

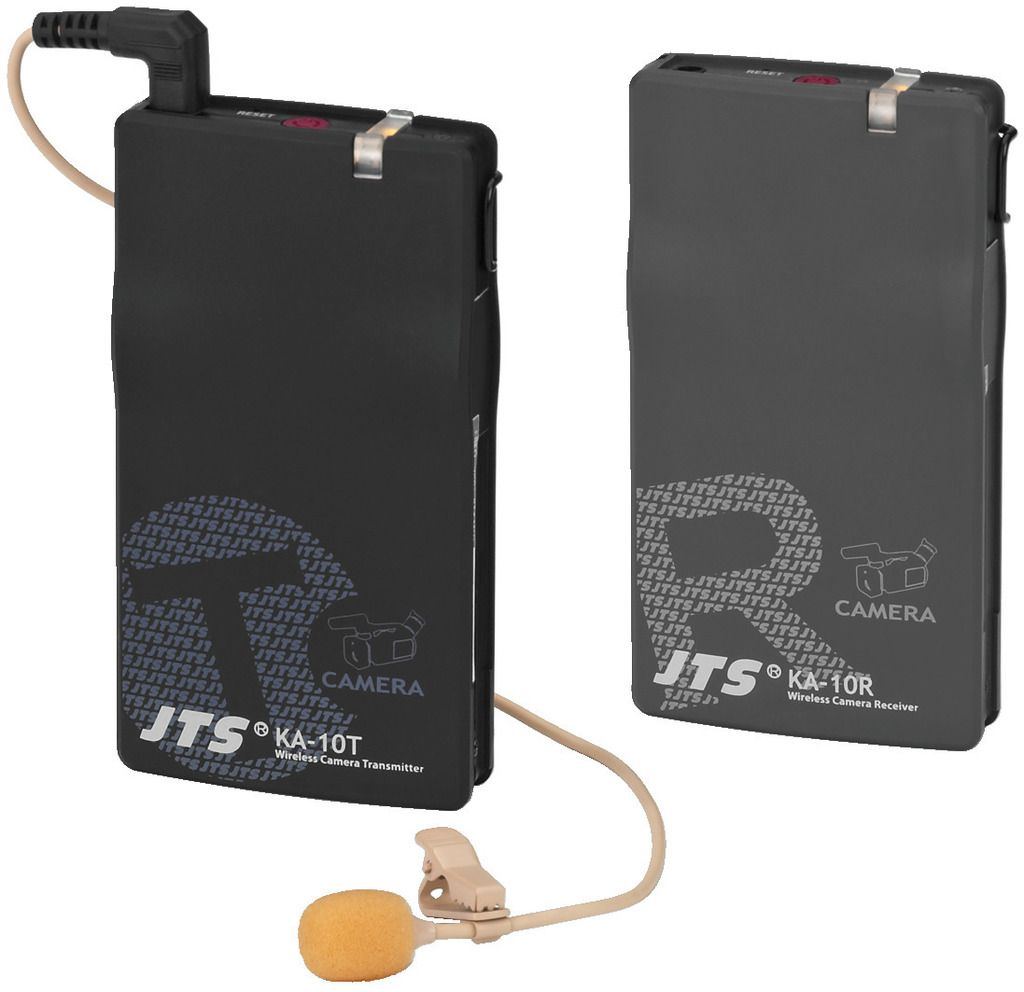

Wireless 16-channel PLL audio transmission system for cameras
  • Consisting of a portable audio transmitter and receiver
  • Carrier frequency range: 863-865 MHz
  • Transmitter and receiver with rechargeable lithium-ion batteries for reducing the weight and to ensure long operating times
  • Transmitter can also be used for transmitting line signals (adjustment via recessed gain control)
  • Receiver with 3-step PAD switch (0dB/-10 dB/-20 dB) for perfect level matching to the audio input of the camera
  • Transmitter and receiver are fitted with a robust metal fixing clip
  • Operating time: approx. 12 hours
  • Supplied with lavalier microphone in skin design with windshield and tie clip, attachment clip for camera mounting, trim key, dual charging slot with plug-in switch-mode power supply, connection cable with 3.5 mm plug to 3.5 mm plug, connection cable with 3.5 mm plug to XLR plug
  • Connection cable 801TG with 3.5 mm plug is available at option for certain JTS headband microphones

Licence-free in the EU.
Supplied w/o camera.
Manufacturer information:
JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Batteries and rechargeable batteries must not be disposed of with household waste. They must be disposed of in accordance with local regulations for hazardous waste.

Parametrii

Description 16-channel PLL audio transmission system
Carrier frequency range 863-865 MHz
Audio frequency range 40-18,000 Hz
Channels 1
THD < 1%
Operating time < 12 h
Admiss. ambient temp. 0-40 °C
Transmitting power < 10 mW
Operating range approx. 60 m
Power supply transmitter 3.7 V rech. lithium-ion battery
Width transmitter 55 mm
Height transmitter 100 mm
Depth transmitter 18 mm
Weight transmitter 80 g
Audio signal receiver 300 mV/7 kΩ (jack)
Power supply receiver 3.7 V rech. lithium-ion battery
Width receiver 55 mm
Height receiver 100 mm
Depth receiver 18 mm
Weight receiver 82 g
Connections receiver 1 x 3.5 mm jack (transmitter)1 x 3.5 mm jack (receiver)

Fisiere de descarcat

Fisa produsului KA-10/1PACK konformitaetserklaerung-ce-red konformitaetserklaerung-ukca-r Manual de utilizare sicherheitshinweise
