LSI-100T

Cod EAN: 4007754066920

Transformer core coil, 10 mH High-quality crossover network coil of very high power rating, low distortion (vacuum-sealed) and minimum inside resistances, the first choice particularly for PA applications.

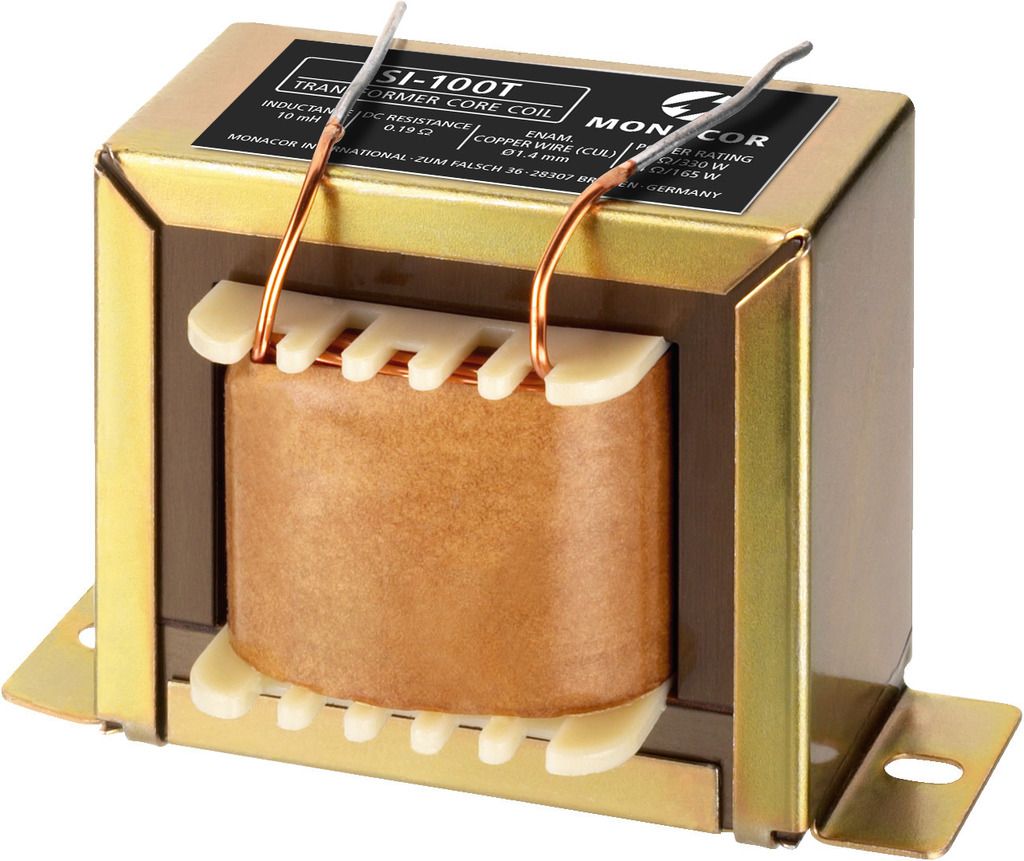

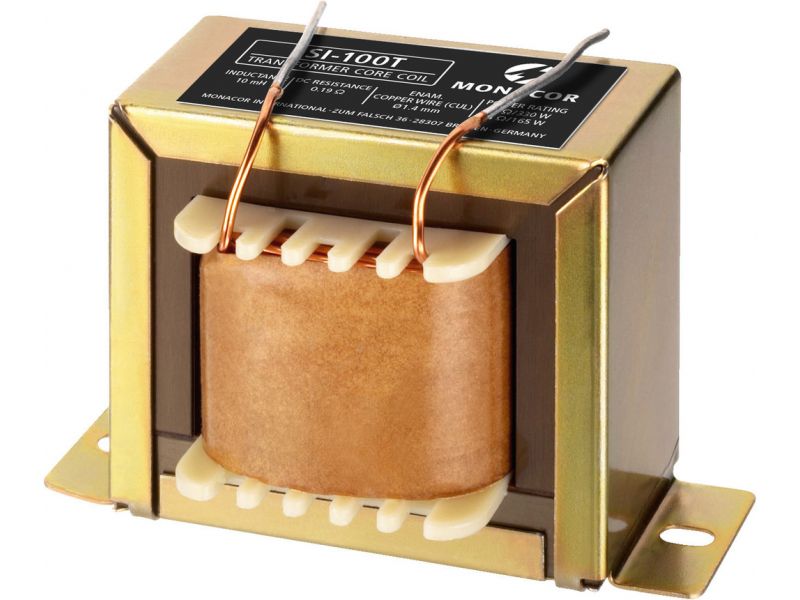

LSI-100T

Transformer core coil, 10 mH
High-quality crossover network coil of very high power rating, low distortion (vacuum-sealed) and minimum inside resistances, the first choice particularly for PA applications.

Parametrii

Description transformer core coil
Nominal value 10 mH
Power rating 330 W/165 W
Enam. copper wire

(CUL)

Ø 1.4 mm
DC resistance 0.19 Ω
Saturation current

(50 Hz)

6.4 A
Packing unit 1
Dimensions 68 x 58 x 55 mm (EI-66)
Weight 964 g
