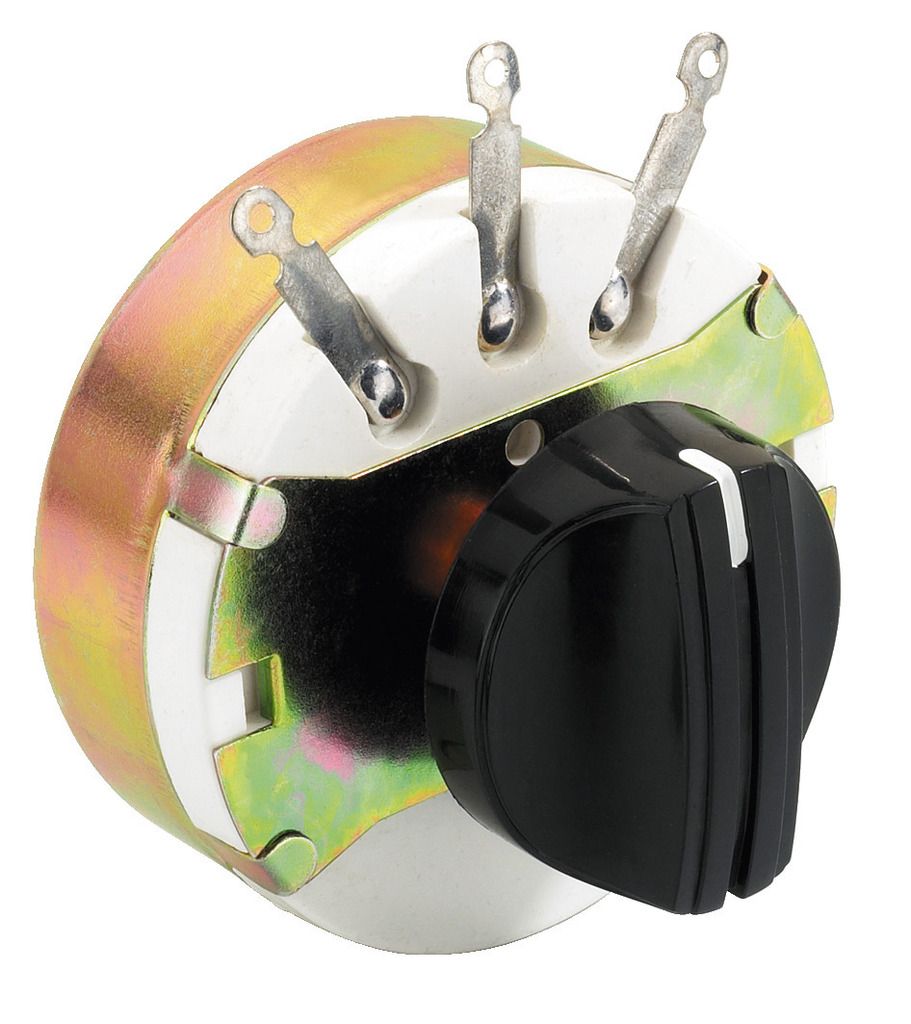

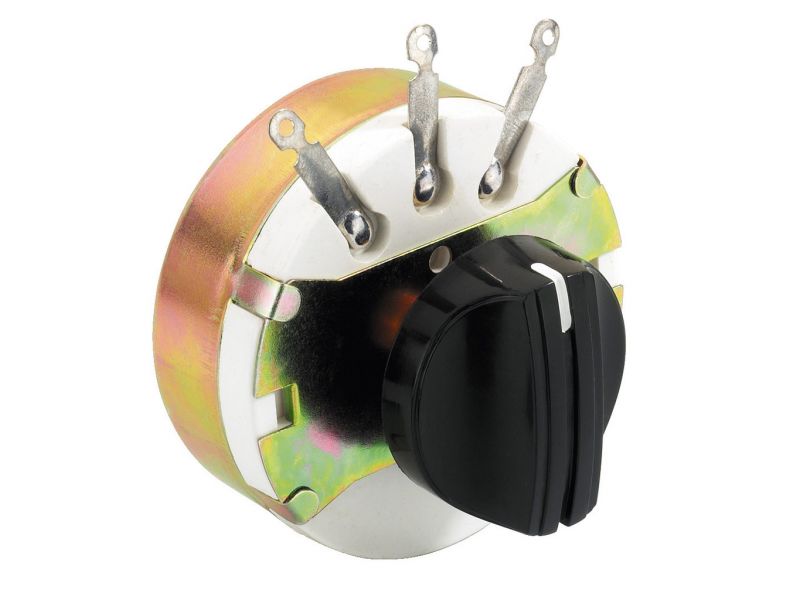

AT-62H

Cod EAN: 4007754188639

L-pad attenuator High-performance level control Plastic carrier Mono version With push-on knob Thread length: 10 mm



AT-62H

L-pad attenuator
  • High-performance level control
  • Plastic carrier
  • Mono version
  • With push-on knob
  • Thread length: 10 mm

Parametrii

Impedance 8 Ω ± 20%
Channels mono
Attenuation 0 dB up to ∞ dB
Attenuation direction counterclockwise
Turning angle 300° ± 5°
Power rating 100 W
Admiss. ambient temp. 0-40 °C

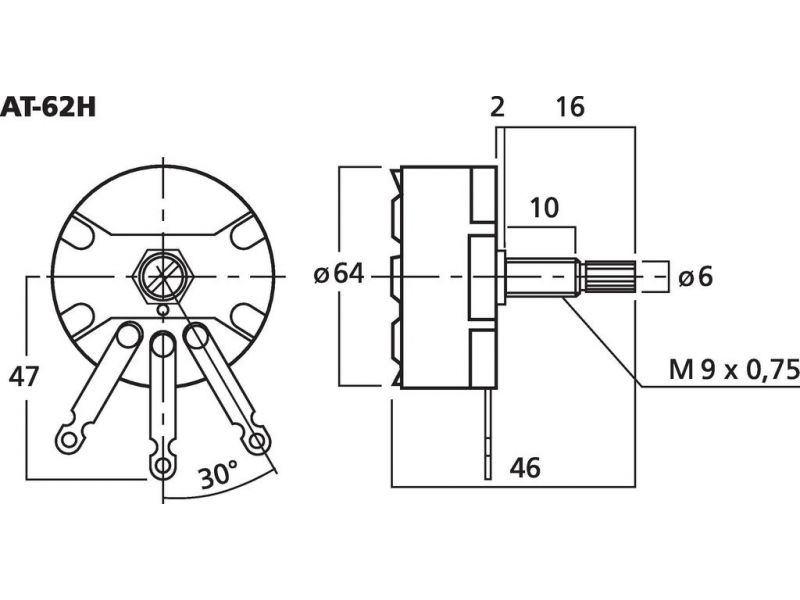

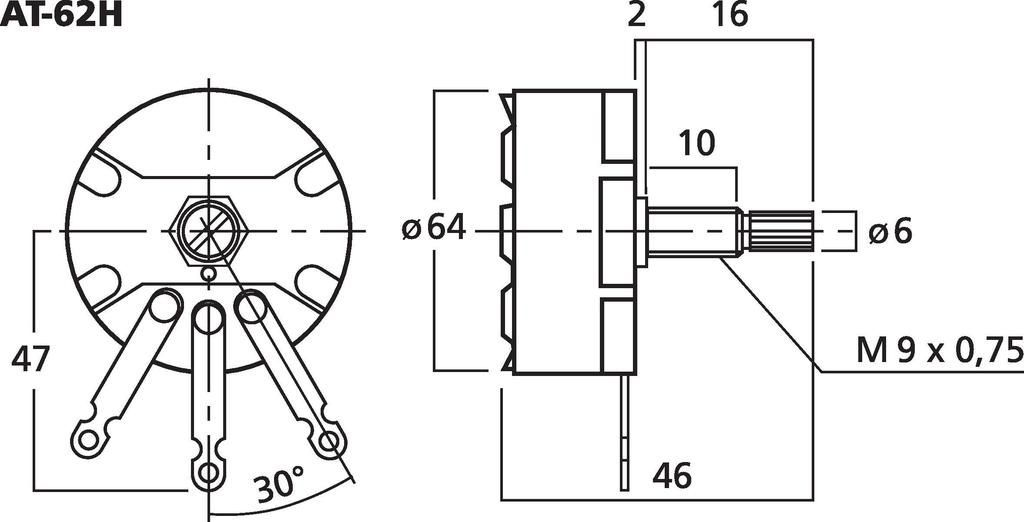

Dimensions see drawing
Weight 119 g
