SPM-200X/4

Cod EAN: 4007754221015

Full range speaker, 30 W, 4 Ω Sheet steel basket Paper cone with dual cone Wide frequency response High efficiency For PA and hi-fi applications Subwoofer support required for hi-fi applications Manufacturer information: MONACOR INTERNATIONAL G...

Citeste mai mult

Intreaba despre produs
Cumpara acum


SPM-200X/4

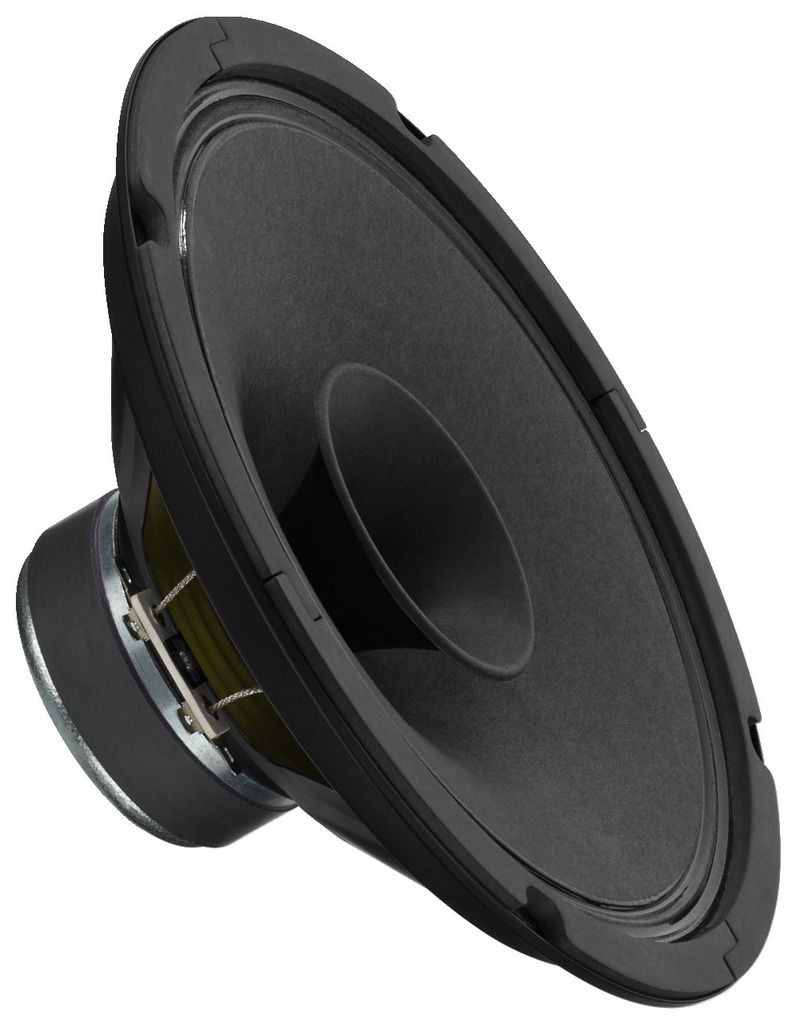

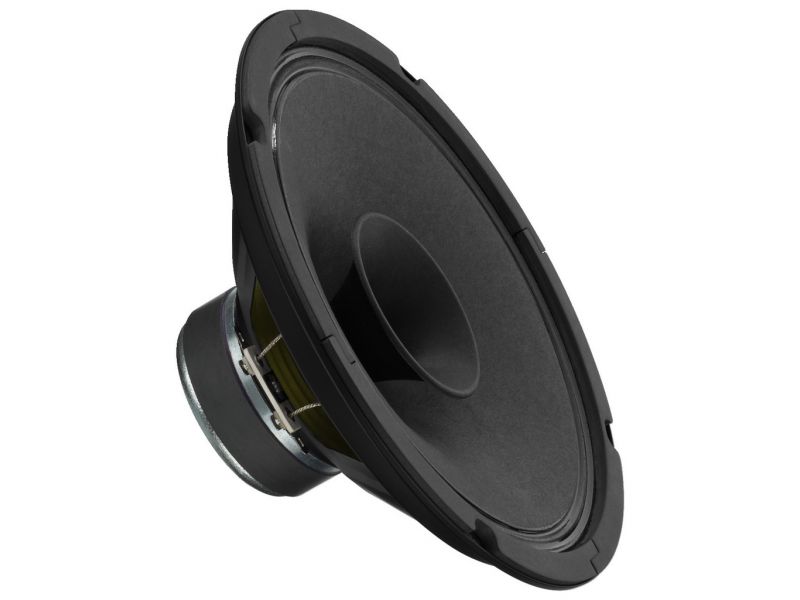

Full range speaker, 30 W, 4 Ω
  • Sheet steel basket
  • Paper cone with dual cone
  • Wide frequency response
  • High efficiency
  • For PA and hi-fi applications
  • Subwoofer support required for hi-fi applications
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Impedance (Z) 4 Ω
Transmission technology cable

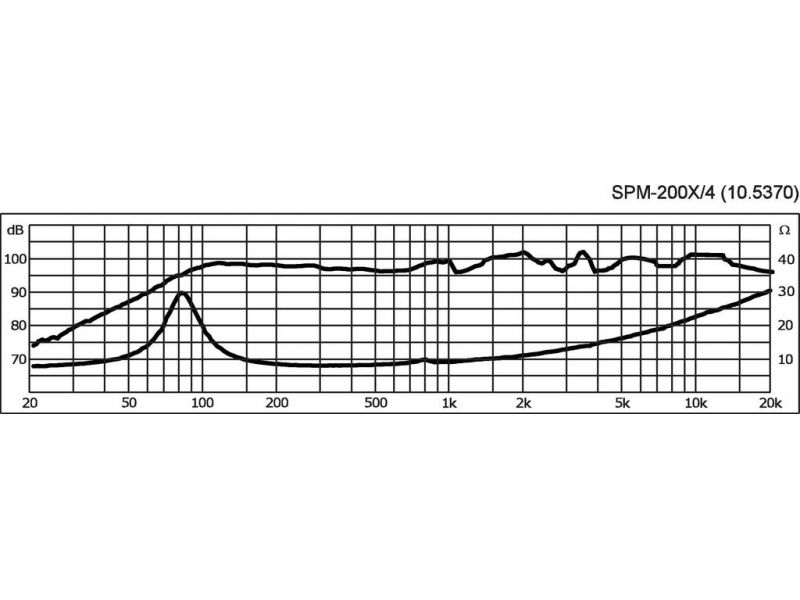

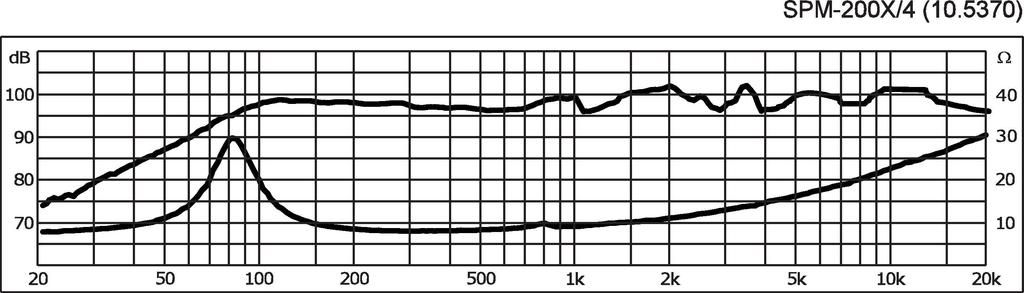

Frequency range f3-15,000 Hz
Resonant frequency (fs) 89 Hz
Power rating (RMS) 30 W
Peak music power output (MAX) 60 W
SPL 94 dB/W/m
Suspension compl. (Cms) 0.27 mm/N
Moving mass (Mms) 9.9 g
Mech. Q factor (Qms) 2.69
Electr. Q factor (Qes) 1.52
Total Q factor (Qts) 0.97
Equivalent volume (Vas) 14.9 l
DC resistance (Re) 3.7 Ω
Force factor (BxL) 3.90 Tm
Voice coil induct. (Le) 0.2 mH
Voice coil diameter Ø 25 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 1 mm
Eff. cone area (Sd) 201 cm2
Magnet weight 229 g
Magnet diameter Ø 70 mm

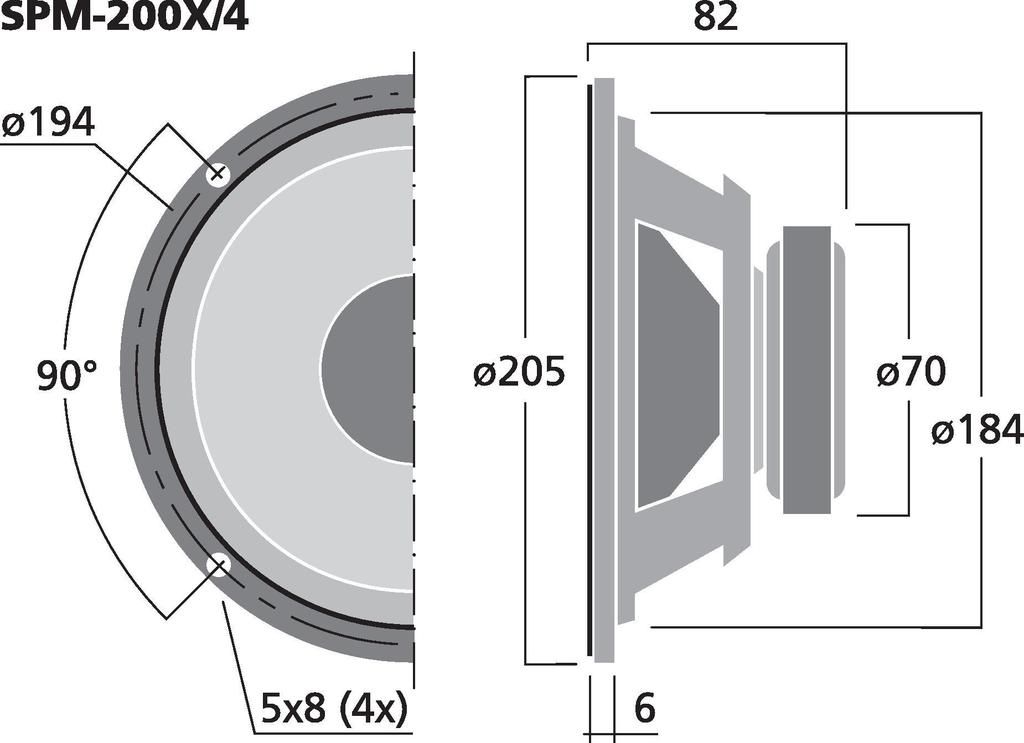

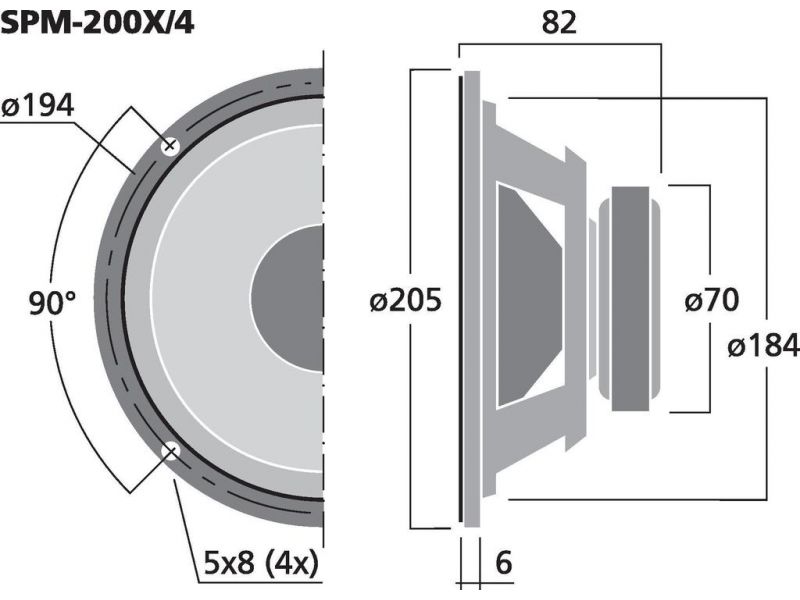

Mounting cutout Ø 184 mm
Mounting depth 76 mm
Mounting hole diameter Ø 194 mm
Dimensions Ø 205 mm x 82 mm
Outside diameter Ø 205 mm
Width Ø 205 mm
Height Ø 205 mm
Depth 82 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.734 kg
Packing unit 1
Type of speaker 8"
Packaging dimensions (W x H x L) 0.22 x 0.11 x 0.22 m
Gross weight 0.9 kg
Net weight 0.734 kg

Fisiere de descarcat

Fisa produsului SPM-200X/4 konformitaetserklaerung-ce konformitaetserklaerung-ukca
