ATS-825C
Cod EAN 4007754273830
Transport case with integrated charging function, 25-port

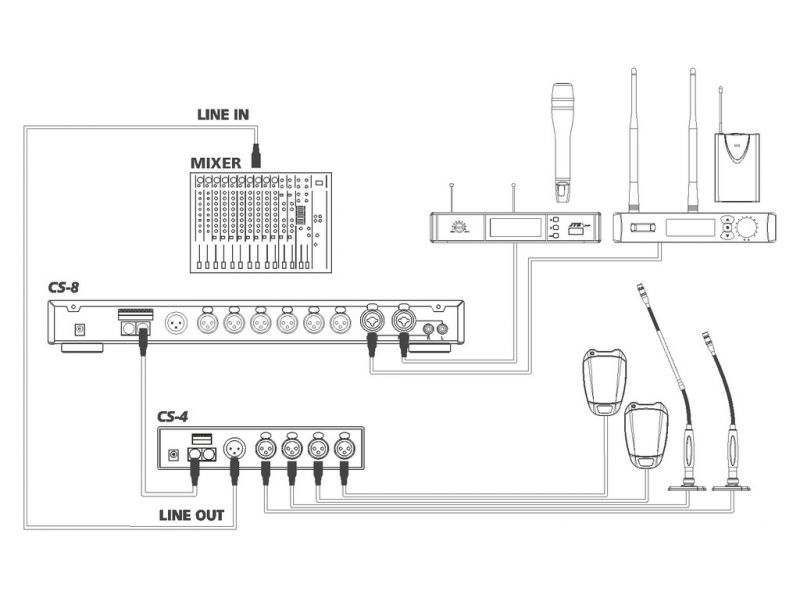

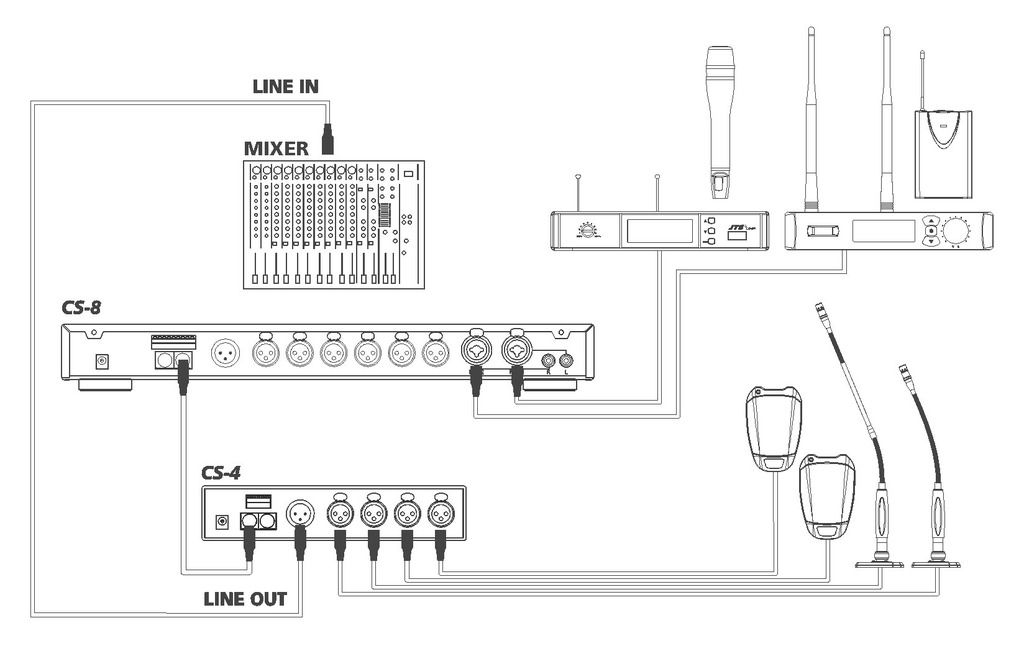

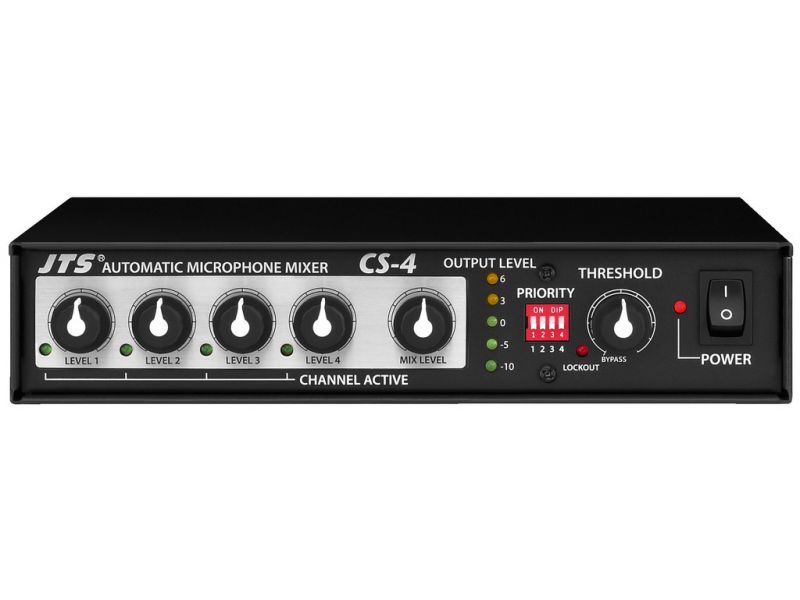

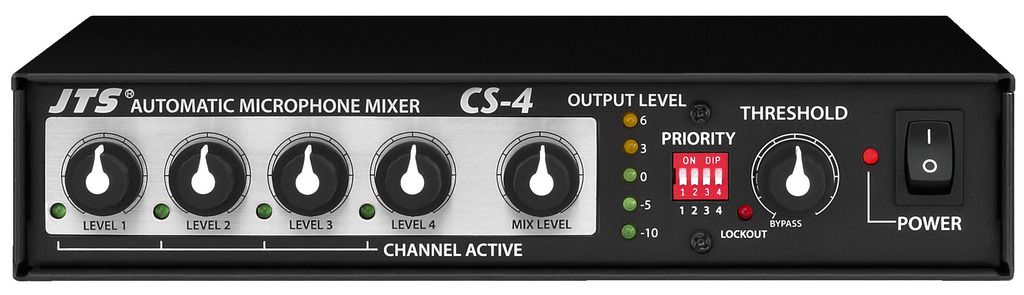

The Automatic Microphone Mixers of the CS series are THE perfect aid for concepts with multiple microphones, e.g. in conference rooms, churches or language laboratories. The main task of the mixer is to open the respective microphone channel when req...
No. of channels | 4 |
No. of inputs | 4 |
Mic input | 0.2 mV/4.7 kΩ |
Line input | 60 mV/20 kΩ |
Aux output | 1 V/200 Ω |
Frequency range | 35-20,000 Hz |
THD | < 0.06% |
S/N ratio | > 70 dB |
Phantom power | +12 V |
Power supply | via encl. plug-in power supply |
Admiss. ambient temp. | 0-40 °C |
Width | 200 mm |
Height | 44 mm |
Depth | 212 mm |
Weight | 1.4 kg |
Packing dimensions (W x H x L) | 0.1 x 0.33 x 0.355 m |
Gross weight | 2.59 kg |
Net weight | 1.94 kg |
