SP-308CX
Cod EAN: 4007754246575
2-way coaxial PA speaker, with integrated horn tweeter. 20 cm (8") PA bass speaker of high power capability and high efficiency Coaxially arranged horn tweeter with 25 mm (1", voice coil = 44 mm) high-frequency driver Excellent sound characteristic...

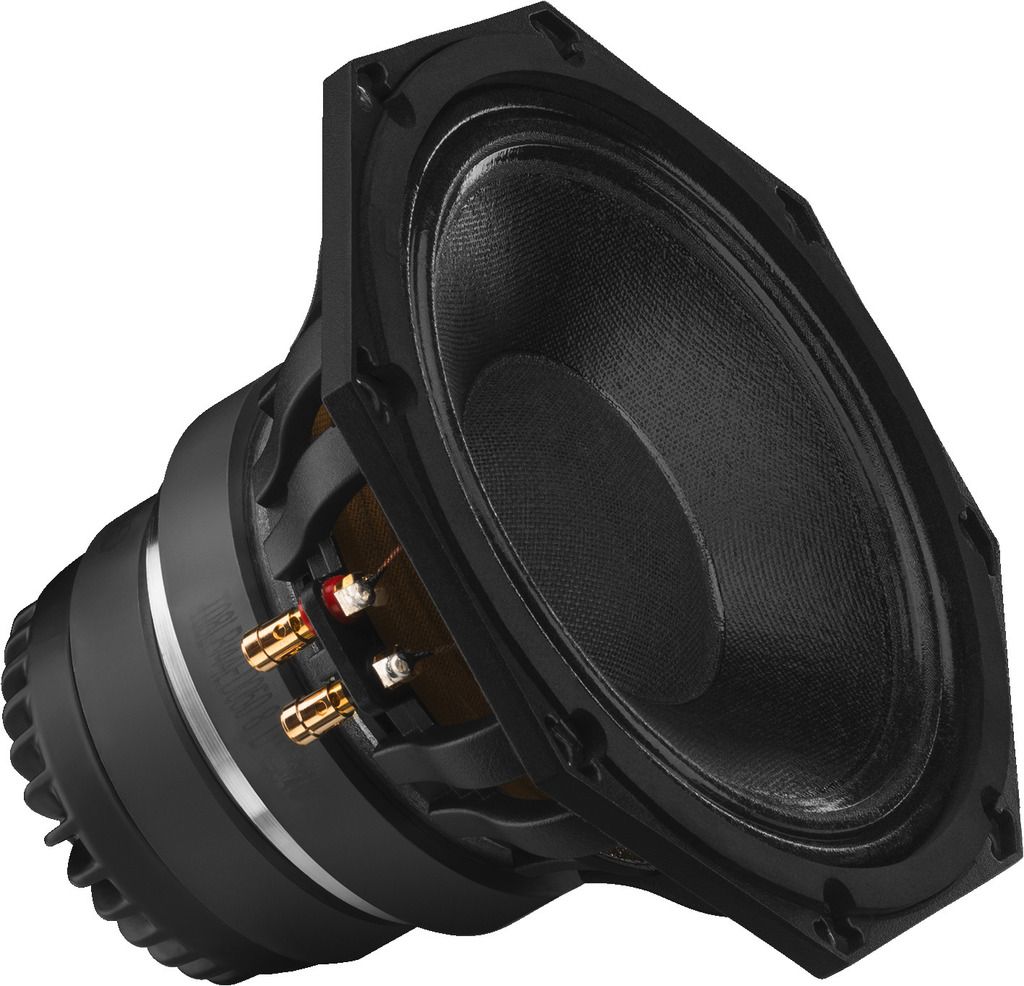

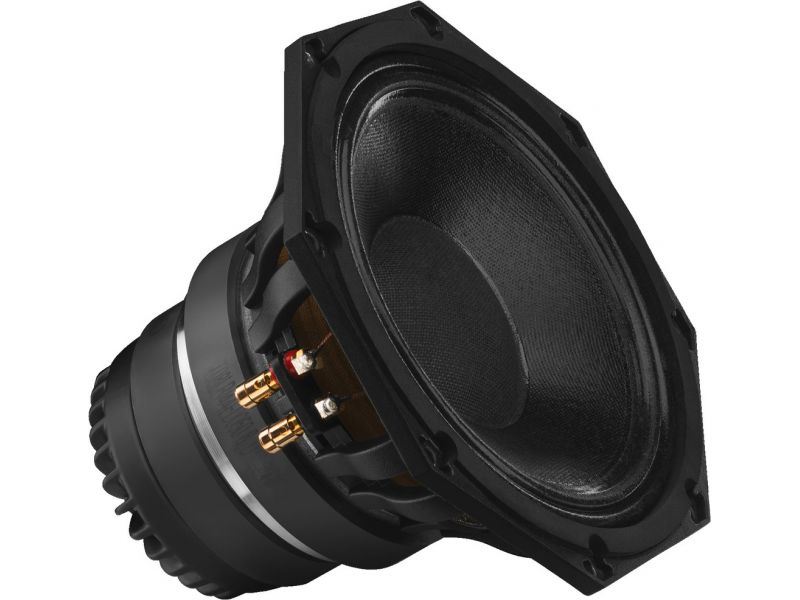

SP-308CX
2-way coaxial PA speaker,
with integrated horn tweeter.
- 20 cm (8") PA bass speaker of high power capability and high efficiency
- Coaxially arranged horn tweeter with 25 mm (1", voice coil = 44 mm) high-frequency driver
- Excellent sound characteristics
- Robust diecast basket with rear-ventilated centering spider
- 50 mm (2") heat-resistant voice coil on a polyamide voice coil former (TIL)
- Excellent and consistent radiation pattern
- Ideally suited for stage monitors or very compact full range speaker systems
- Operation only allowed with crossover network (recommended crossover frequency: >1,800 Hz)
Klang+Ton 08,09/2016
“Can hardly imagine a higher stability. Coaxial speaker ideally suited for hi-fi and monitoring which is available at a more than fair price.”
Parametrii
| Impedance (Z) | 8 Ω (bass), 8 Ω (tweeter) |
| Transmission technology | cable |

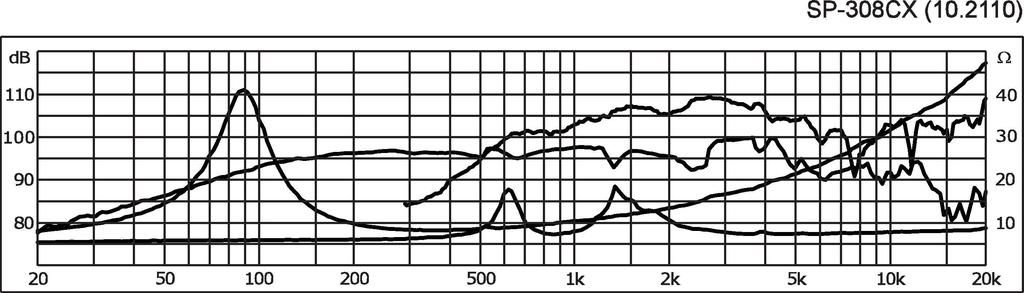

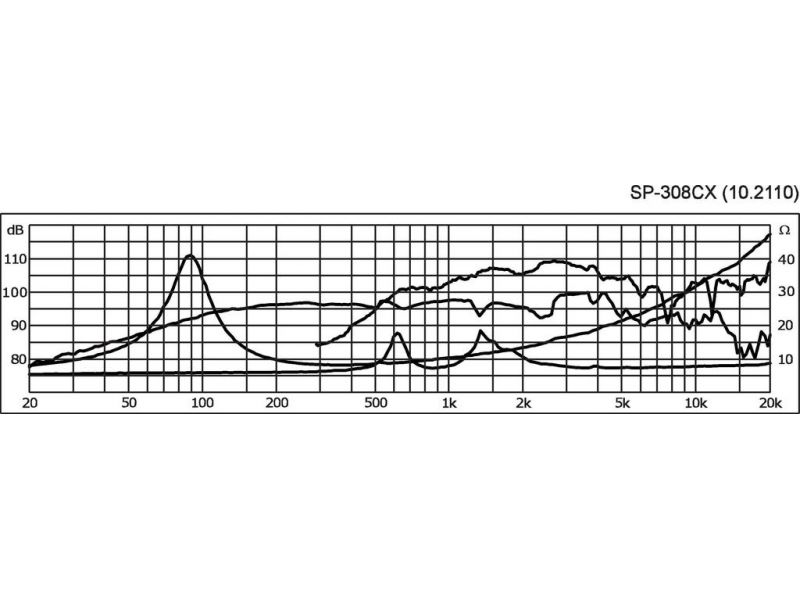

| Frequency range | f3-3,000 Hz (bass) 1,000-22,000 Hz (tweeter) |
| Resonant frequency (fs) | 80 Hz (bass), 700 Hz (tweeter) |
| Power rating (RMS) | 150 W (bass) / 50 W (tweeter) |
| Peak music power output (MAX) | 300 W (bass) / 100 W (tweeter) |
| SPL | 95 dB (bass) / 105 dB (tweeter) |
| Suspension compl. (Cms) | 0.22 mm/N |
| Moving mass (Mms) | 17 g |
| Mech. Q factor (Qms) | 2.21 |
| Electr. Q factor (Qes) | 0.43 |
| Total Q factor (Qts) | 0.36 |
| Equivalent volume (Vas) | 15.4 l |
| DC resistance (Re) | 5.8 Ω |
| Force factor (BxL) | 12.10 Tm |
| Voice coil induct. (Le) | 0.58 mH |
| Voice coil diameter | Ø 50 mm (bass) / Ø 44 mm (tweeter) |
| Voice coil former | polyimide |
| Linear excursion (XMAX) | ± 2.5 mm |
| Eff. cone area (Sd) | 221 cm2 |
| Magnet weight | 1.4 kg |
| Magnet diameter | Ø 126 mm/Ø 110 mm |

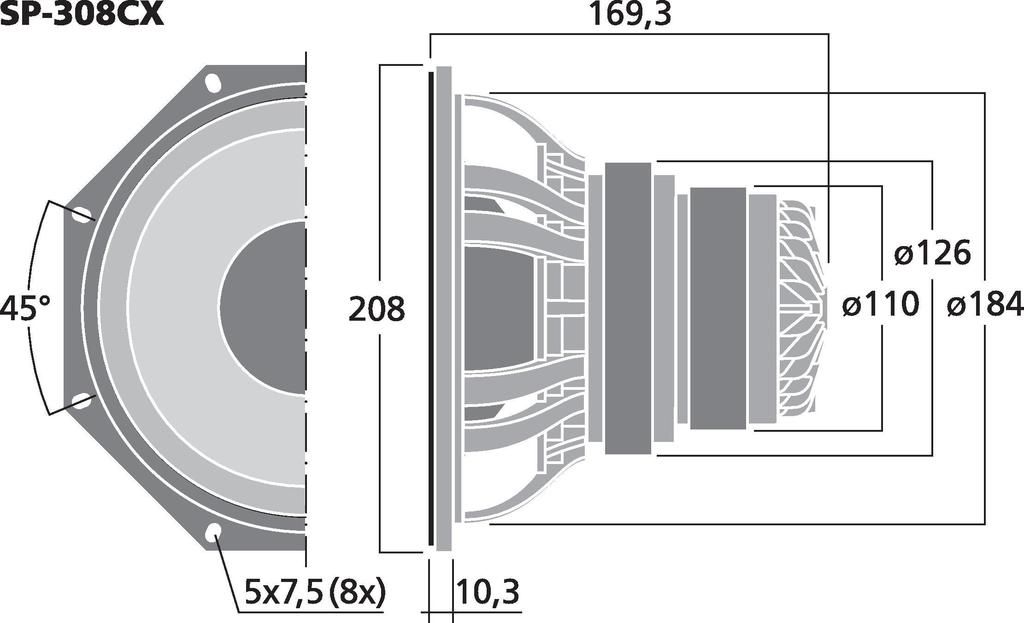

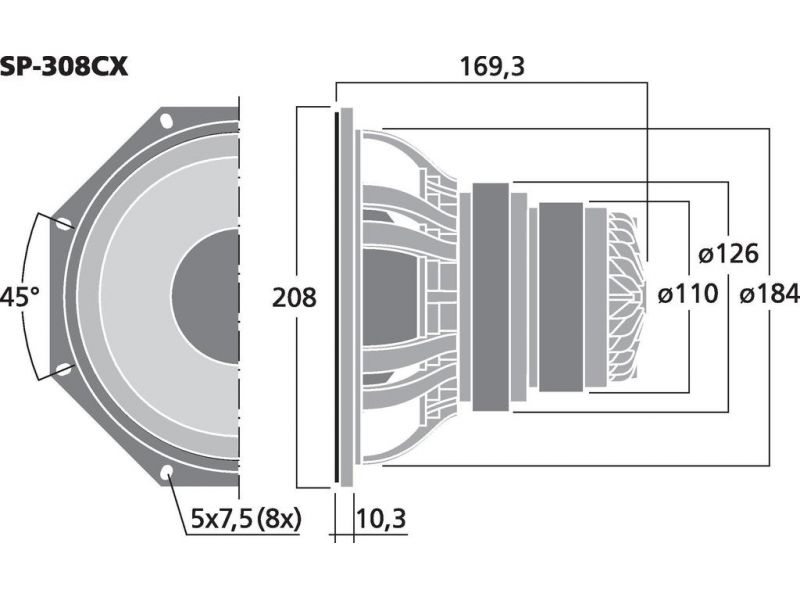

| Mounting cutout | Ø 184 mm |
| Mounting depth | 159 mm |
| Dimensions | 208 x 208 x 169.3 mm |
| Width | 208 mm |
| Height | 208 mm |
| Depth | 169.3 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 4.8 kg |
| Packing unit | 1 |
| Type of speaker | 8" |
| Packaging dimensions (W x H x L) | 0.29 x 0.24 x 0.29 m |
| Gross weight | 5.59 kg |
| Net weight | 4.8 kg |
