SPM-100/8

Cod EAN: 4007754220971

Compact hi-fi bass-midrange speaker, 25 W, 8 Ω Excellent replacement speaker of the same quality as from the original equipment manufacturer Low-resonance paper cone Long-term stable rubber surround Also very well-suited for use as a full range speak...

Citeste mai mult

Intreaba despre produs
Cumpara acum


SPM-100/8

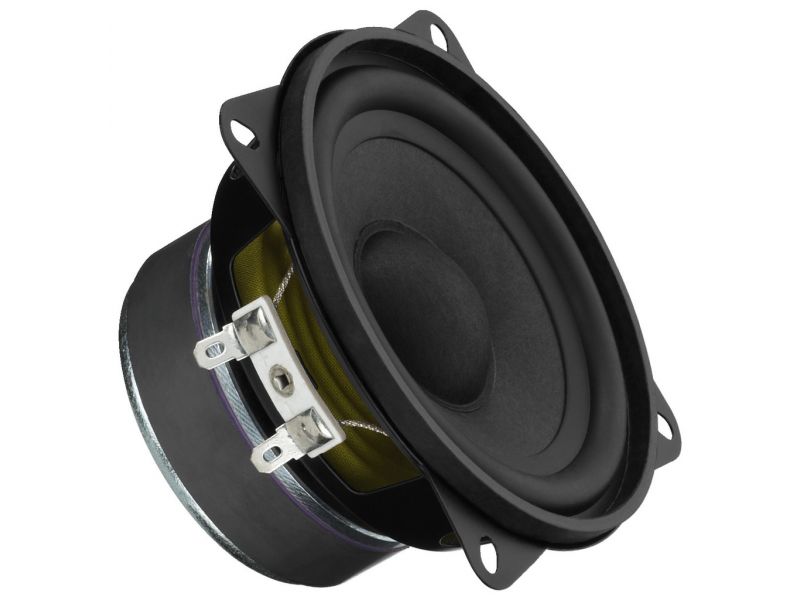

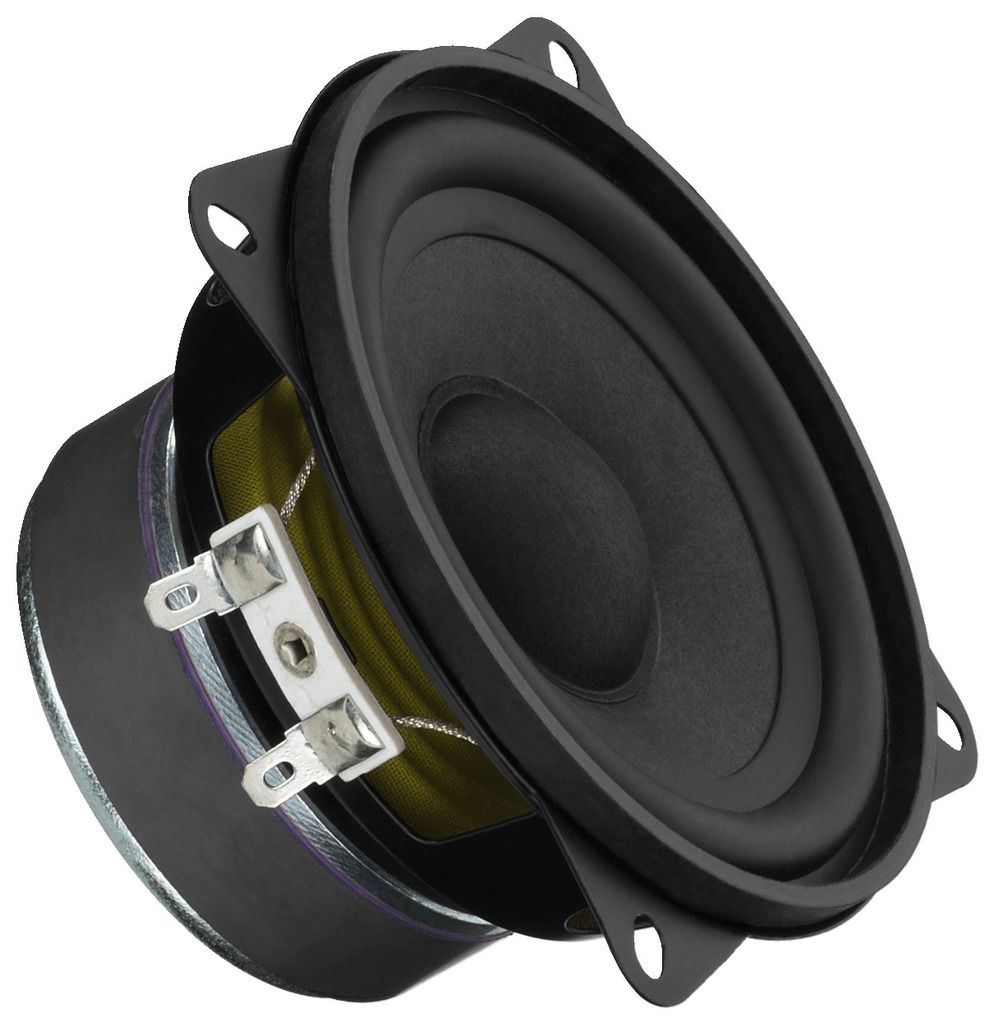

Compact hi-fi bass-midrange speaker, 25 W, 8 Ω
  • Excellent replacement speaker of the same quality as from the original equipment manufacturer
  • Low-resonance paper cone
  • Long-term stable rubber surround
  • Also very well-suited for use as a full range speaker

Parametrii

Impedance (Z) 8 Ω
Frequency range f3-18,000 Hz
Resonant frequency (fs) 75 Hz
Power rating (RMS) 25 W
Peak music power output (MAX) 50 W
SPL 86 dB/W/m
Suspension compl. (Cms) 0.8 mm/N
Moving mass (Mms) 4.4 g
Mech. Q factor (Qms) 1.96
Electr. Q factor (Qes) 1.01
Total Q factor (Qts) 0.67
Equivalent volume (Vas) 4 l
DC resistance (Re) 7.2 Ω
Force factor (BxL) 4.10 Tm
Voice coil induct. (Le) 0.4 mH
Voice coil diameter Ø 20.4 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 1 mm
Eff. cone area (Sd) 57 cm2
Magnet weight 220 g
Magnet diameter Ø 70 mm

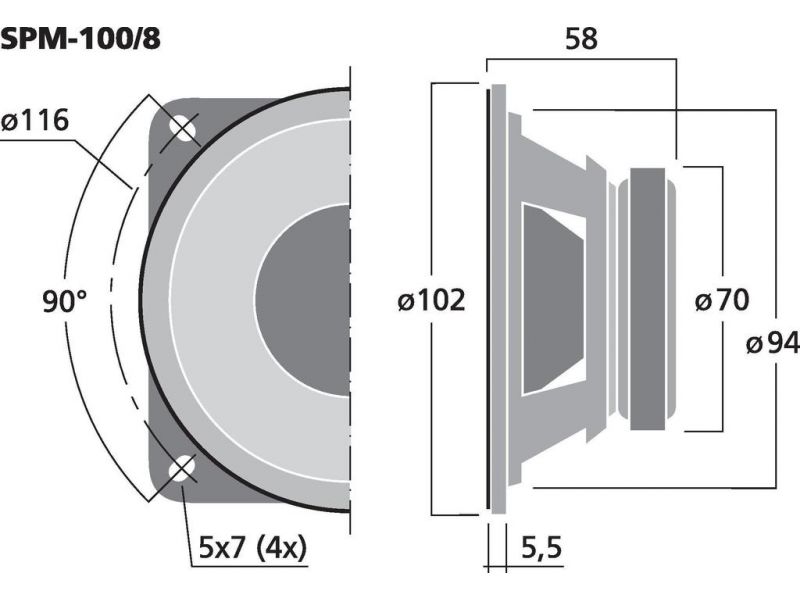

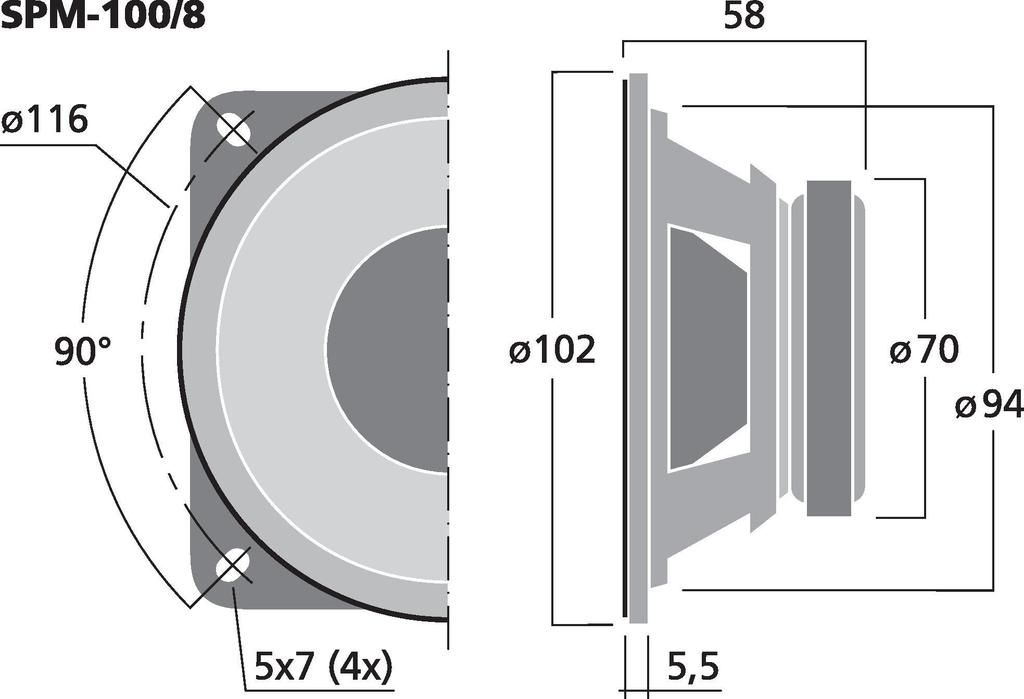

Mounting cutout Ø 94 mm
Mounting depth 52.5 mm
Mounting hole diameter Ø 116 mm
Dimensions Ø 102 mm x 58 mm
Outside diameter Ø 102 mm
Width Ø 102 mm
Depth 58 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.538 kg
Packing unit 1
Type of speaker 4"
Packing dimensions (W x H x L) 0.105 x 0.065 x 0.105 m
Gross weight 0.57 kg
Net weight 0.538 kg

Fisiere de descarcat

Fisa produsului SPM-100/8 konformitaetserklaerung-ce konformitaetserklaerung-ukca
