TXS-631SET

Cod EAN: 4007754223750

Multifrequency microphone system, with UHF PLL technology. 1 pocket transmitter, 1 tie clip microphone, 1 receiver, 1 plug-in power supply True diversity system 80 selectable UHF channels (863-865 MHz) ACT function for transmitting the selected fre...

Citeste mai mult

Intreaba despre produs
Cumpara acum

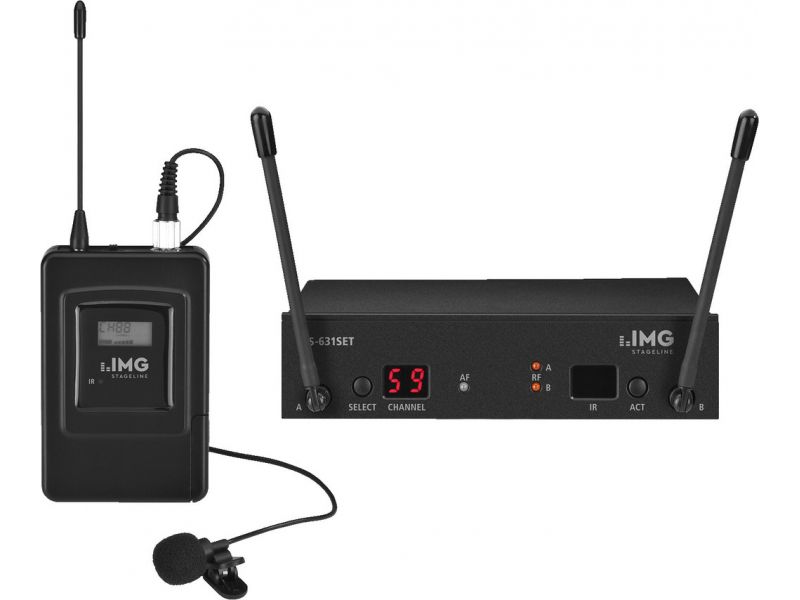

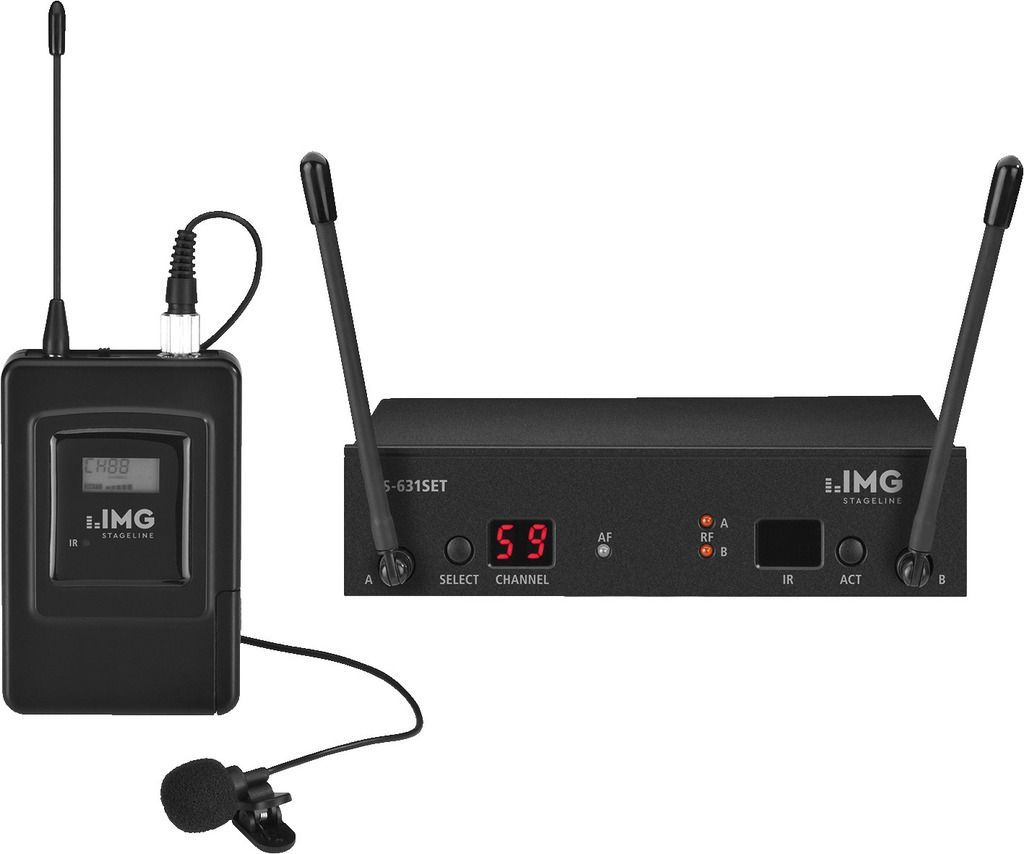

TXS-631SET

Multifrequency microphone system,
with UHF PLL technology.
  • 1 pocket transmitter, 1 tie clip microphone, 1 receiver, 1 plug-in power supply
  • True diversity system
  • 80 selectable UHF channels (863-865 MHz)
  • ACT function for transmitting the selected frequency to the pocket transmitter via infrared signal
  • Auto-scan
  • Volume and squelch controls
  • Gain can be adjusted at the pocket transmitter
  • Indication for channel, antenna A/B, ACT status and AF audio level (receiver), channel and battery status (pocket transmitter)
  • Robust metal housing (receiver)

Licence-free in the EU.
How many systems TXS-631-SET can be operated simultaneously?
With optimum local conditions, it is possible to operate 5 systems TXS-631SET simultaneously.

Parametrii

Description wireless microphone system
Carrier frequency range 863-865 MHz
Audio frequency range 50-18,000 Hz
Channels 1
THD < 0.5%
Dynamic range 120 dB
RF S/N ratio 105 dB
Admiss. ambient temp. 0-40 °C
Transmitting power < 10 mW
Operating range ≈ 30 m
Power supply transmitter 2 x 1.5 V batt. AA size
Width transmitter 62 mm
Height transmitter 105 mm
Depth transmitter 25 mm
Weight transmitter 88 g
Audio signal receiver 350 mV/10 kΩ (jack)25 mV/10 kΩ (XLR, bal.)
Power supply receiver via encl. plug-in power supply
Width receiver 152 mm
Height receiver 38 mm
Depth receiver 120 mm
Weight receiver 482 g
Connections receiver 1 x 6.3 mm jack, unbal.1 x XLR, bal.

Fisiere de descarcat

Fisa produsului TXS-631SET konformitaetserklaerung-ce-red konformitaetserklaerung-ukca-r Manual de utilizare
