EDL-65TW

Cod EAN: 4007754197921

Pivoting PA ceiling speaker 100 V transmission technology High power rating with 30 W max. High-quality 2-way coaxial speaker system with 2-way crossover network Complete speaker part can be moved for optimising the sound radiation pattern indoors Pl...

Citeste mai mult

Intreaba despre produs
Cumpara acum

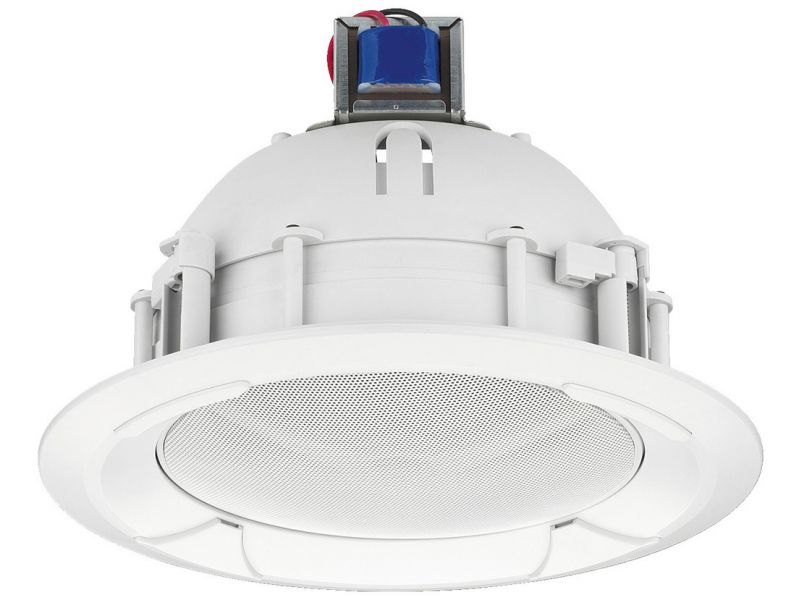

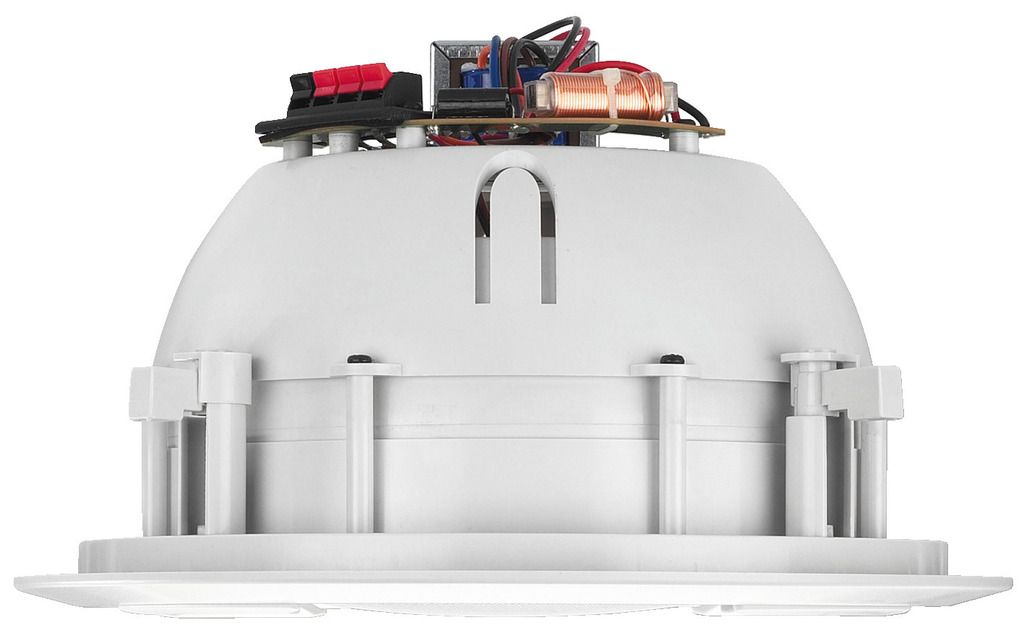

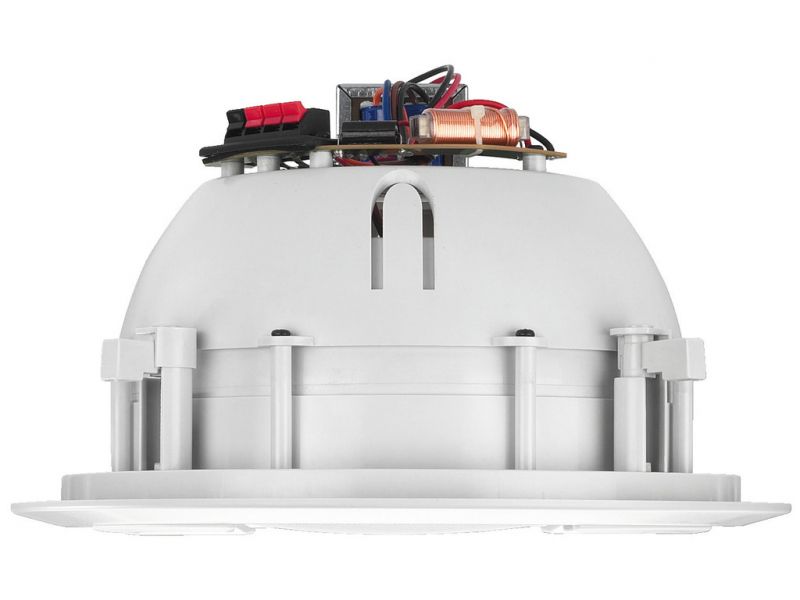

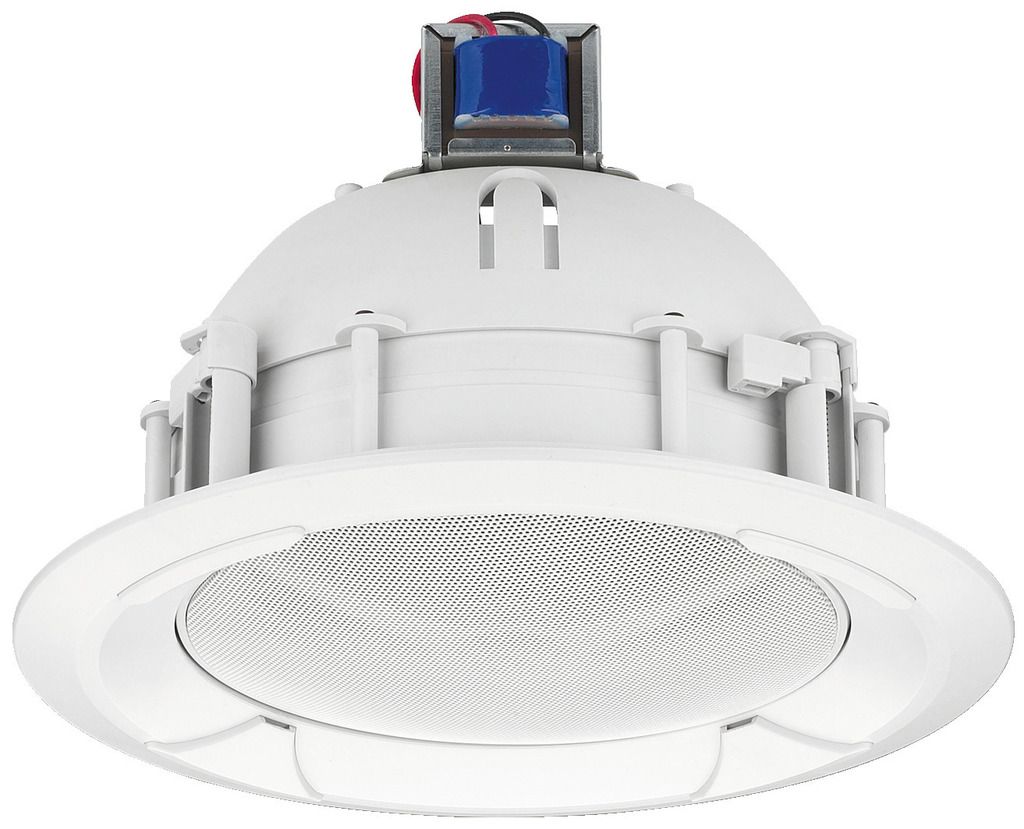

EDL-65TW

Pivoting PA ceiling speaker
  • 100 V transmission technology
  • High power rating with 30 W max.
  • High-quality 2-way coaxial speaker system with 2-way crossover network

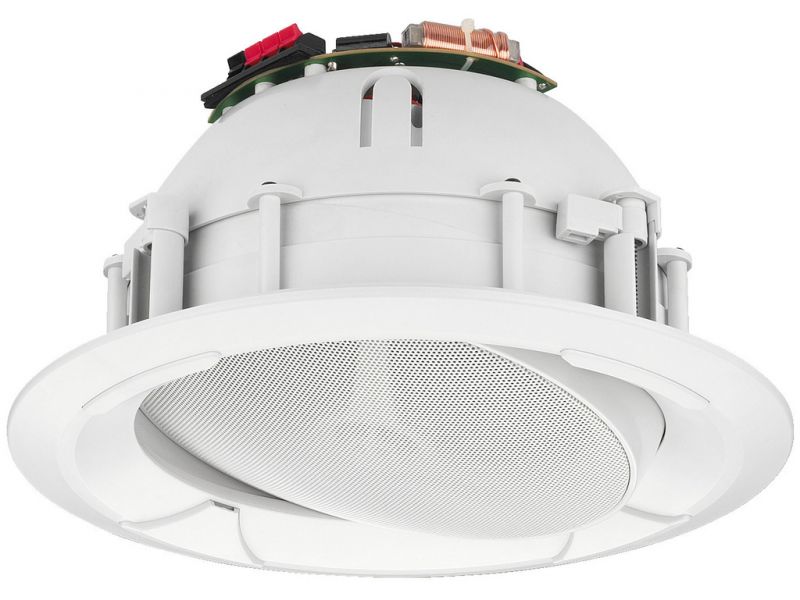

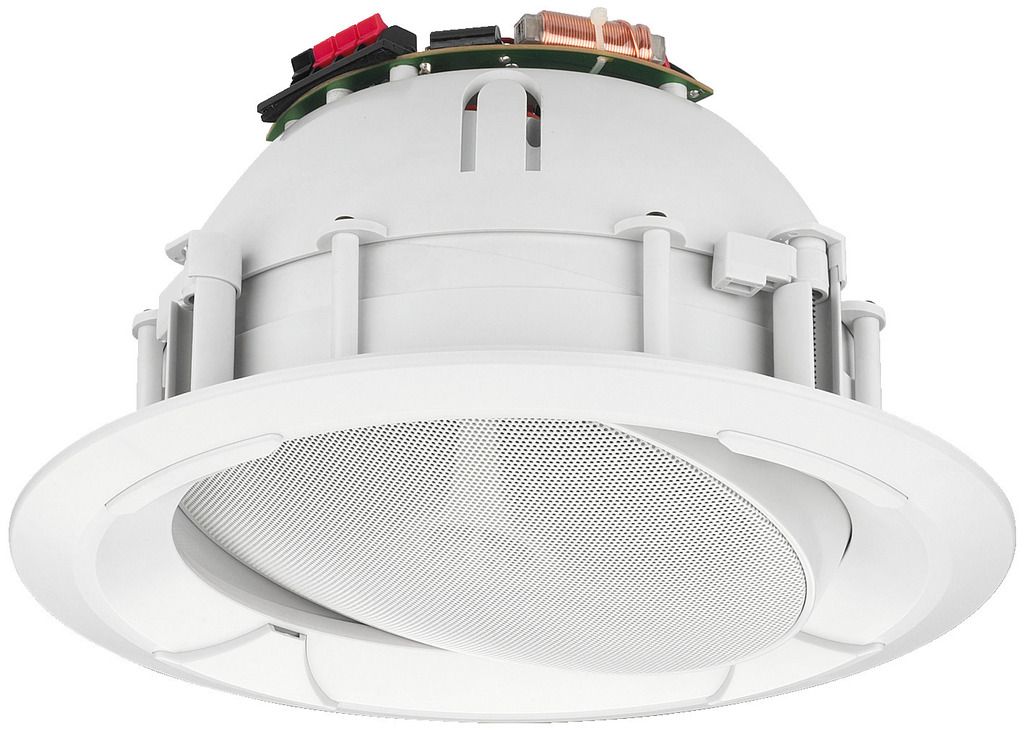

  • Complete speaker part can be moved for optimising the sound radiation pattern indoors
  • Plastic housing of superior design with metal grille
  • Plastic material of ABS and self-extinguishing according to UL 94V-0
  • For a ceiling thickness from 9 to 35 mm
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Transmission technology 100 V
Frequency range 50-20,000 Hz
Power rating (RMS) 30/15/7.5 W
SPL 91 dB/W/m

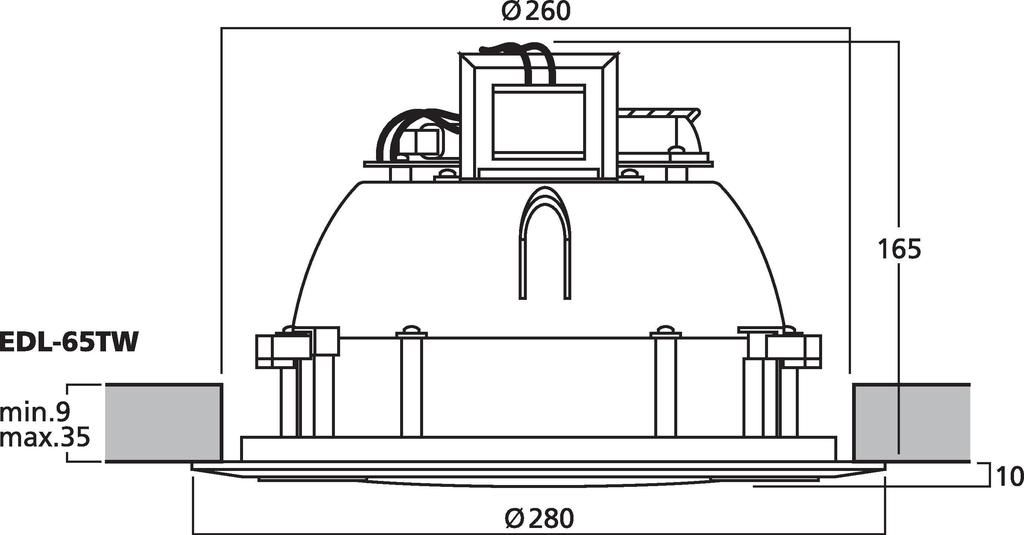

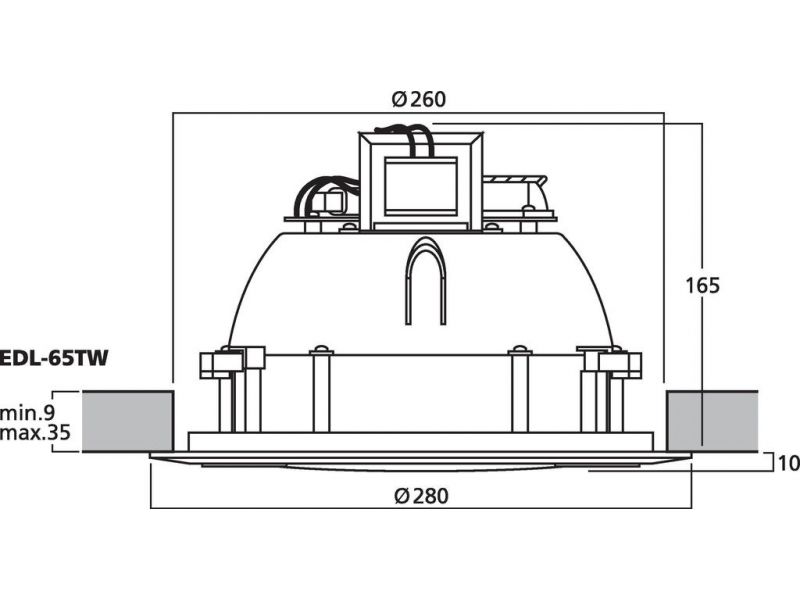

Mounting cutout Ø 260 mm
Mounting depth 165 mm
Dimensions Ø 280 mm x 175 mm
Outside diameter Ø 280 mm
Width Ø 280 mm
Height Ø 280 mm
Depth 175 mm
Colour white
Admiss. ambient temp. 0-40 °C
Weight 2.38 kg
Packing unit 1
Type of speaker 180
Packaging dimensions (W x H x L) 0.33 x 0.22 x 0.33 m
Gross weight 3.12 kg
Net weight 2.38 kg

Fisiere de descarcat

Fisa produsului EDL-65TW konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare pdf-zeichnung
