ATS-12HT
Cod EAN: 4007754222647
Hand-held microphone with integrated transmitter Matching the 16-channel mono PLL audio transmission system of the ATS-10 series and ATS-16R Electret microphone cartridge, cardioid polar pattern 16 selectable channels Pilot tone Mute function Push-to...

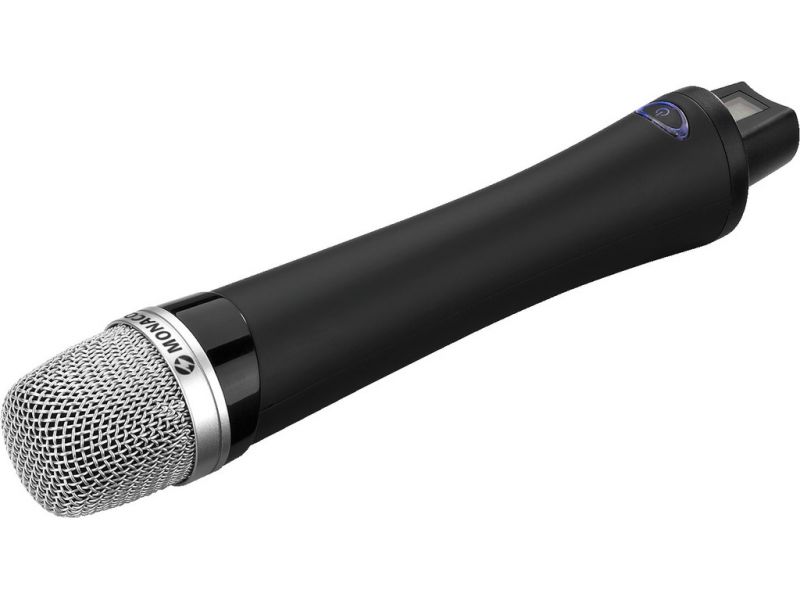

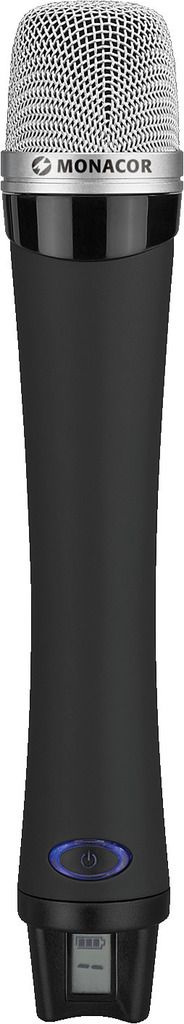

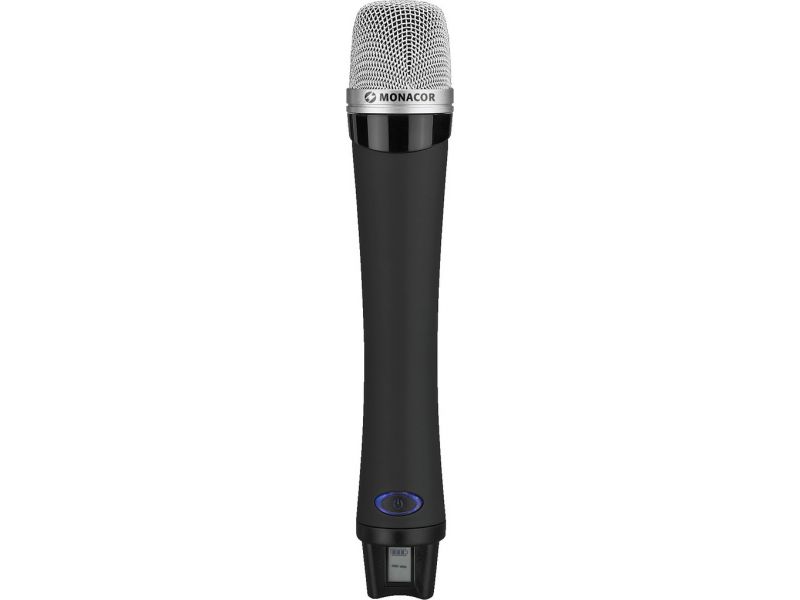

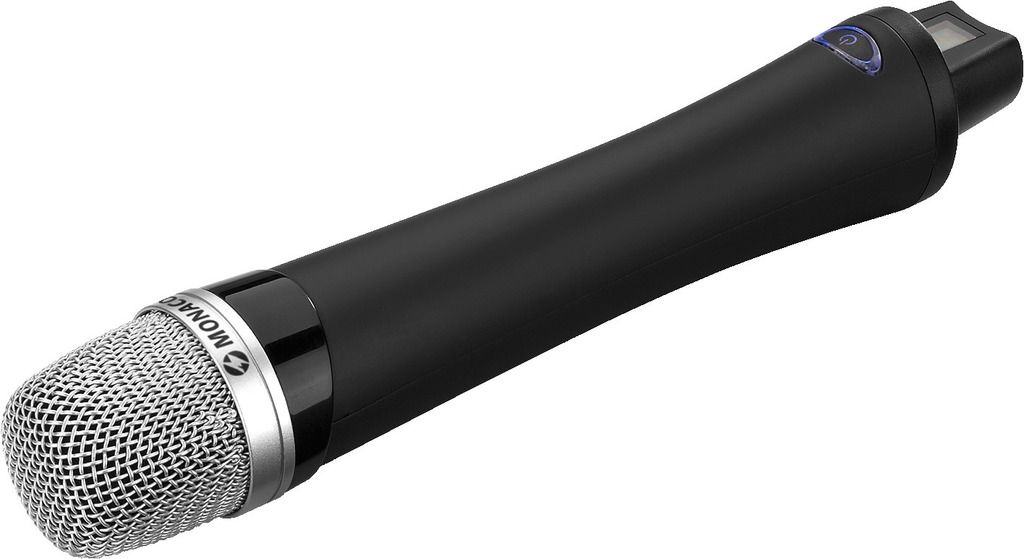

ATS-12HT
Hand-held microphone with integrated transmitter
- Matching the 16-channel mono PLL audio transmission system of the ATS-10 series and ATS-16R
- Electret microphone cartridge, cardioid polar pattern
- 16 selectable channels
- Pilot tone
- Mute function
- Push-to-talk function
- Adjustable transmitting power (high: ≤ 10mW/low: ≤ 1 mW)
- Operating range: approx. 50 m
- LCD for indicating channel and battery status
- Power supply via 2 x 1.2 V NiMH rech. battery AA size (not supplied)
- Dimensions: Ø 35 mm x 200 mm
- Weight: 93 g
Licence-free in the EU.
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Remove the rechargeable batteries or batteries if the device is not in use for a longer period of time (e.g. more than a week). This avoids possible damage through leaking batteries.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Batteries and rechargeable batteries must not be disposed of with household waste. They must be disposed of in accordance with local regulations for hazardous waste.
Remove the rechargeable batteries or batteries if the device is not in use for a longer period of time (e.g. more than a week). This avoids possible damage through leaking batteries.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Batteries and rechargeable batteries must not be disposed of with household waste. They must be disposed of in accordance with local regulations for hazardous waste.
Parametrii
| Description | hand-held microphone transmitter |
| Transmission method | wireless |
| Polar pattern | cardioid |
| System | electret |
| Carrier frequency range | 863-865 MHz |
| Transmitting power | ≤10 mW/≤1 mW |
| Power supply | 2 x 1.2 V NiMH rech. batt. AA size |
| Operating time | 12 h/15 h |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | Ø 35 mm x 200 mm |
| Weight | 93 g |
| Packaging dimensions (W x H x L) | 0.045 x 0.045 x 0.21 m |
| Gross weight | 0.13 kg |
| Net weight | 0.093 kg |
