ATT-250/WS

Cod EAN: 4007754090697

Wall-mounted PA volume control Power rating: 50 W Attenuation in 10 steps, position 0 is OFF Audio transformer for 100 V transmission technology White plastic front panel and knob Flush mounting, surface mounting with matching housing ATT-200, availa...

Citeste mai mult

Intreaba despre produs
Cumpara acum

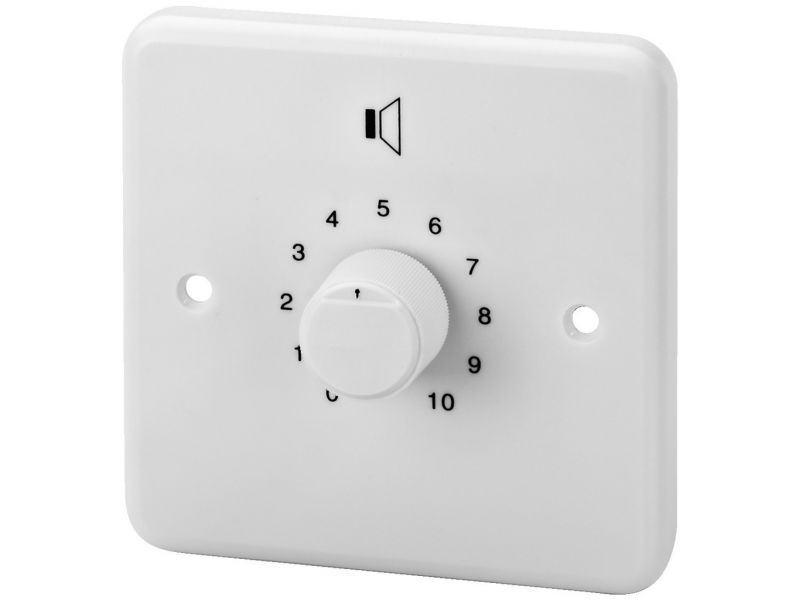

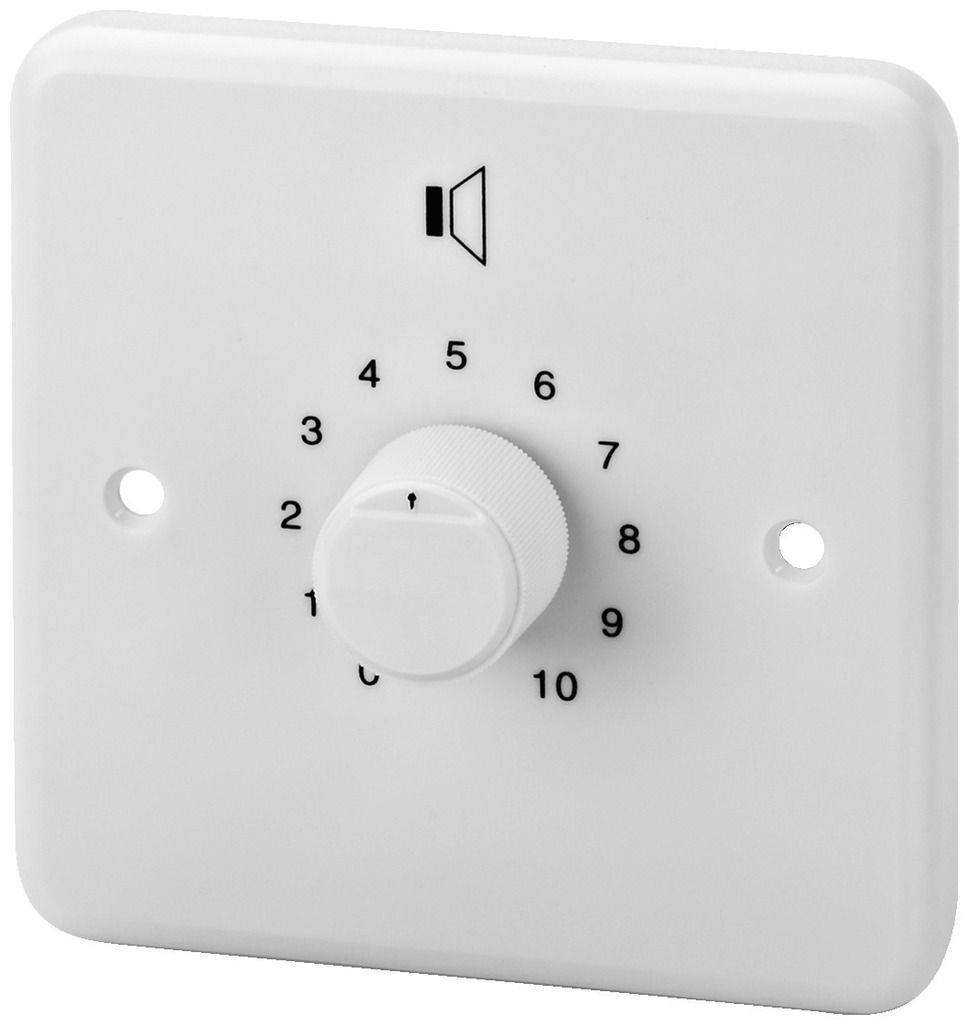

ATT-250/WS

Wall-mounted PA volume control
  • Power rating: 50 W
  • Attenuation in 10 steps, position 0 is OFF

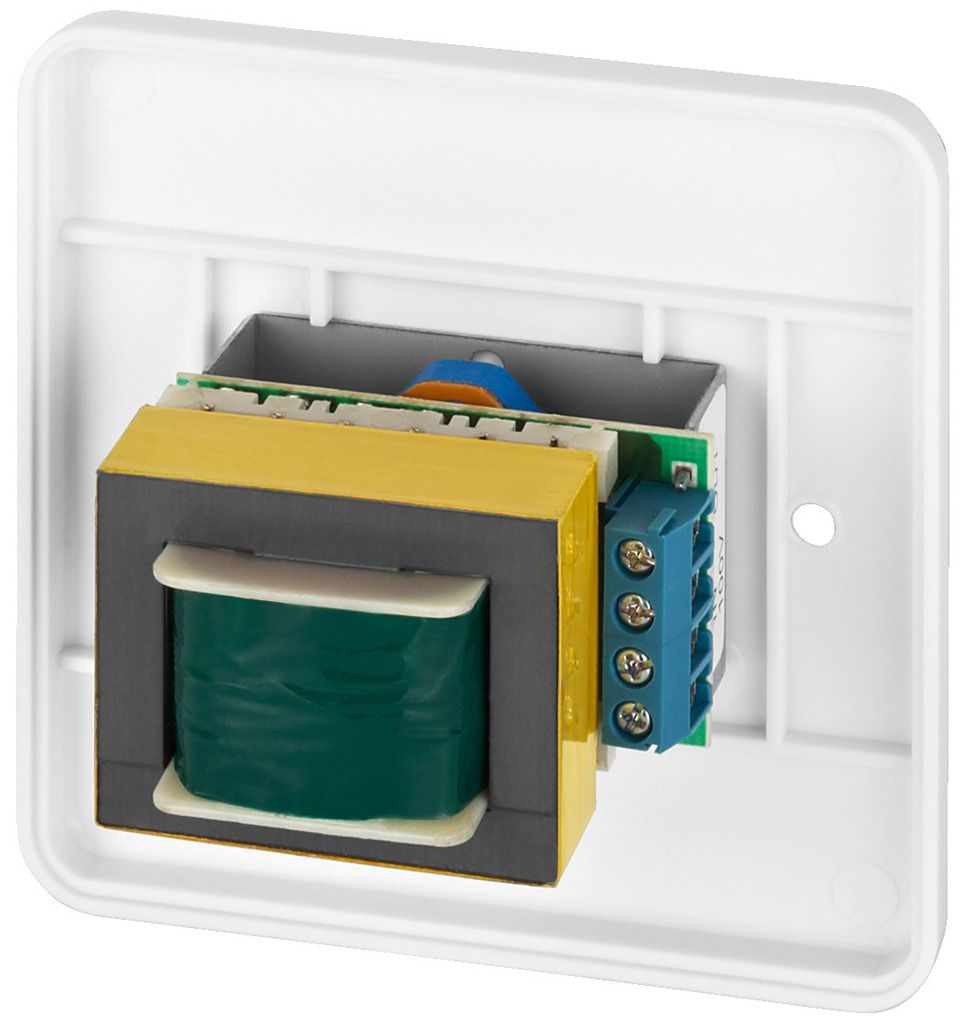

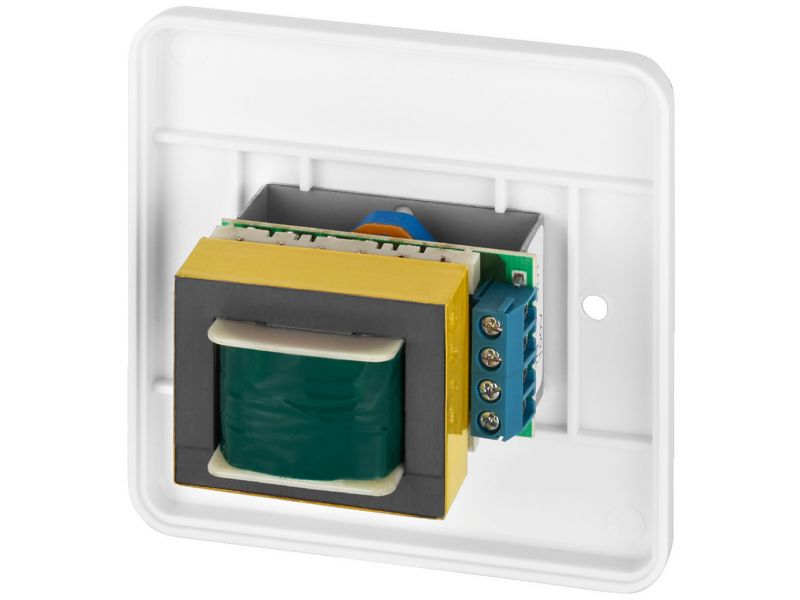

  • Audio transformer for 100 V transmission technology
  • White plastic front panel and knob
  • Flush mounting, surface mounting with matching housing ATT-200, available at option
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
During operation, there is a hazard of contact with a voltage of up to 100 V at the connection cables. Installation must be carried out by skilled personnel only. Make sure that the power matching is correct. An overload will damage the power amplifier and the attenuator!
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Parametrii

Description wall-mounted PA volume control
Frequency range 50-18,000 Hz
Power rating 50 W
Priority facility no
Dimensions 85 x 85 x 71 mm
Mounting depth 42 mm
Weight 211 g
Surface-mounted housing ATT-200

Fisiere de descarcat

Fisa produsului ATT-250/WS konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
