CM-503N/B
Cod EAN: 4007754247961
Built-in electret microphones Microphone cartridge with omnidirectional polar pattern Compact boundary microphone Low cut switch (80 Hz) 10 dB attenuation, switchable Metal housing Black (CM-503N/B) or white (CM-503N/W) cartridge cover Manufactu...

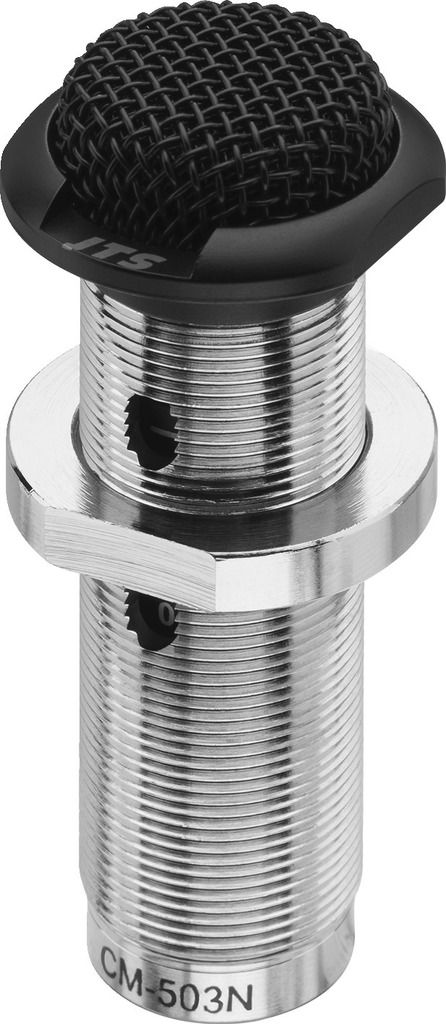

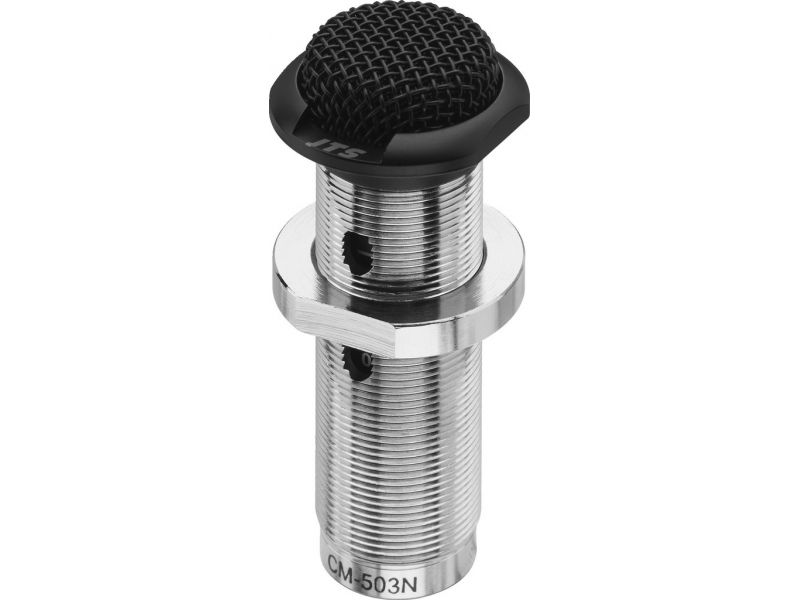

CM-503N/B
Built-in electret microphones
- Microphone cartridge with omnidirectional polar pattern
- Compact boundary microphone
- Low cut switch (80 Hz)
- 10 dB attenuation, switchable
- Metal housing

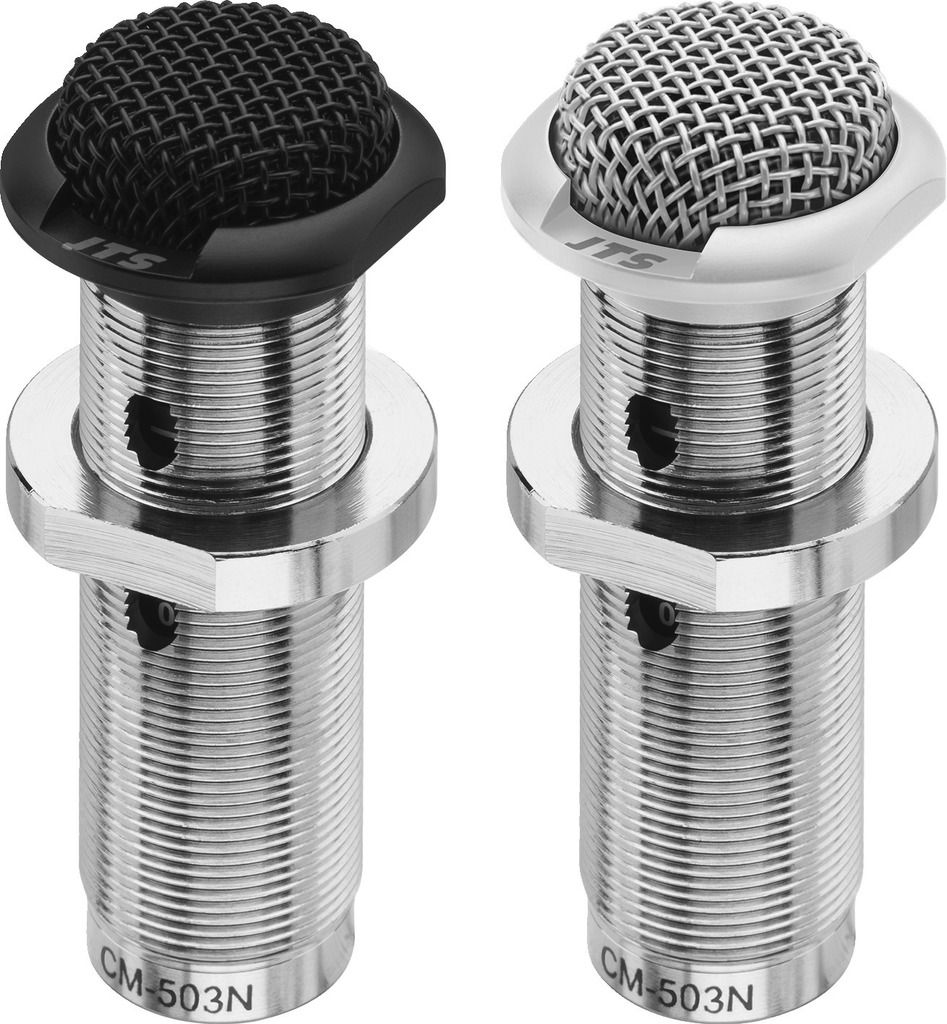

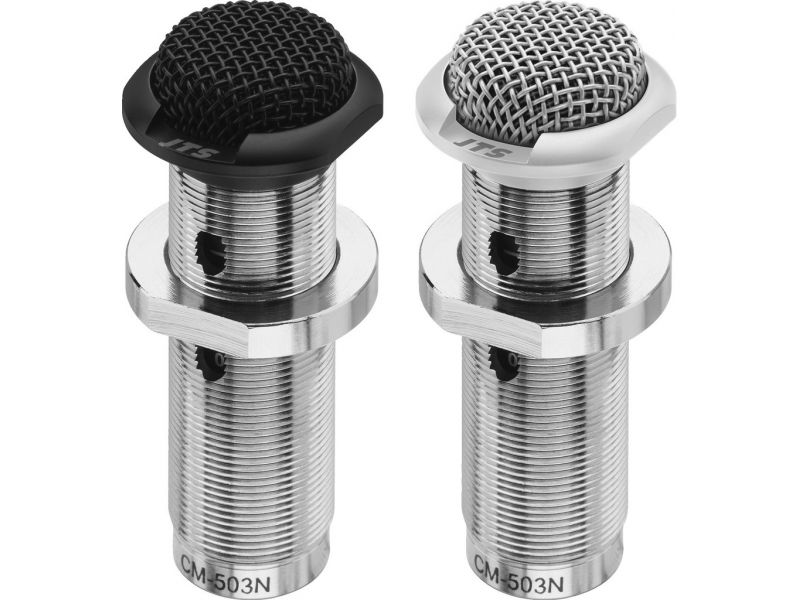

- Black (CM-503N/B) or white (CM-503N/W) cartridge cover
Manufacturer information:
JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw
EU-Representative:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Parametrii
| Description | built-in microphone |
| Transmission method | cable |
| Polar pattern | omnidir. |
| System | electret |

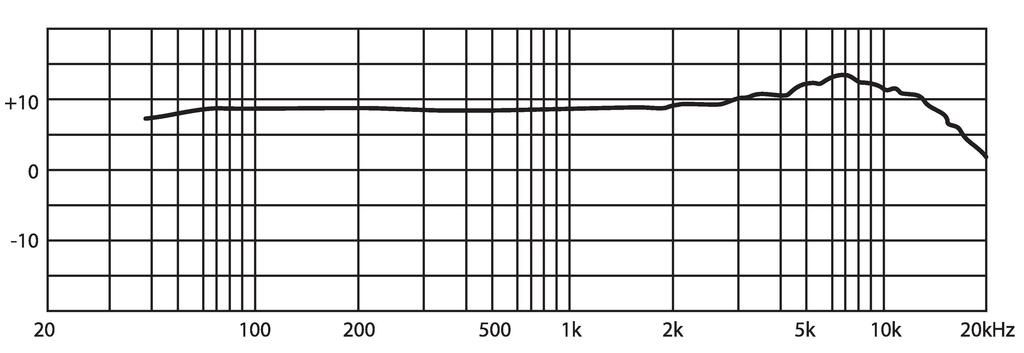

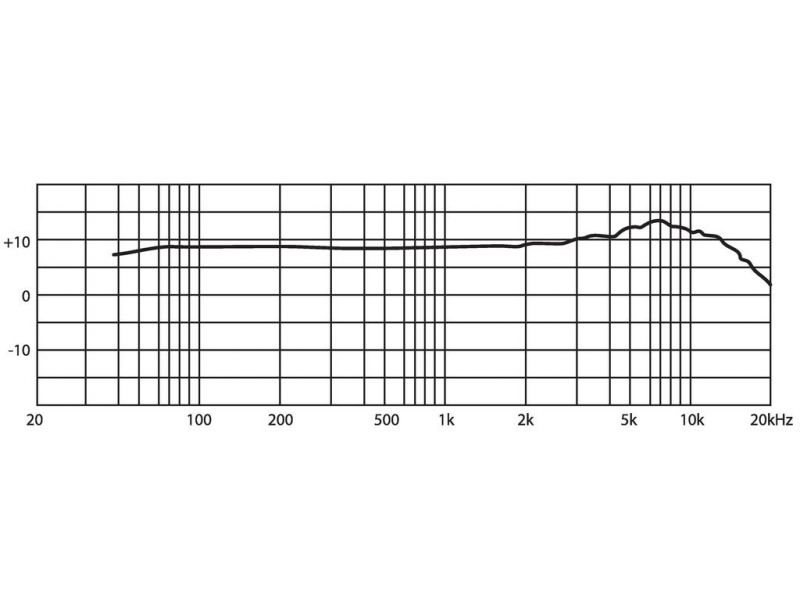

| Audio frequency range | 40-17,000 Hz |
| Nominal impedance | 220 Ω |
| Sensitivity | 4 mV/Pa |
| S/N ratio | 68 dB |
| Max. sound pressure | 140 dB |
| Power supply | DC 9-52 V, phantom power |
| Housing material | metal |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 31.6 x 69.7 x 30 mm |
| Weight | 67 g |
| Connection | XLR, bal. |
| Packaging dimensions (W x H x L) | 0.07 x 0.045 x 0.14 m |
| Gross weight | 0.143 kg |
| Net weight | 0.101 kg |
