CC-143

Cod EAN: 4050821808442

Connecting terminal from WAGO 3-conductor terminal with operating levers Individually combinable wires and cross sections from 0.14 to 4 mm2 Power rating: 450 V/32 A Continuous operating temperature: up to 85 °C Correct position of the conductor and...

Citeste mai mult

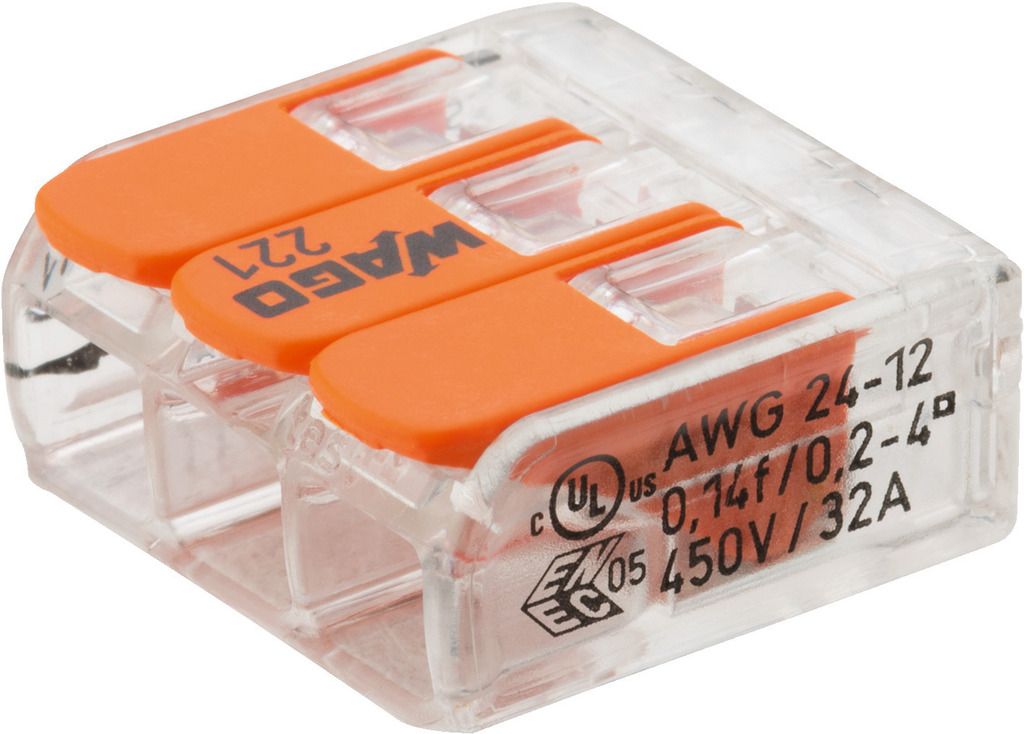

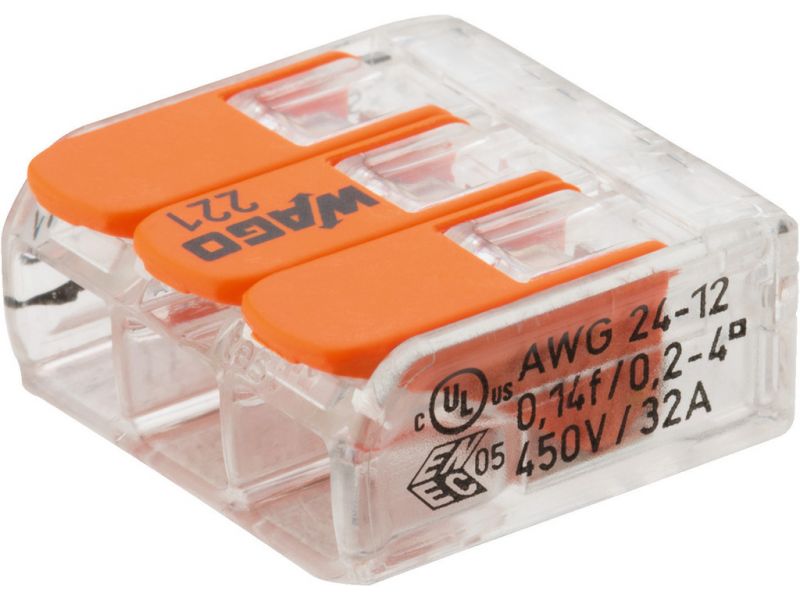

CC-143

Connecting terminal from WAGO
  • 3-conductor terminal with operating levers
  • Individually combinable wires and cross sections from 0.14 to 4 mm2
  • Power rating: 450 V/32 A
  • Continuous operating temperature: up to 85 °C
  • Correct position of the conductor and stripping length can be visually checked due to transparent housing
  • Two test slots for any standard test prod
  • Of very compact size, thus, ideally suited for the application in confined spaces
Manufacturer information:
WAGO GmbH & Co. KG
Hansastraße 27
32423 Minden
Germany
info.de@wago.com

Parametrii

Description connecting terminal
Type WAGO
Quantity 1
Features operating levers
Colour/colour coding transparent
Power rating 450 V/32 A
Dielectric strength 4 kV
Certification UL, ABS, LR
Pole number 3
Cable inlet AWG 24-12
Suitable cable cross section flexible conductors: 0.14-4 mm2 rigid conductors: up to 0.2-4 mm2
Connection 3-conductor terminal with operating levers
Admiss. ambient temp. 85 °C
Dimensions 18.7 x 8.3 x 18.6 mm
Weight 2.5 g
