CD-114/BT

Cod EAN: 4007754421507

CD and MP3 player, with Bluetooth receiver, USB port and SD card slot. Bluetooth receiver for wireless connection of laptops, smartphones or tablet PCs USB storage media can be connected directly For SD cards (SD/SDHC/SDXC) up to 128 GB (FAT16/FAT3...

Citeste mai mult

Intreaba despre produs
Cumpara acum

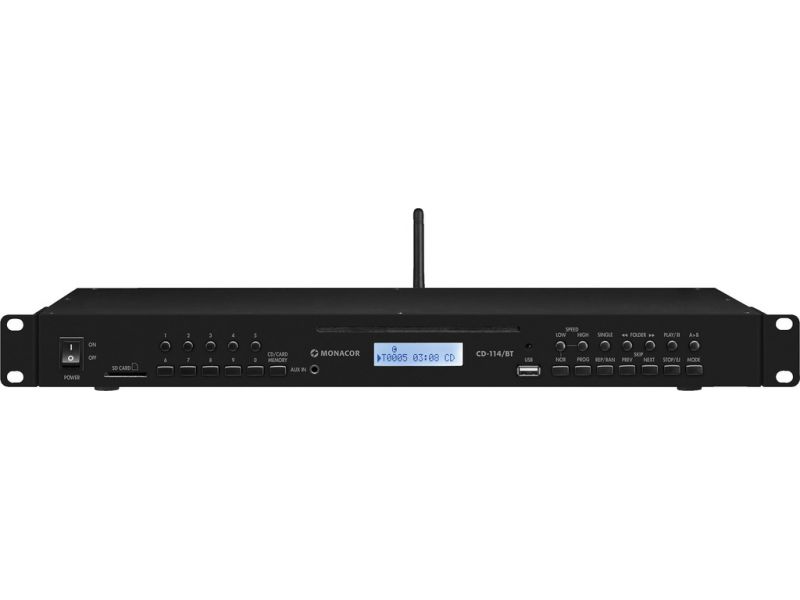

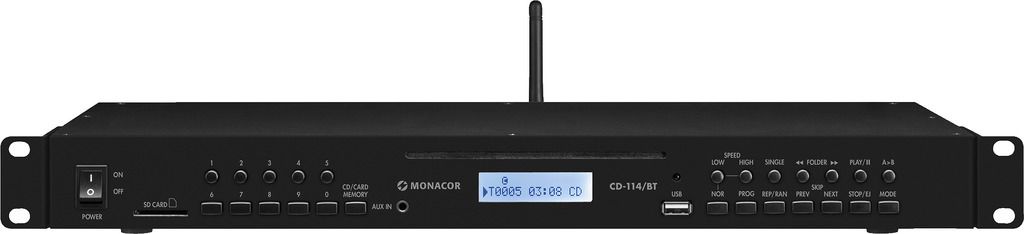

CD-114/BT

CD and MP3 player,
with Bluetooth receiver, USB port and SD card slot.
  • Bluetooth receiver for wireless connection of laptops, smartphones or tablet PCs
  • USB storage media can be connected directly
  • For SD cards (SD/SDHC/SDXC) up to 128 GB (FAT16/FAT32), not included in the scope of delivery
  • Anti-shock system
  • Supports ID3 tags
  • Autoplay function
  • Pitch control function for CD, SD and USB
  • Fast forward and rewind
  • Track programming, 10 tracks possible
  • Repeat function (repeat 1, repeat all, repeat folder)
  • Hot key feature

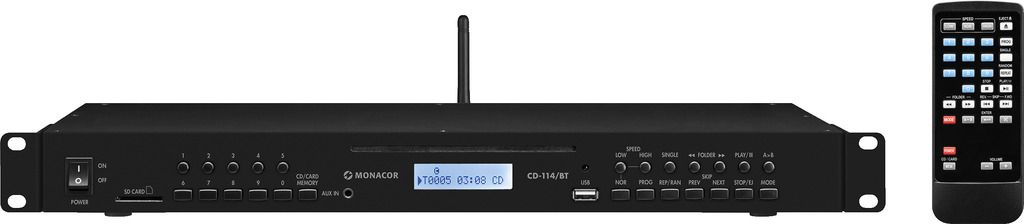

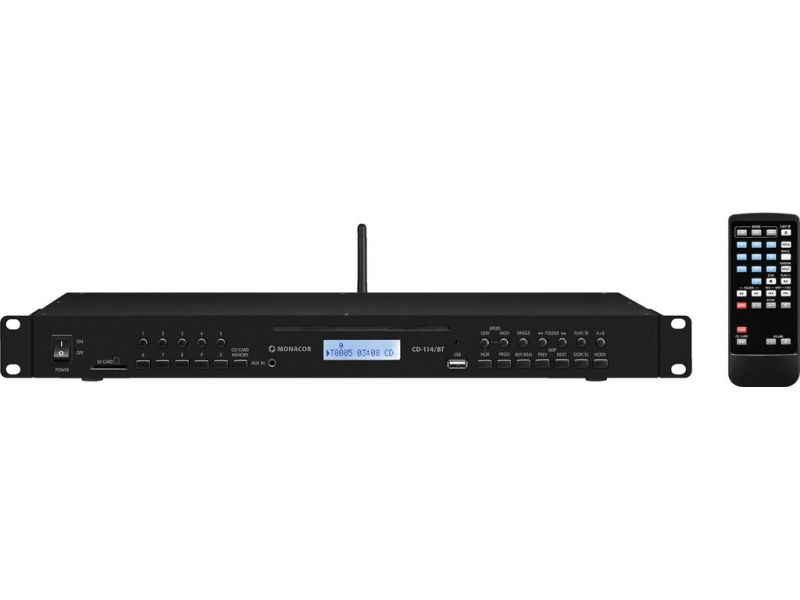

  • Supplied with infrared remote control
  • Aux input, 3.5 mm stereo jack
  • RS-232 interface
  • 230 V mains connection and additional 24 V connection
  • 482 mm (19") rack installation, 1 RU
  • Audio CD/CD-R/CD-RW/MP3 CD, MP3/WMA/CDDA
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Parametrii

Description CD and MP3 player
Media CD, MP3, USB, SD
Frequency range 20-20,000 Hz
THD 0.3%
Channel separation 60 dB
S/N ratio 60 dB
Output, analogue 0.8 V
Power supply ˜ 230 V/50 Hz/30 VA
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 30 VA
Power consumption, standby 9.2 VA
Operating voltage (possible alternative) 24 V
Admiss. ambient temp. 0-40 °C
Dimensions 482 x 44 x 245 mm, 1 RU
Weight 3.27 kg

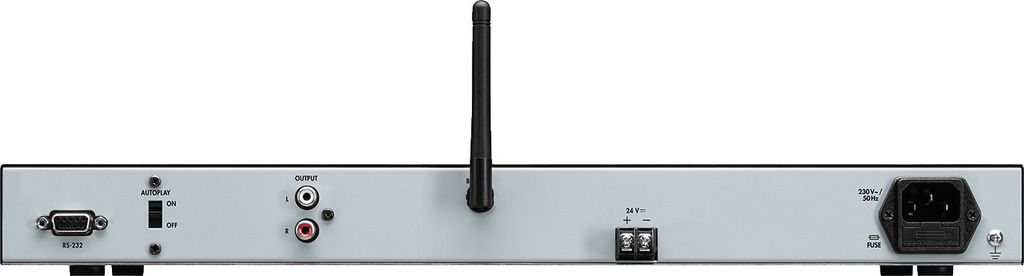

Connections 1 x RCA L/R 1 x 3.5 mm stereo jack 1 x RS-232
Packaging dimensions (W x H x L) 0.325 x 0.125 x 0.598 m
Gross weight 4.23 kg

Fisiere de descarcat

Fisa produsului CD-114/BT konformitaetserklaerung-ce-red konformitaetserklaerung-ukca-r Manual de utilizare
