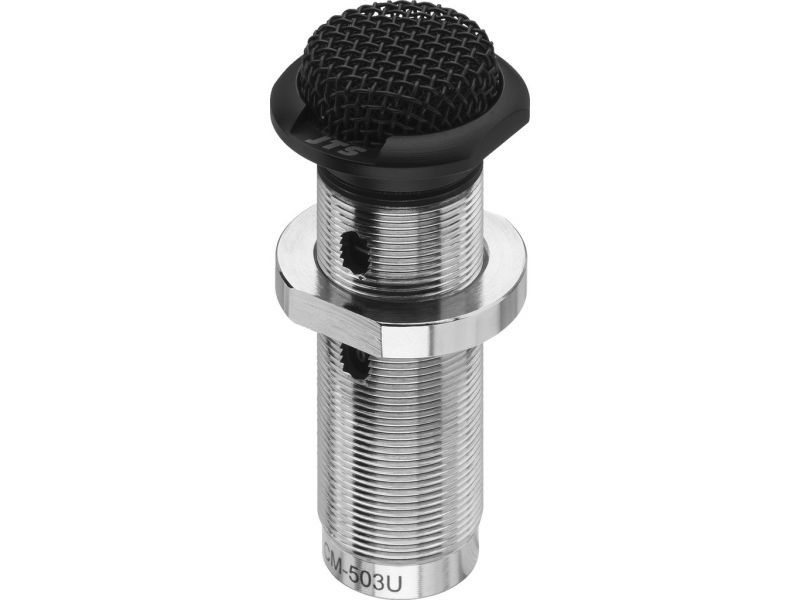

CM-503U/B

Cod EAN: 4007754247985

Built-in electret microphones Microphone cartridge with semi-cardioid polar pattern Compact boundary microphone Low cut switch (80 Hz) 10 dB attenuation, switchable Metal housing Black (CM-503U/B) or white (CM-503U/W) cartridge cover



CM-503U/B

Built-in electret microphones
  • Microphone cartridge with semi-cardioid polar pattern
  • Compact boundary microphone
  • Low cut switch (80 Hz)
  • 10 dB attenuation, switchable
  • Metal housing

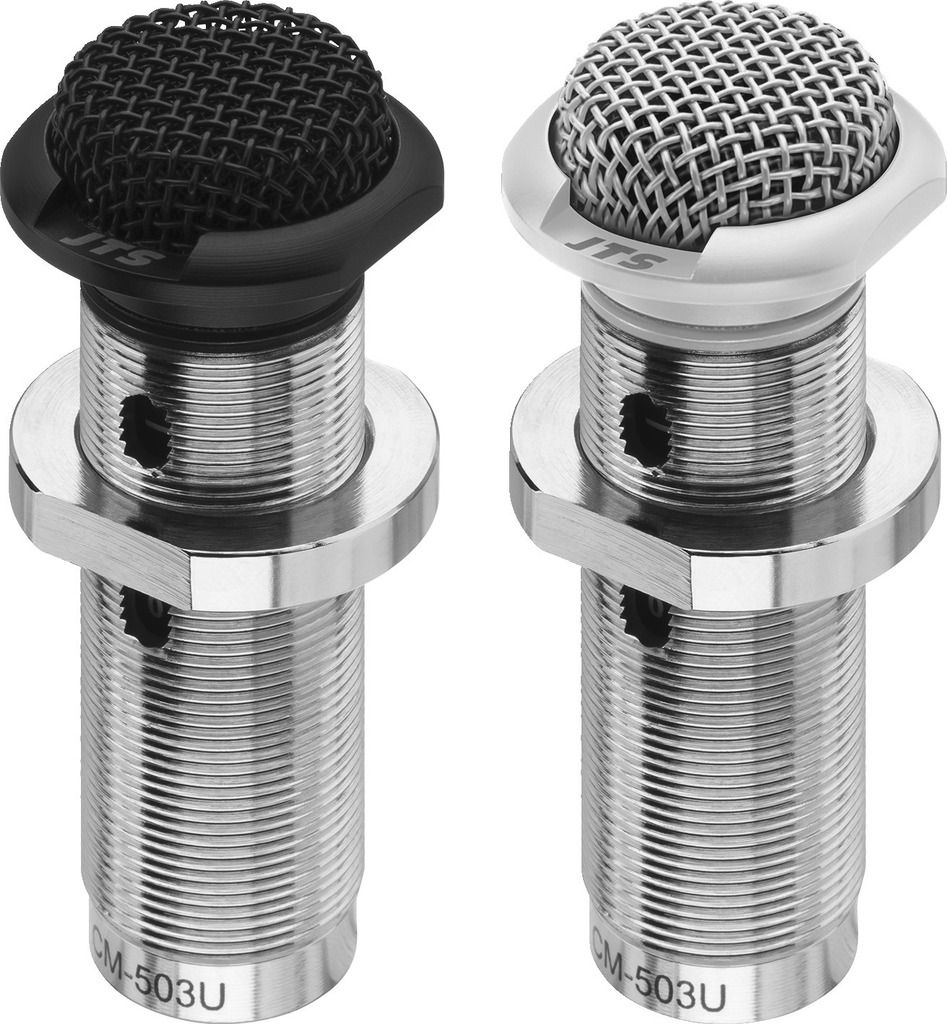

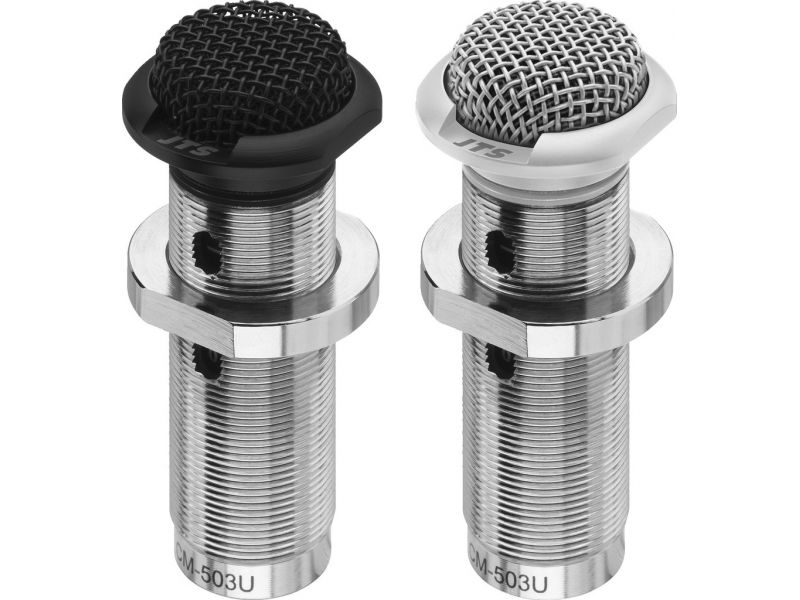

  • Black (CM-503U/B) or white (CM-503U/W) cartridge cover

Parametrii

Description built-in microphone
Transmission method cable
Polar pattern semi-cardioid
System electret

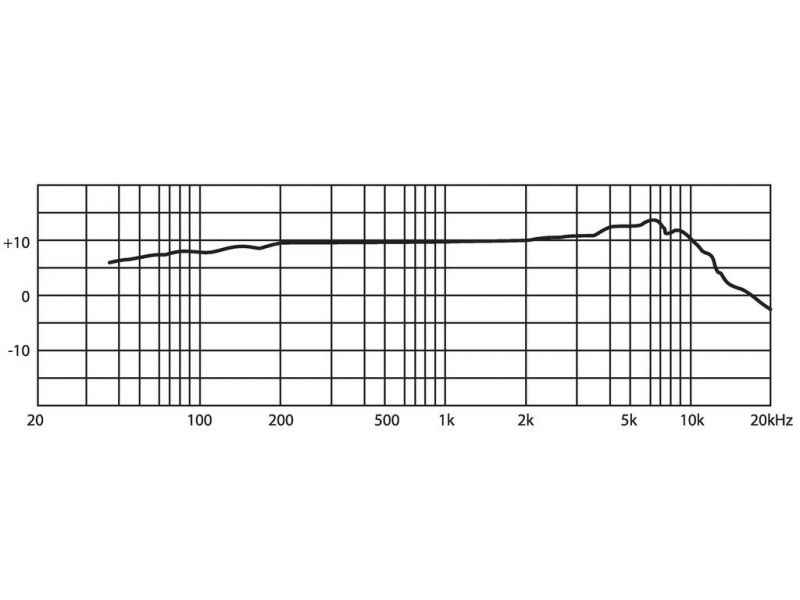

Audio frequency range 40-12,000 Hz
Nominal impedance 220 Ω
Sensitivity 4 mV/Pa
S/N ratio 70 dB
Max. sound pressure 140 dB
Power supply DC 9-52 V, phantom power
Housing material metal
Admiss. ambient temp. 0-40 °C
Dimensions 31.6 x 69.7 x 30 mm
Weight 67 g
Connection XLR, bal.
Packing dimensions (W x H x L) 0.073 x 0.045 x 0.14 m
Gross weight 0.137 kg
Net weight 0.101 kg
