DA-P20-130/T

Cod EAN: 4260590180056

Weatherproof PA sound projector, for wall mounting and with EN 54-24 certification. 100 V transmission technology 13 cm waterproof full range speaker 100 V transformer with power taps 20/10/5/2.5 W Connection via ceramic terminal and thermal fuse i...

Citeste mai mult

Intreaba despre produs
Cumpara acum


DA-P20-130/T

Weatherproof PA sound projector,
for wall mounting and with EN 54-24 certification.
  • 100 V transmission technology
  • 13 cm waterproof full range speaker
  • 100 V transformer with power taps 20/10/5/2.5 W

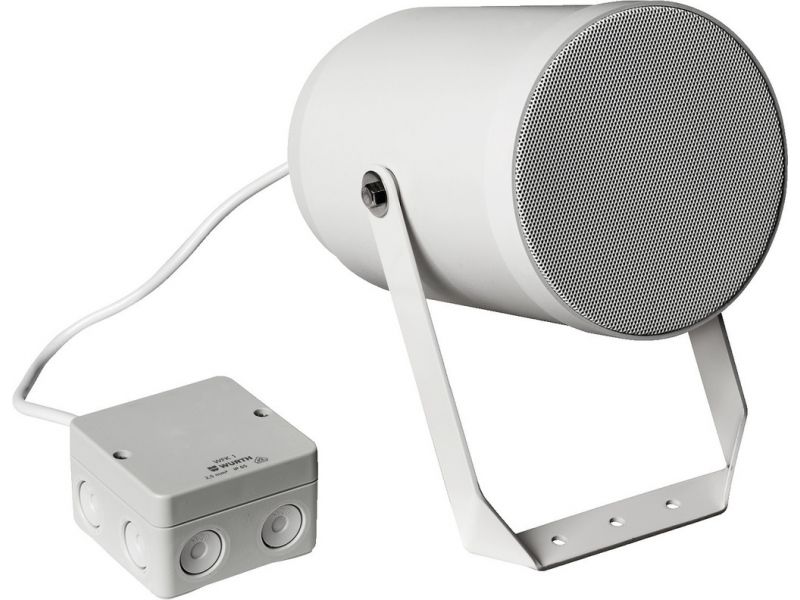

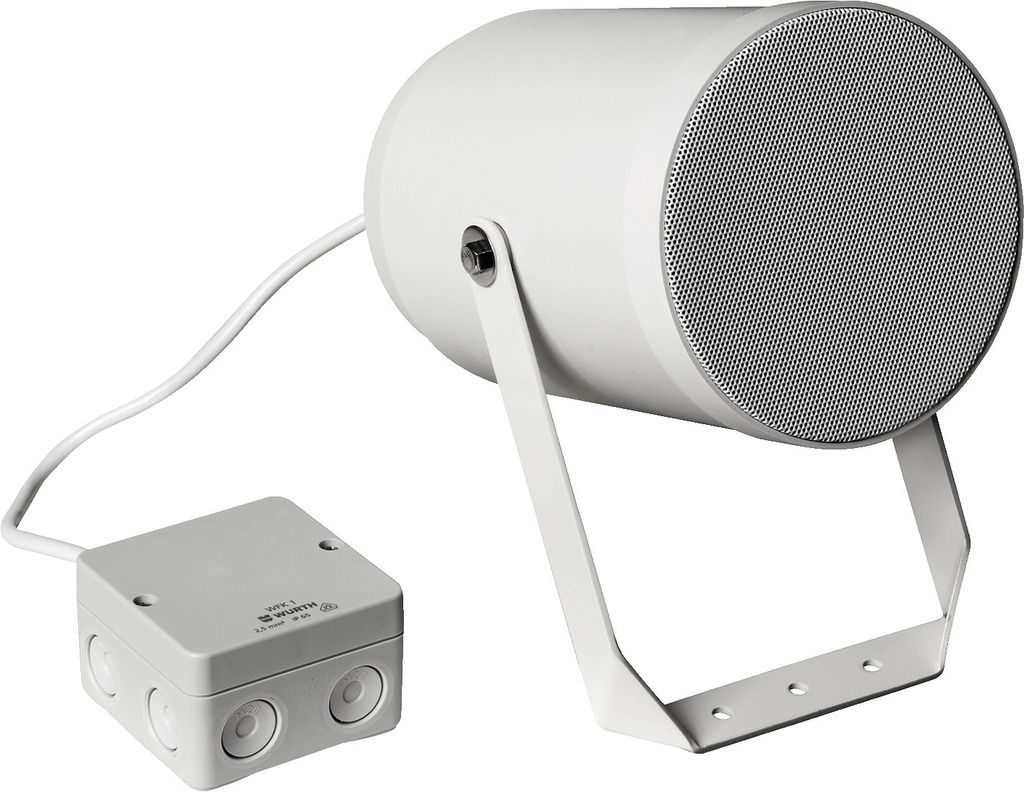

  • Connection via ceramic terminal and thermal fuse in the junction box (cable length: 1 m)

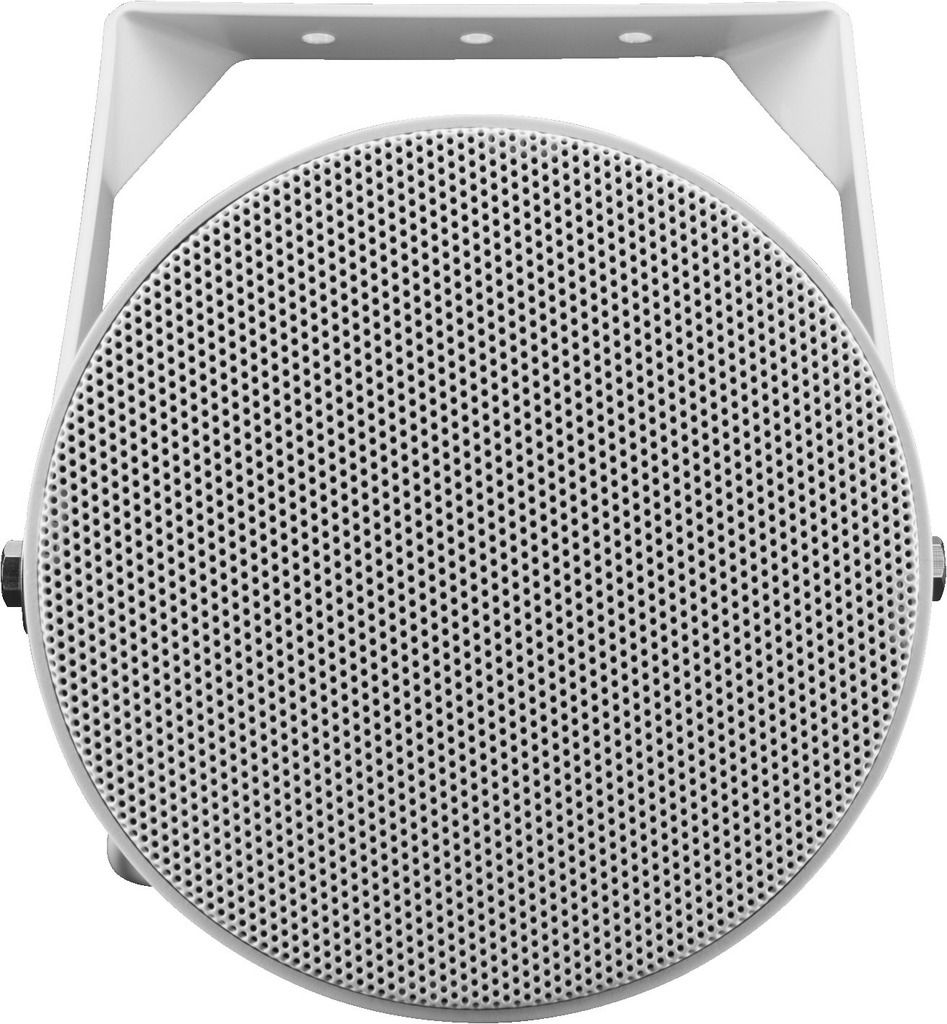

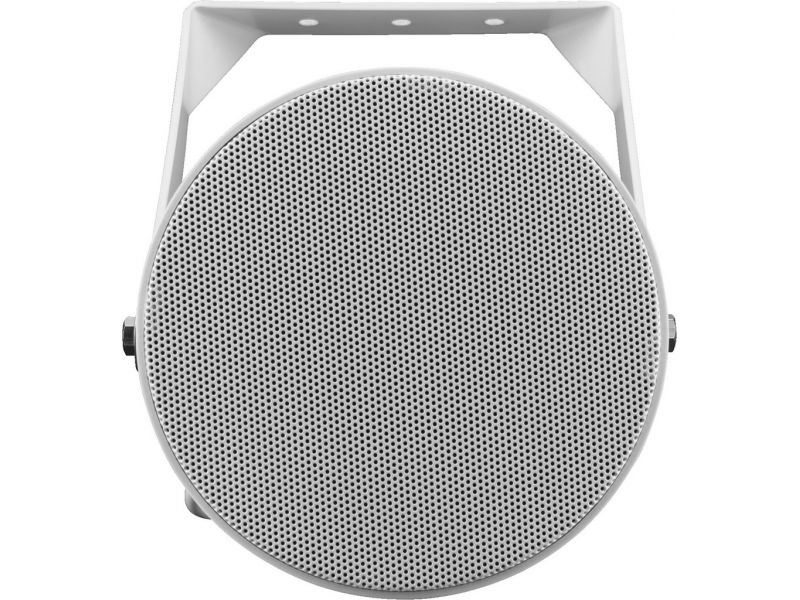

  • ABS plastic housing with front protective grille
  • Robust aluminium mounting bracket
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Active/passive passive
Transmission technology 100 V
Total power rating 20 W
Power rating (RMS) 20/10/5/2.5 W
Frequency range 150-20,000 Hz
Bass speaker 13 cm
Number of speakers 1
Speaker size 13 cm (5")
SPL 90 dB/W/m
Max. rated SPL 104 dB
Radiation angle/beam angle 110°
Radiation angle, horizontal 110°
Radiation angle, vertical 110°
Housing material ABS plastic
Colour white
Mounting device bracket
Protection class IP66
Admiss. ambient temp. -20 °C to +90 °C
Dimensions Ø 145 mm x 222 mm
Width Ø 145 mm
Height Ø 145 mm
Depth 222 mm
Weight 1.367 kg
Inputs ceramic screw terminal
Packaging dimensions (W x H x L) 0.175 x 0.295 x 0.18 m
Gross weight 1.625 kg
Net weight 1.367 kg

Fisiere de descarcat

Fisa produsului DA-P20-130/T
