DAR-1000-10

Cod EAN: 4007754429893

PA wall and ceiling speaker 100 V transmission technology via audio transmitter with 3-step power taps High performance full range speaker (20 cm) with very high sound pressure (96 dB/1 W/1 m) White metal housing with metal protective grille Supplied...

Citeste mai mult

Intreaba despre produs
Cumpara acum

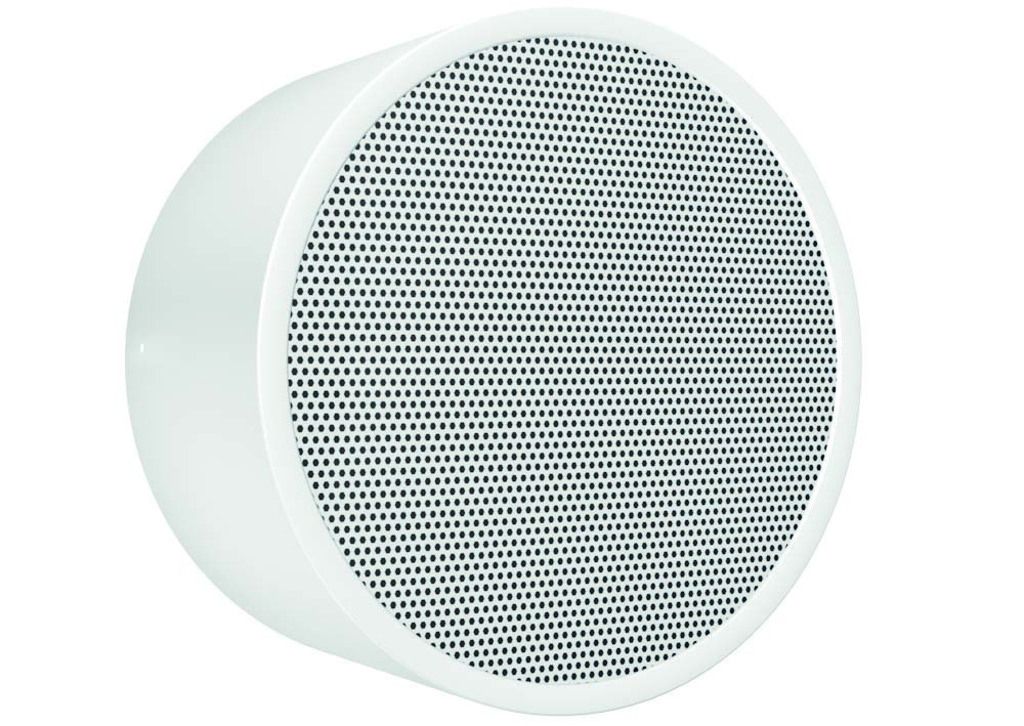

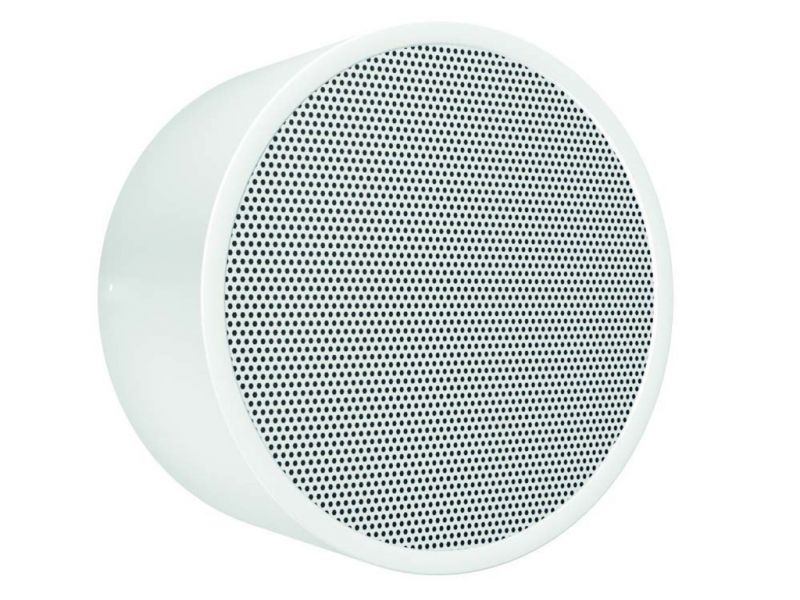

DAR-1000-10

PA wall and ceiling speaker
  • 100 V transmission technology via audio transmitter with 3-step power taps
  • High performance full range speaker (20 cm) with very high sound pressure (96 dB/1 W/1 m)
  • White metal housing with metal protective grille
  • Supplied with mounting material
Manufacturer information:
PÖSCHEL ETG e.K.
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de

Parametrii

Active/passive passive
Transmission technology 100 V
Total power rating 10 W
Power rating (RMS) 10/5/2.5 W
Frequency range 100-18,000 Hz
Number of speakers 1
Speaker size 20 cm (8")
SPL 96 dB/W/m
Max. rated SPL 105 dB
Radiation angle/beam angle 180° (500 Hz) 160° (1 kHz) 160° (2 kHz) 140° (4 kHz)
Radiation angle, horizontal 180° (500 Hz) 160° (1 kHz) 160° (2 kHz) 140° (4 kHz)
Radiation angle, vertical 180° (500 Hz) 160° (1 kHz) 160° (2 kHz) 140° (4 kHz)
Housing material metal
Colour White, RAL 9010
Mounting device Aluminium bracket
Dimensions Ø 220 mm x 100 mm
Width Ø 220 mm
Height Ø 220 mm
Depth 100 mm
Weight 2 kg
Inputs Pressure clamps
Packaging dimensions (W x H x L) 0.225 x 0.225 x 0.11 m
Gross weight 2.1 kg
Net weight 2 kg

Fisiere de descarcat

Fisa produsului DAR-1000-10
