DIB-110
Cod EAN: 4007754193305
DI transformer 10:1 Unshielded version with PCB connections Wideband version Change from unbalanced to balanced and vice versa Galvanic isolation to avoid/eliminate hum loops Max. input voltage: 5 V (1% THD/40 Hz) When installing unshielded trans...

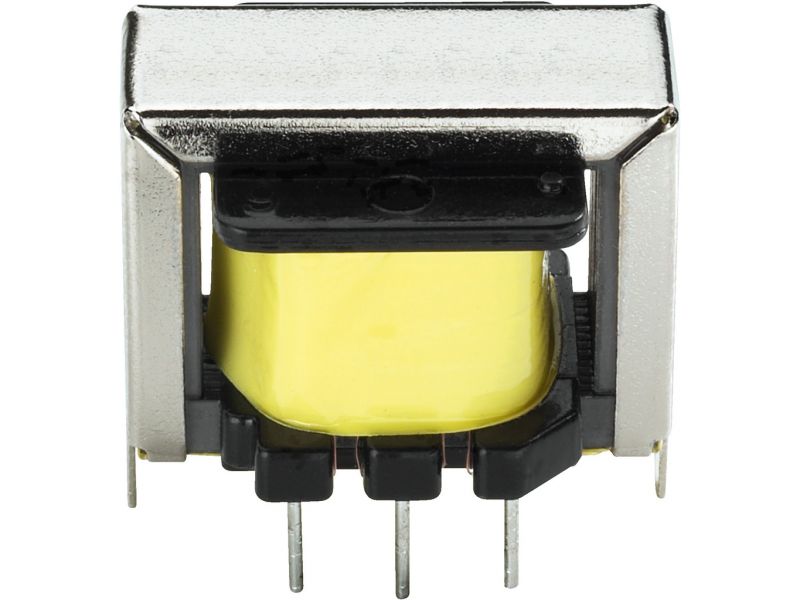

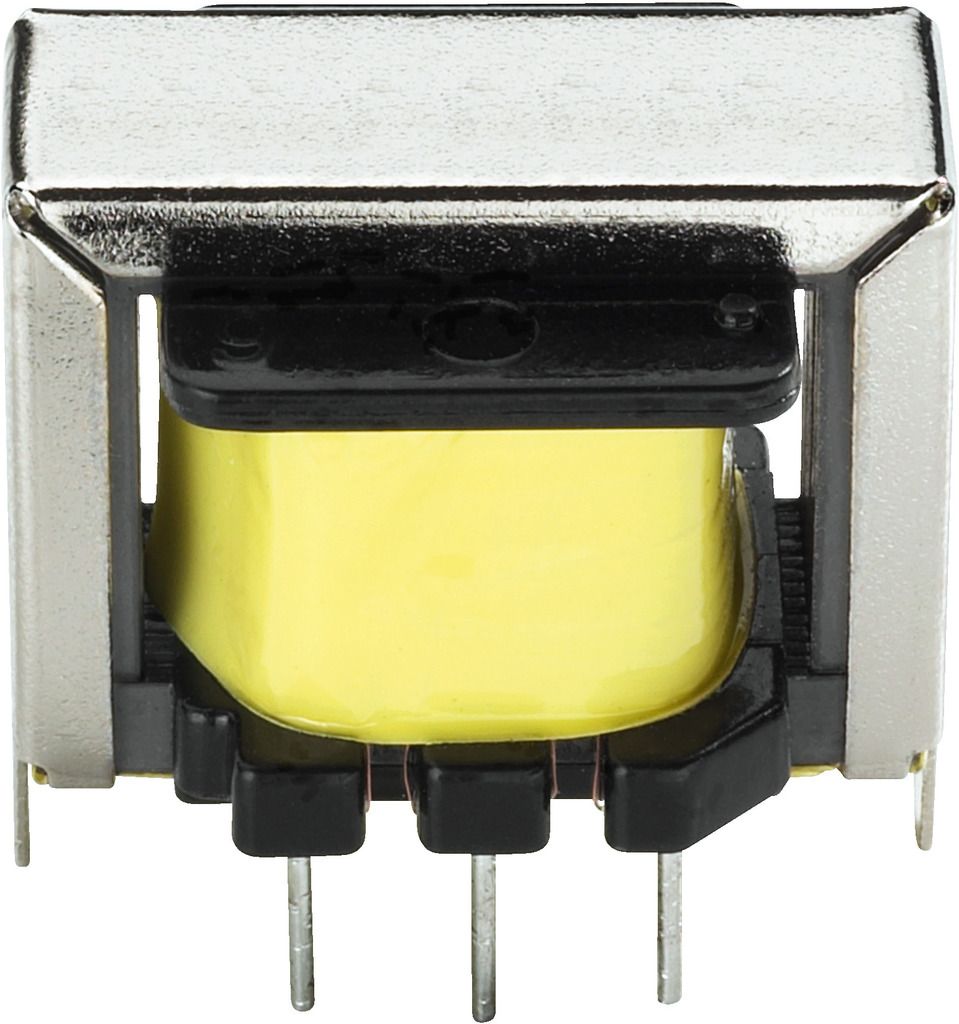

DIB-110

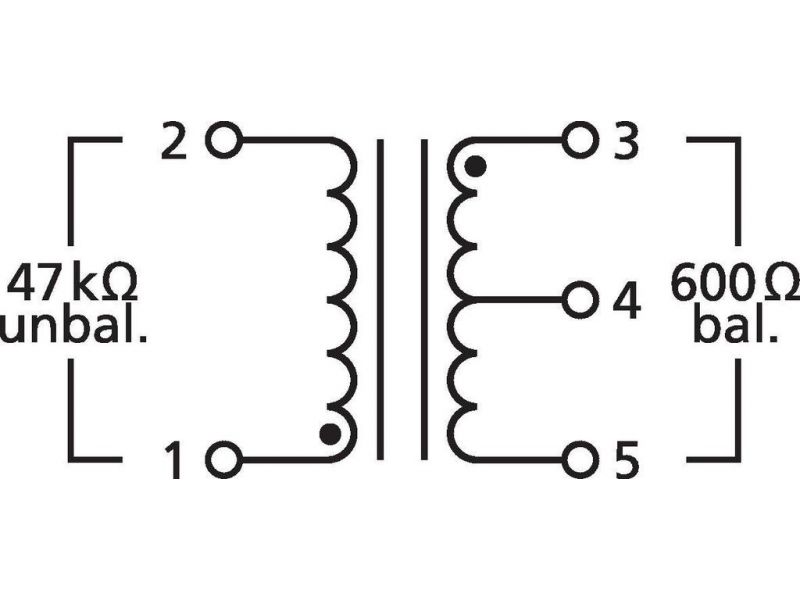

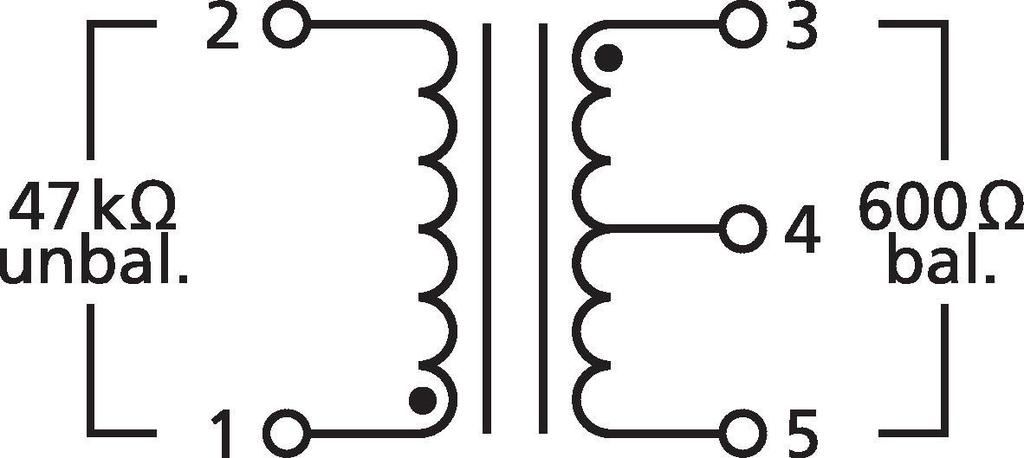

DI transformer 10:1
- Unshielded version with PCB connections
- Wideband version
- Change from unbalanced to balanced and vice versa
- Galvanic isolation to avoid/eliminate hum loops
- Max. input voltage: 5 V (1% THD/40 Hz)
When installing unshielded transformers into units with interference fields (e.g. power transformers), attention has to be paid to respective shielding measures.
Parametrii
| Description | DI box |
| Frequency range | 15-30,000 Hz |
| Input impedance | 47 kΩ, unbal. |
| Output impedance | 600 Ω, bal. |
| Transmission ratio | 10:1 |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 25 x 24 x 21 mm |
| Weight | 28 g |
| Inputs | PCB connections |
| Outputs | PCB connections |
