DJP-104USB

Cod EAN: 4007754196337

Stereo hi-fi turntable with USB port and integrated phono preamplifier USB port (Type-B) for high-quality and convenient digitalisation of analogue vinyl records via PC, adjustable USB audio level Stereo output via RCA jacks, switchable line/phono Be...

Citeste mai mult

Intreaba despre produs
Cumpara acum


DJP-104USB

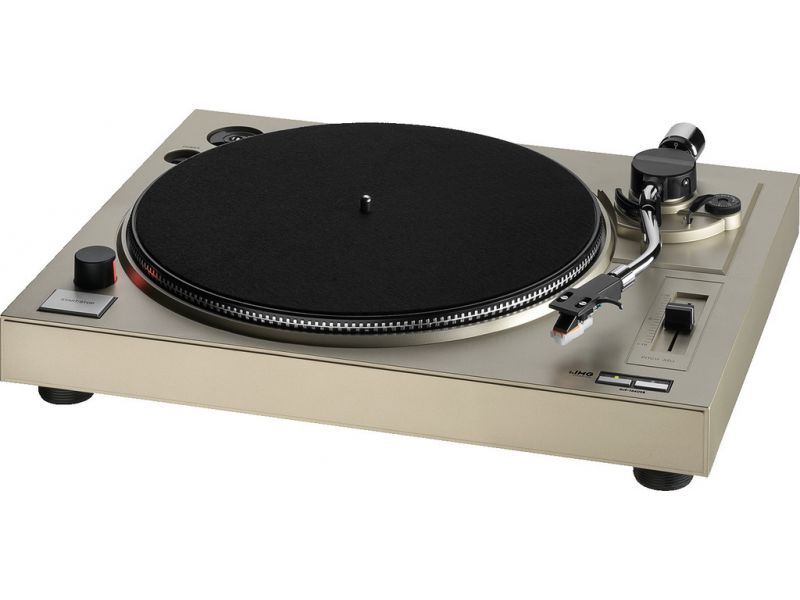

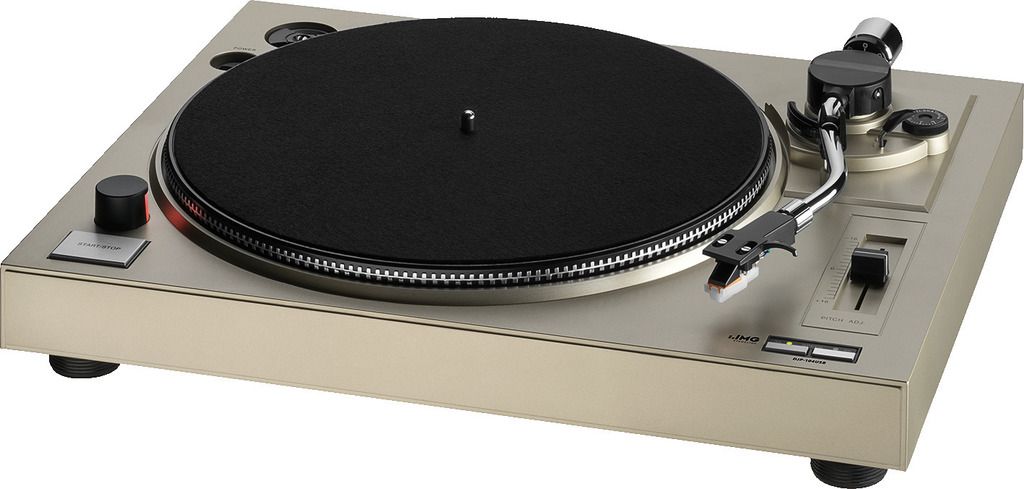

Stereo hi-fi turntable with USB port and integrated phono preamplifier
  • USB port (Type-B) for high-quality and convenient digitalisation of analogue vinyl records via PC, adjustable USB audio level
  • Stereo output via RCA jacks, switchable line/phono
  • Belt drive with quick start system
  • Magnet system
  • 2 speeds
  • Pitch control: ±16%
  • Metal pick-up arm and plastic turntable platter
  • Smoked acrylic glass cover, removable

(Supplied with felt slipmat)
Recording software is available as freeware on the Internet.
HiFi Test TV VIDEO 02/2009
PRICE TIP
Price-performance: excellent
“The DJP-104USB provides a fast, dynamic and vibrant sound. It is of solid workmanship and allows you to decide the format and data rate during recordings.”

OKEY 9-10/2007
“A clever idea: simply connect the turntable directly to the PC via USB cable. The digitalisation is very easy, convenient and quickly done.”

Computerbild 19/2007
“With its three-year warranty, the unit was top of the list in the test.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Parametrii

Turntable platter Ø 298 mm, plastic
Speeds 33⅓/45 rpm
Pitch control ± 16%
Starting torque 0.3 kg/cm
Starting time < 0.8 s
Wow and flutter < 0.15%
Rumble -40 dB unweighted,-55 dB weighted
Power supply ˜ 230 V/50 Hz/15 VA
Admiss. ambient temp. 0-40 °C
Dimensions 430 x 115 x 350 mm
Weight 2.9 kg
Outputs 1 x RCA L/RUSB Type-B jack

Fisiere de descarcat

Fisa produsului DJP-104USB konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
