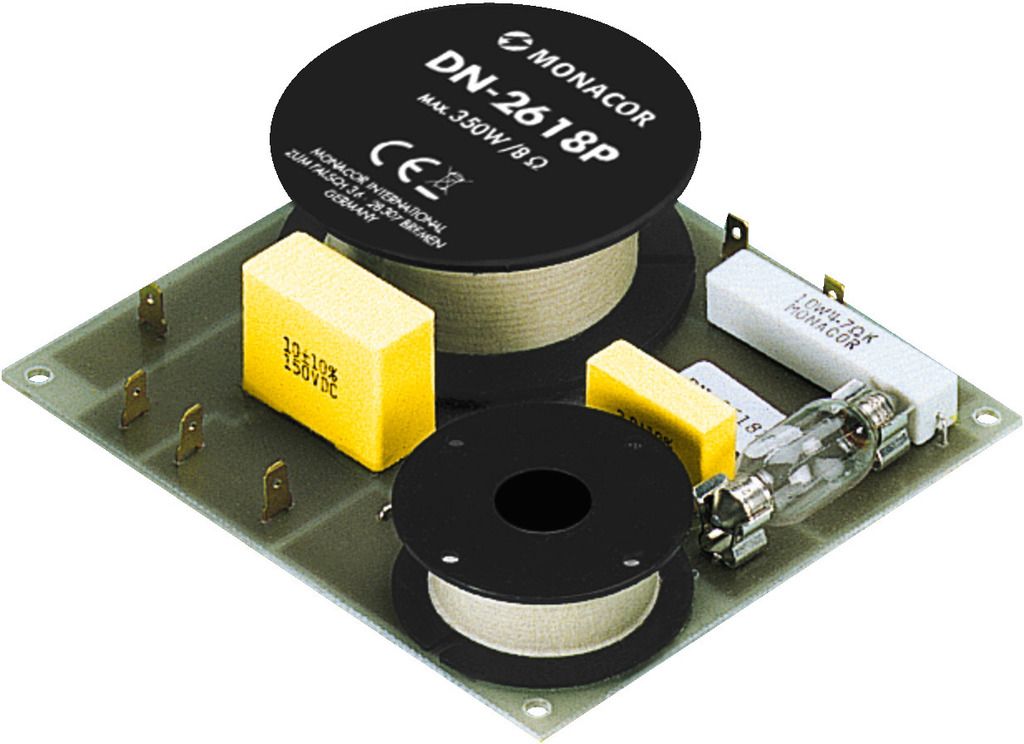

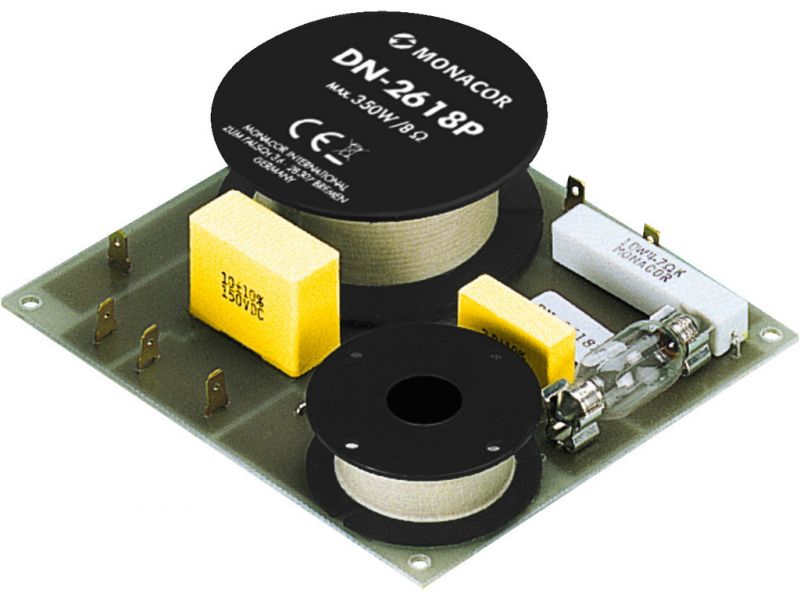

DN-2618P

Cod EAN: 4007754095661

2-way crossover network for 8 Ω Tweeter protection (P)Film capacitorsLow-pass filter also suitable for 4 Ω



DN-2618P

2-way crossover network for 8 Ω
  • Tweeter protection (P)
  • Film capacitors
  • Low-pass filter also suitable for 4 Ω

Parametrii

General Information 2-way
Output impedance 8 Ω (bass also 4 Ω)

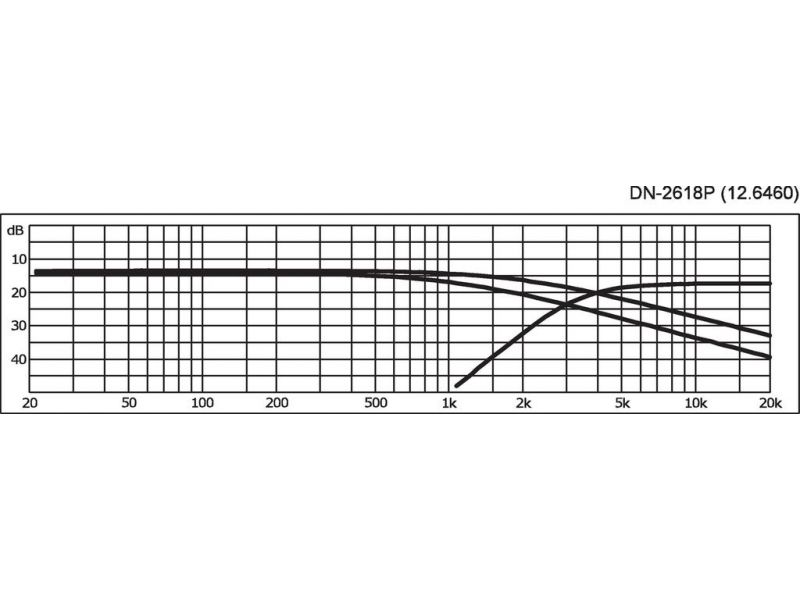

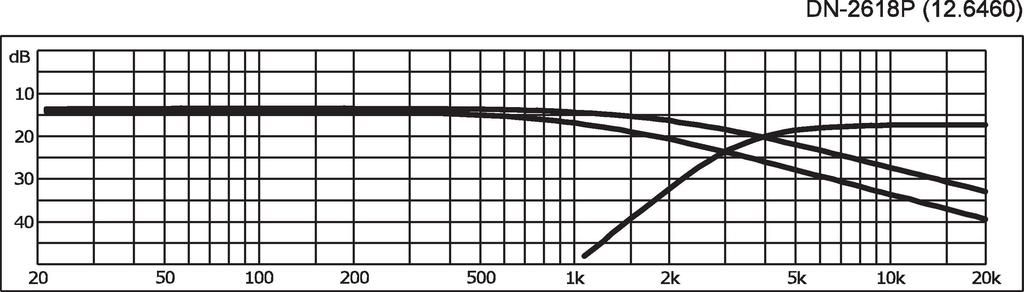

Crossover frequency 3 kHz (B = 4 Ω: 1.7 kHz)
Slope/oct. 6 dB/18 dB
Max. input power 350 W
Dimensions 125 x 32 x 110 mm
Weight 0.417 kg
