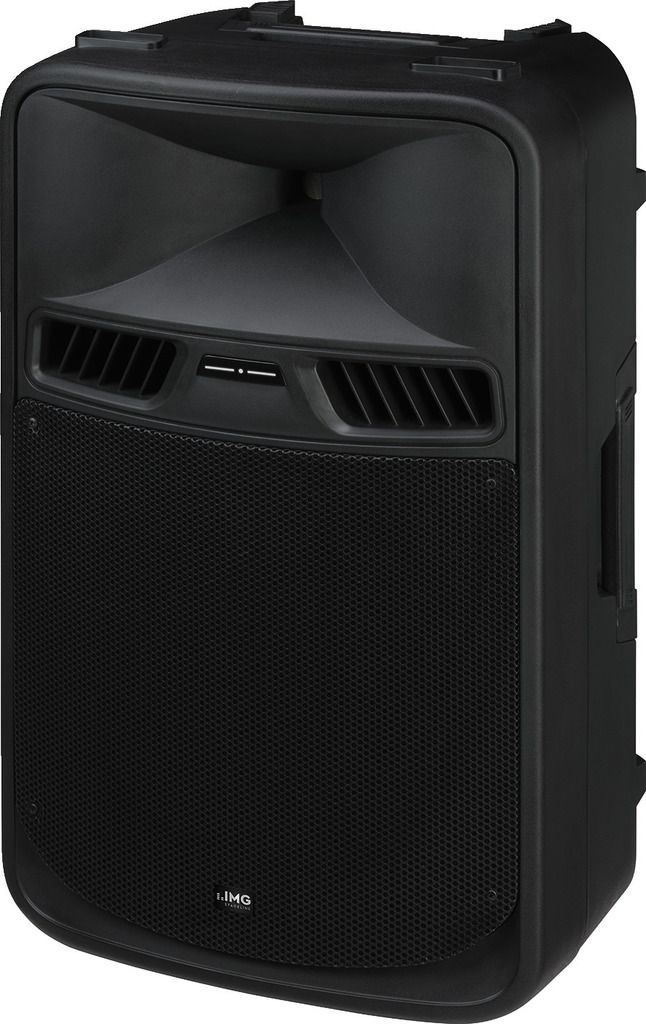

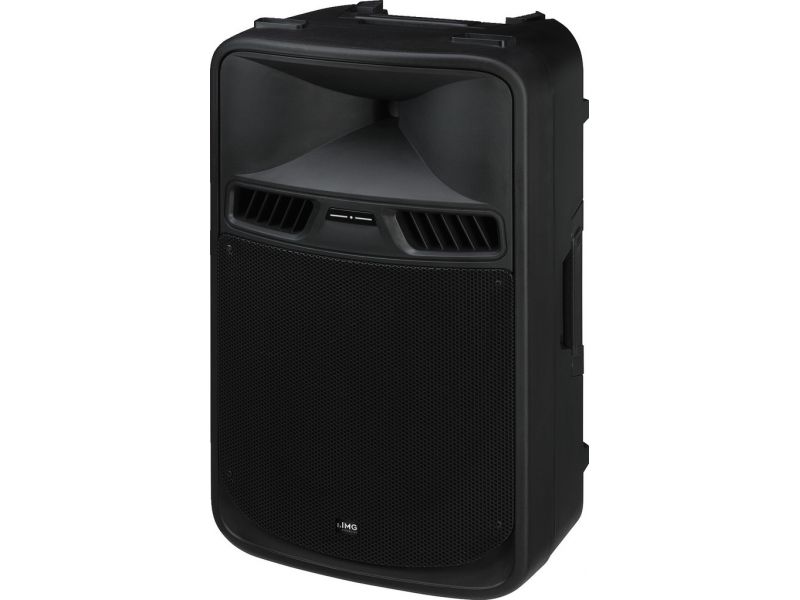

PAK-400 Series The PAK-400 series is suitable for general applications, features modern technologies and an individual sound tuning to meet various requirements. The amplifier system is a combination of class D for the bass and class A/B for the twee...
| Active/passive | active |
| Transmission technology | cable |
| Total output power | 700 W |
| Power rating (RMS) | 450 (350+100) W |
| Frequency range | 40-20,000 Hz |
| Input signal | 260 mV/10 kΩ (line),2 mV/10 kΩ (mic) |
| System | 15/2 full range |
| Bass speaker | 38 cm (15") bass speaker |
| Tweeter | 33 mm (1.3") tweeter |
| Number of speakers | 2 |
| Speaker size | 38 cm (15") |
| SPL | 98 dB/W/m |
| Max. rated SPL | 124 dB |
| Radiation angle/beam angle | H: 100°/V: 70° |
| Radiation angle, horizontal | 100° |
| Radiation angle, vertical | 70° |
| Housing material | plastic |
| Colour | black |
| Mounting device | M10 threaded inserts, stand sleeve |
| Admiss. ambient temp. | 0-40 °C |
| Power supply | ˜ 230 V/50 Hz/550 VA |
| Dimensions | 455 x 740 x 390 mm |
| Width | 455 mm |
| Height | 740 mm |
| Depth | 390 mm |
| Weight | 18.7 kg |

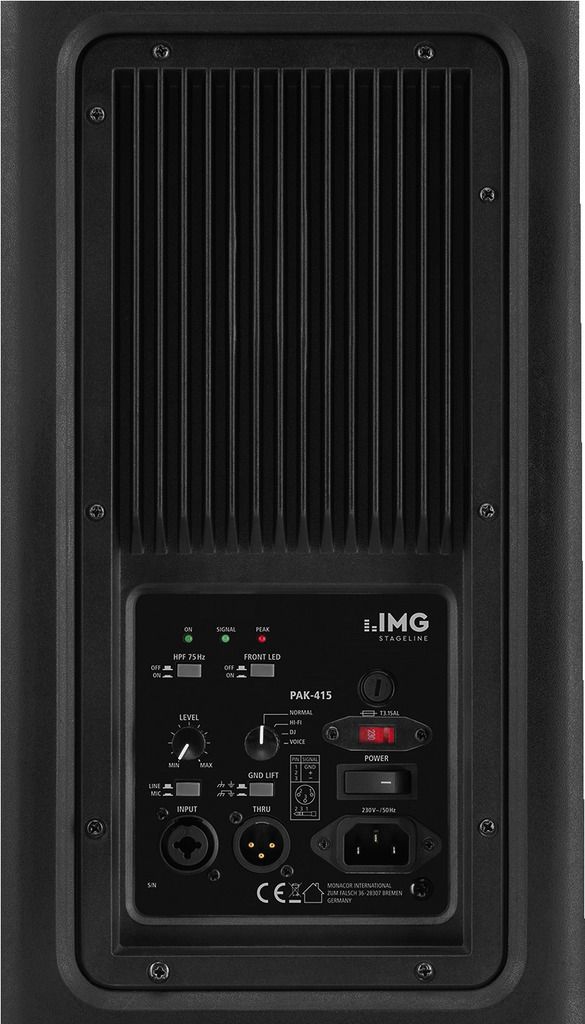

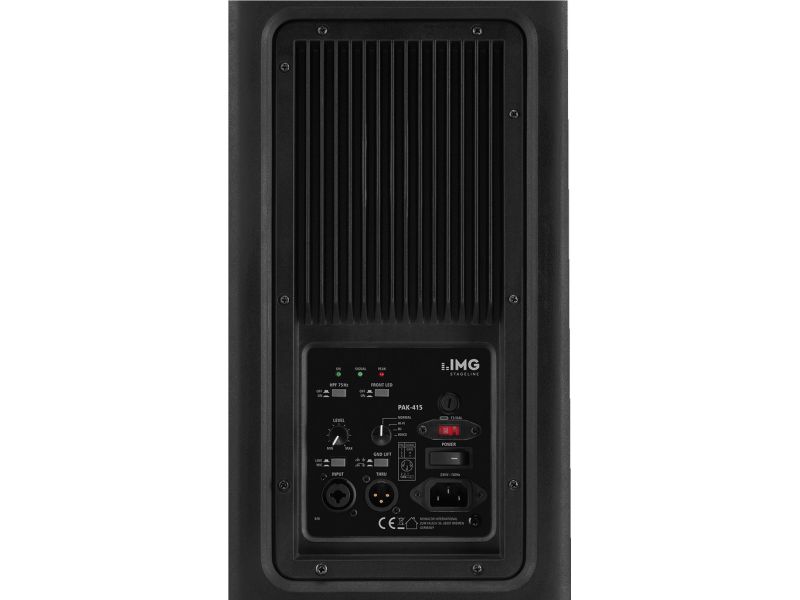

| Inputs | 1 x comb. XLR/6.3 mm (line/mic) |
| Outputs | 1 x XLR, par. out |
| Other features | 4 selectable presets switchable high-pass filter: 75 Hz |
| Packaging dimensions (W x H x L) | 0.48 x 0.84 x 0.54 m |
| Gross weight | 21.82 kg |
| Net weight | 19.16 kg |
