PSUB-418AK

PAK-400 Series
The PAK-400 series is suitable for general applications, features modern technologies and an individual sound tuning to meet various requirements. The amplifier system is a combination of class D for the bass and class A/B for the tweeter. With practice-oriented presets, it is easy to find the perfect sound and with the high-pass filter to be activated as required at 75 Hz, this series can easily be matched to subwoofer systems like the PSUB-418AK.
Active power PA subwoofer, 1,000 W

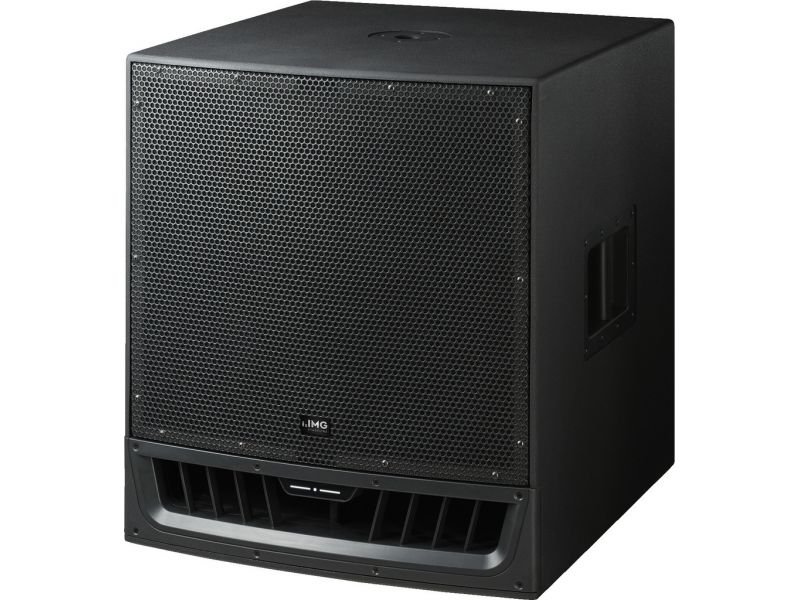

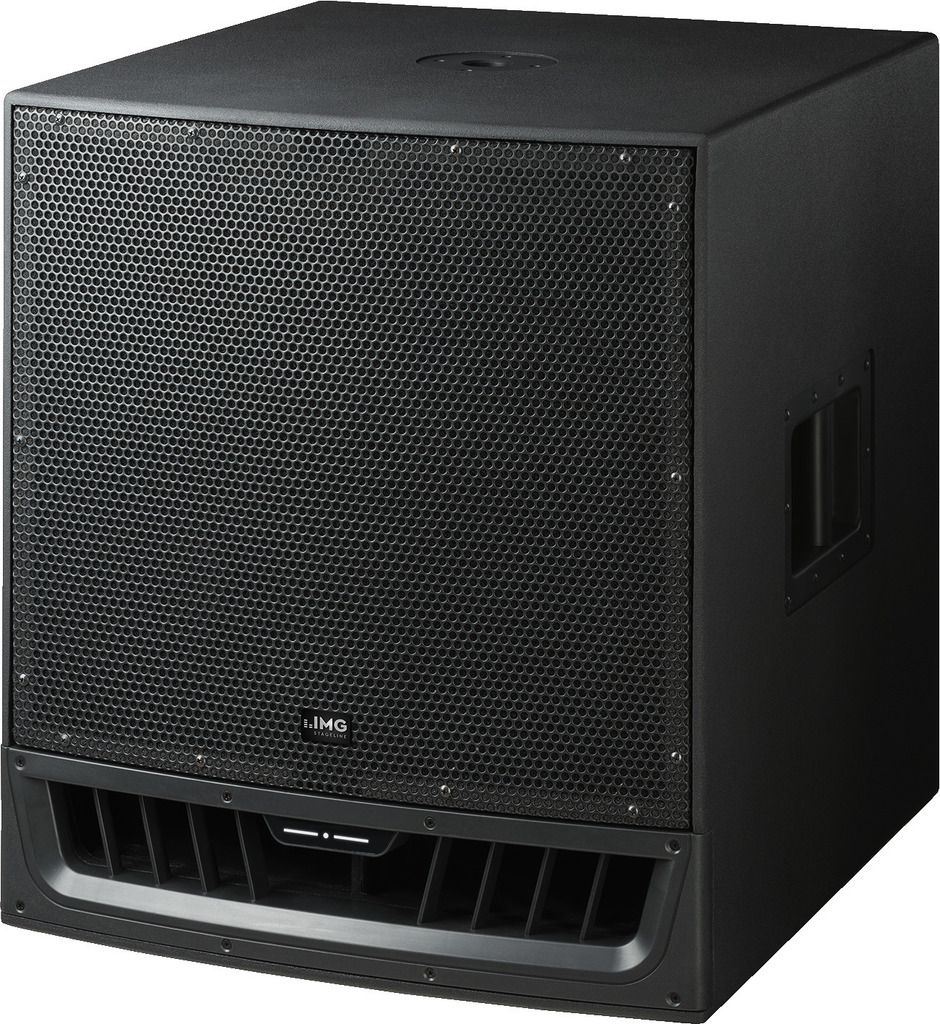

  • Compact and lightweight 46 cm (18") subwoofer with class D amplifier
  • Cabinet made of birch plywood with stand sleeve, carrying handles and castors
  • Bass-reflex system with sound pressure at nominal power: 127 dB

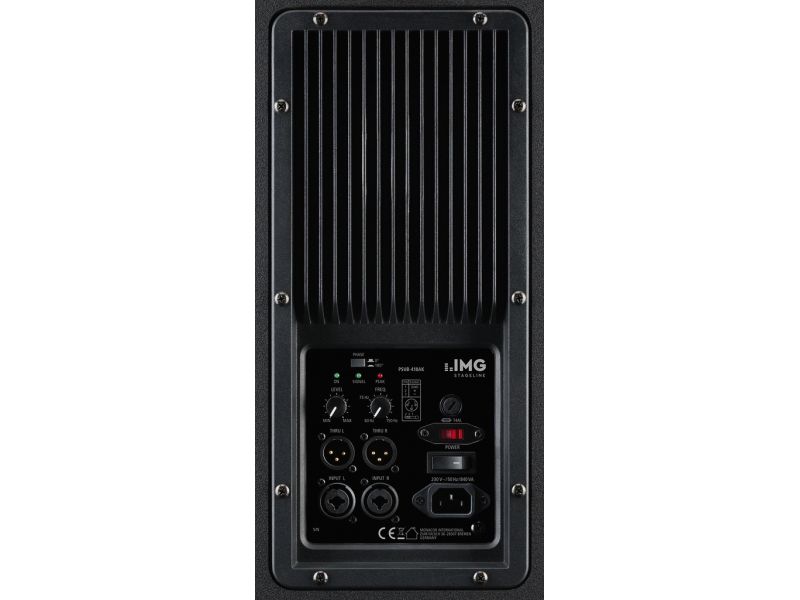

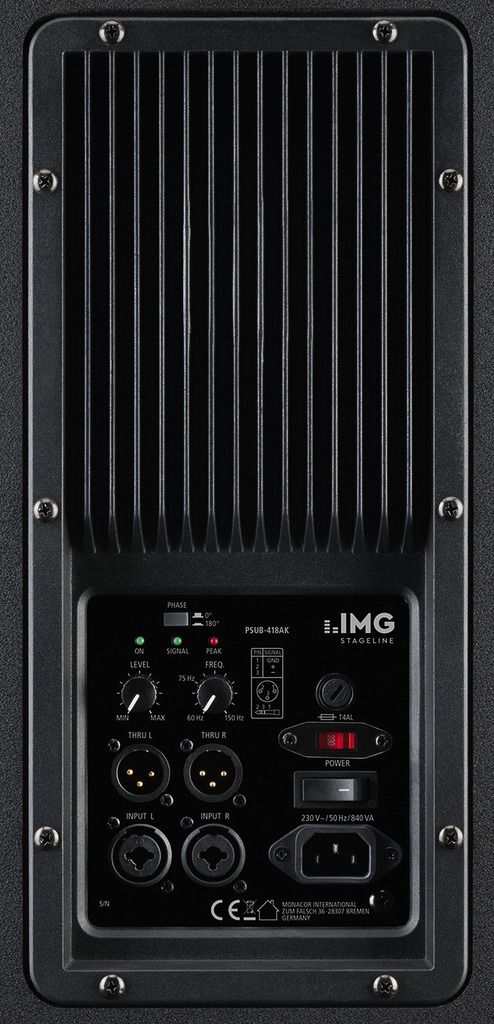

  • Adjustable crossover frequency: 60-150 Hz, gain control, phase reversal switch
  • Balanced inputs: comb. XLR/6.3 mm and parallel XLR outputs
  • LED indicators for power, signal and peak/clip
  • Stand sleeve, carrying handles, rubber feet
  • Supplied with castors
TASTENWELT 06/2015
“The PAK-400 series from IMG Stage Line features individual adjustment facilities using modern technology which makes it suitable for most versatile applications; definitely a concept that works: this series provides a perfect system for everyone, including keyboard entertainers, combinations of entertaining music and DJs.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety and warning notices
The appliance is supplied with life-threatening mains voltage. Therefore, never tamper with it yourself and do not insert anything into the ventilation openings. There is a risk of electric shock.
Do not operate the appliance and disconnect the mains plug from the socket immediately if there is visible damage to the appliance or the mains cable, if a defect is suspected after a fall or similar, or if malfunctions occur. Always return the appliance to a specialist workshop for repair.
Only use the device indoors and protect it from dripping and splashing water, high humidity and heat (permissible operating temperature range 0 - 40 °C).
Never set the speaker volume very high. High volumes can damage your hearing in the long term!
Never pull the mains plug out of the socket by the cable, always grasp the plug.
If the appliance is to be taken out of service for good, hand it over to a local recycling centre for environmentally friendly disposal.

Parametrii

Active/passive active
Transmission technology cable
Total output power 1,000 W
Power rating (RMS) 600 W
Frequency range 35-150 Hz
Input signal 1.5 V/55 kΩ
System bass-reflex
Bass speaker 46 cm (18") bass speaker
Number of speakers 1
Speaker size 46 cm (18")
SPL 97 dB/W/m
Max. rated SPL 127 dB
Radiation angle/beam angle omnidirectional
Housing material birch plywood
Colour black
Mounting device stand sleeve
Admiss. ambient temp. 0-40 °C
Power supply ˜ 230 V/50 Hz/840 VA
Dimensions 560 x 660 x 600 mm(w/o castors)
Width 560 mm
Height 660 mm
Depth 600 mm
Weight 38 kg
Inputs comb. XLR/6.3 mm input (L/R)
Outputs XLR: par. out (L/R)
Packaging dimensions (W x H x L) 0.68 x 0.74 x 0.83 m
Gross weight 44.4 kg
Net weight 38 kg

Fisiere de descarcat

Fisa produsului PSUB-418AK konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
