DIB-100

Cod EAN: 4007754004021

DI Boxes For an optimum signal transmission from musical instruments to a mixer or amplifier. By using a transformer coupling, interferences due to matching problems, e.g. hum loops, are prevented to a large extent. Input and output are galvanically...

Citeste mai mult

Intreaba despre produs
Cumpara acum

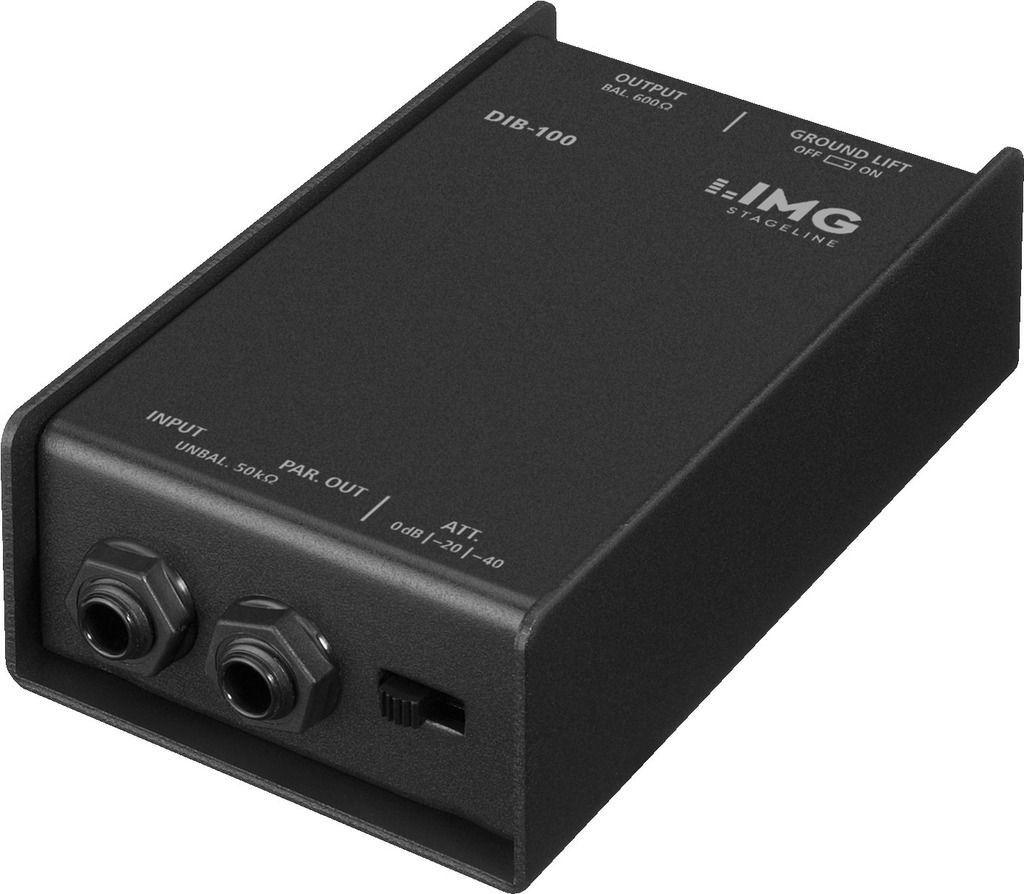

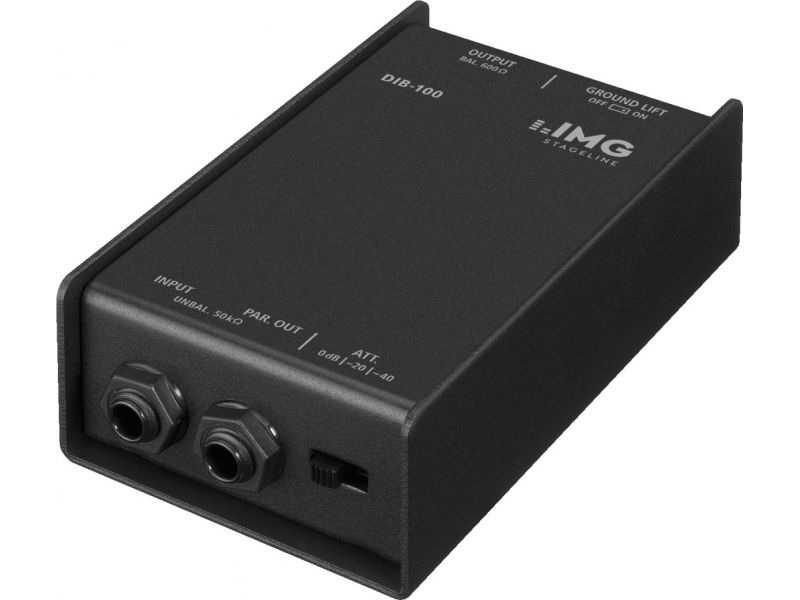

DIB-100

DI Boxes
For an optimum signal transmission from musical instruments to a mixer or amplifier. By using a transformer coupling, interferences due to matching problems, e.g. hum loops, are prevented to a large extent. Input and output are galvanically isolated.
For adapting line levels, please use units of the LTR series!
DI box
  • 3-fold attenuation switch (0/-20/-40 dB)

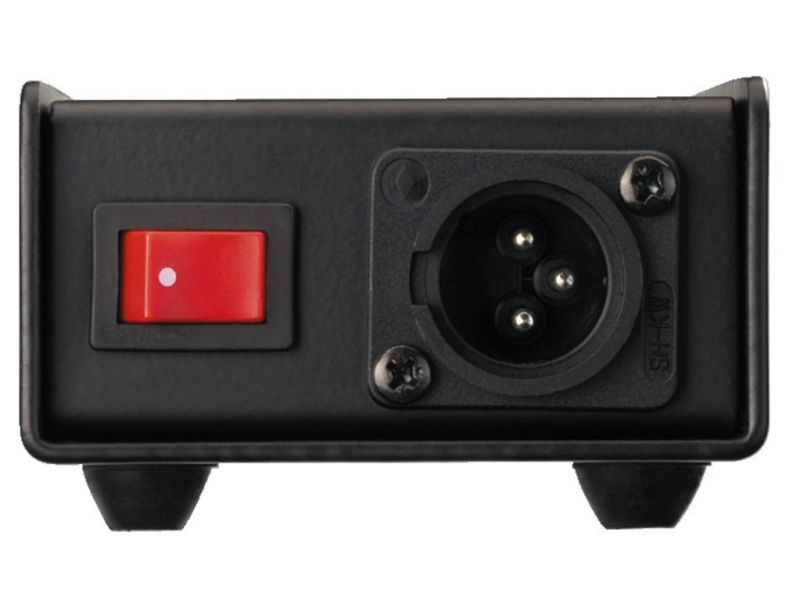

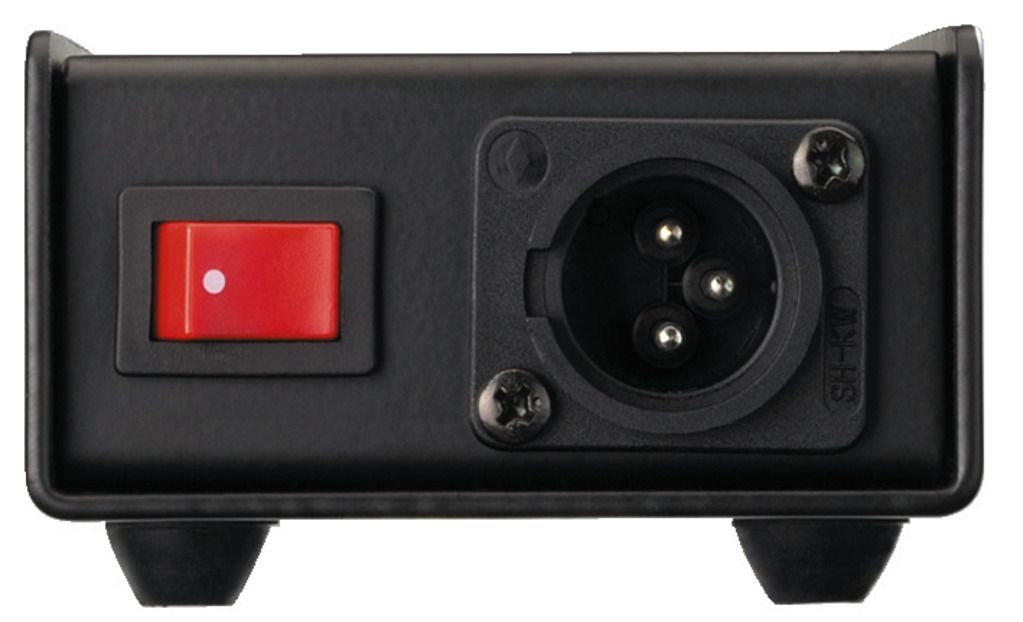

  • Ground lift switch
  • Instrument feed-through output
  • Wideband balancing transformer
  • Robust metal housing
PRODUCTION PARTNER 04/2013
“The measured values and workmanship give no reason for criticism. When considering the price, too, you can go wrong.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Parametrii

Description DI box
Frequency range 15-30,000 Hz
Input impedance 50 kΩ
Output impedance 600 Ω (bal.), 50 kΩ (unbal.)
Gain 0/-20/-40 dB
Transmission ratio 10:1
Admiss. ambient temp. 0-40 °C
Dimensions 74 x 45 x 130 mm
Weight 560 g
Inputs 1 x 6.3 mm jack, unbal
Outputs 1 x 6.3 mm jack, unbal., par. out XLR, bal.

Fisiere de descarcat

Fisa produsului DIB-100 konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
