PA-324

Cod EAN: 4007754238976

Mono PA mixing amplifier 1 x 240 W 3 microphone inputs, one of which is a balanced input Mic 1/line 1 with adjustable input sensitivity, priority circuit and adjustable automatic talkover 2 stereo line inputs 1 telephone input for telephone systems w...

Citeste mai mult

Intreaba despre produs
Cumpara acum


PA-324

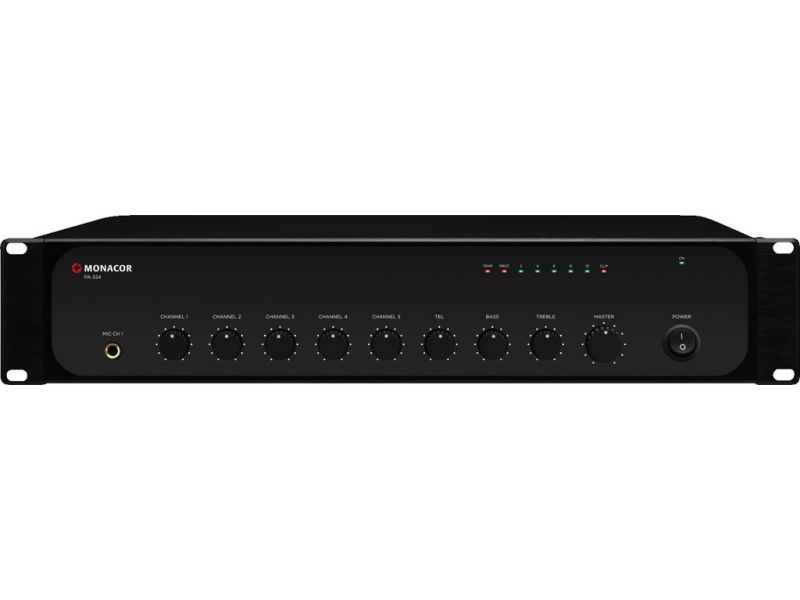

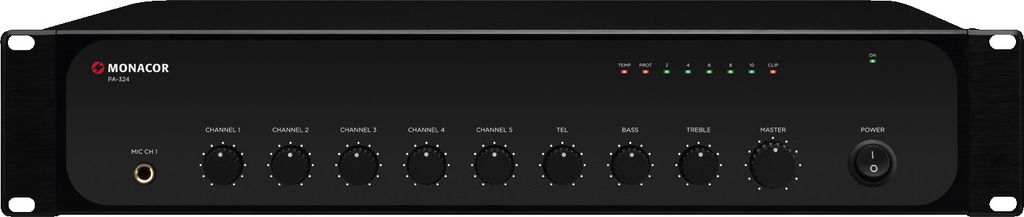

Mono PA mixing amplifier
  • 1 x 240 W
  • 3 microphone inputs, one of which is a balanced input
  • Mic 1/line 1 with adjustable input sensitivity, priority circuit and adjustable automatic talkover
  • 2 stereo line inputs
  • 1 telephone input for telephone systems with audio output
  • Speaker outputs via screw terminal contacts
  • 1 line output
  • Input and output level controls
  • 2-way tone control for the output
  • 48 V phantom power for channel 1, can be activated as required
  • 482 mm (19") rack installation with supplied mounting brackets
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
During operation, there may be a hazard of contact with a dangerous voltage of up to 100 V at the speaker terminals. Always switch off the amplifier before making or changing any connections.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
The heat generated inside the unit must be dissipated by air circulation; never cover the air vents of the housing.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Parametrii

Peak output power 340 W
Power rating 240 W
Power rating at 4 Ω 240 W
Power rating at 8 Ω 120 W
Power rating at 16 Ω 60 W
Power rating at 100 V 240 W
Power rating at 70 V 240 W
Channels input channels:1 output channels: 6
Inputs 5 mV/600 Ω (mic), 350 mV/10 kΩ (aux), 1 V/10 kΩ (telephone)
Frequency range 50-16,000 Hz
Equalizer bass ± 10 dB/100 Hz
Equalizer treble ± 10 dB/10 kHz
S/N ratio 66 dB (mic) 80 dB (aux)
THD < 0.5%
Phantom power 48 V
Power supply ˜ 230 V/50 Hz/740 VA
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 740 VA
Admiss. ambient temp. 0-40 °C
Width 430 mm
Height 88 mm
Depth 380 mm
Rack units, RU 2
Weight 11.6 kg

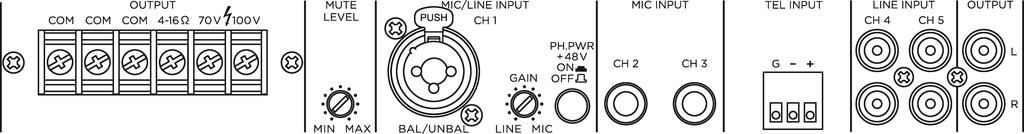

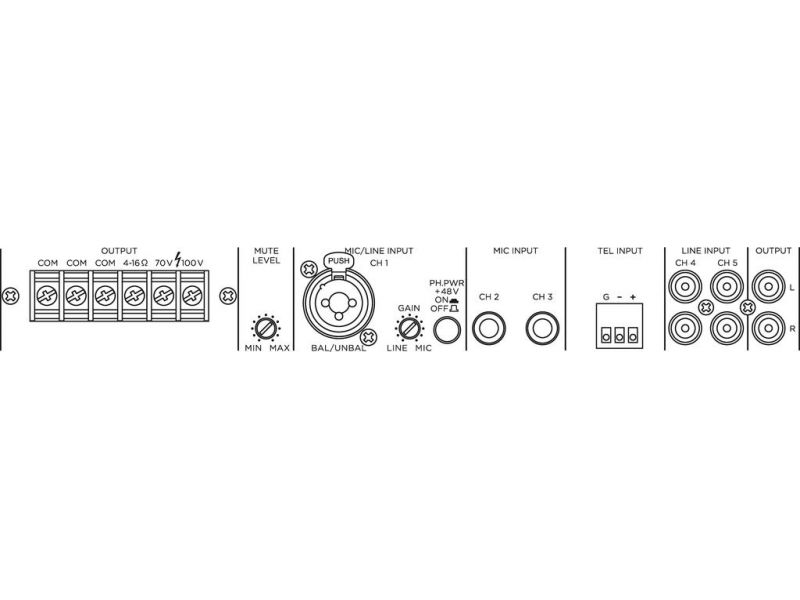

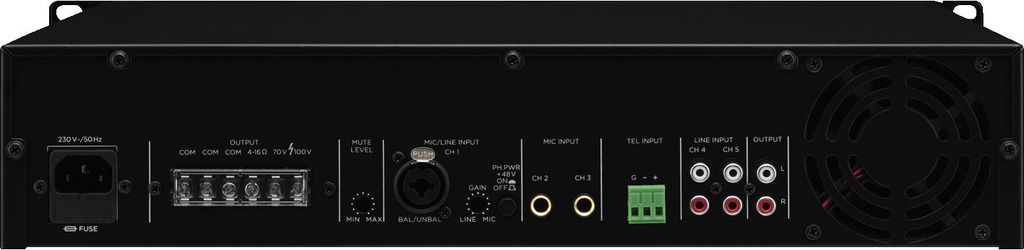

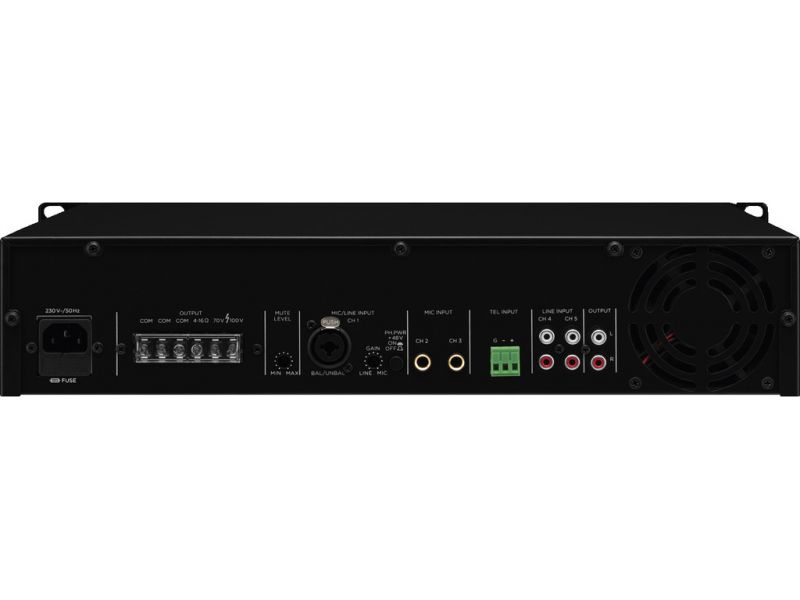

Connections 1 x 6.3 mm/XLR (combo), 1 x 6.3 mm jack (mic 1), 2 x 6.3 mm jack (mic 2-3), 2 x RCA L/R (aux 1-2), screw terminal (telephone), 1 x RCA L/R (line out), screw contacts (speakers)
Packaging dimensions (W x H x L) 0.505 x 0.185 x 0.54 m
Gross weight 14.68 kg
Net weight 11.63 kg

Fisiere de descarcat

Fisa produsului PA-324 konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
