PM-2/15A

Cod EAN: 4007754020502

Moving coil panel meter With mirror scale All-plastic housing Quality class 2 Zero point correction Prewired for illumination Measuring range: 15 A For illumination purposes, these panel meters can subsequently be fitted with two LEDs with serie...

Citeste mai mult

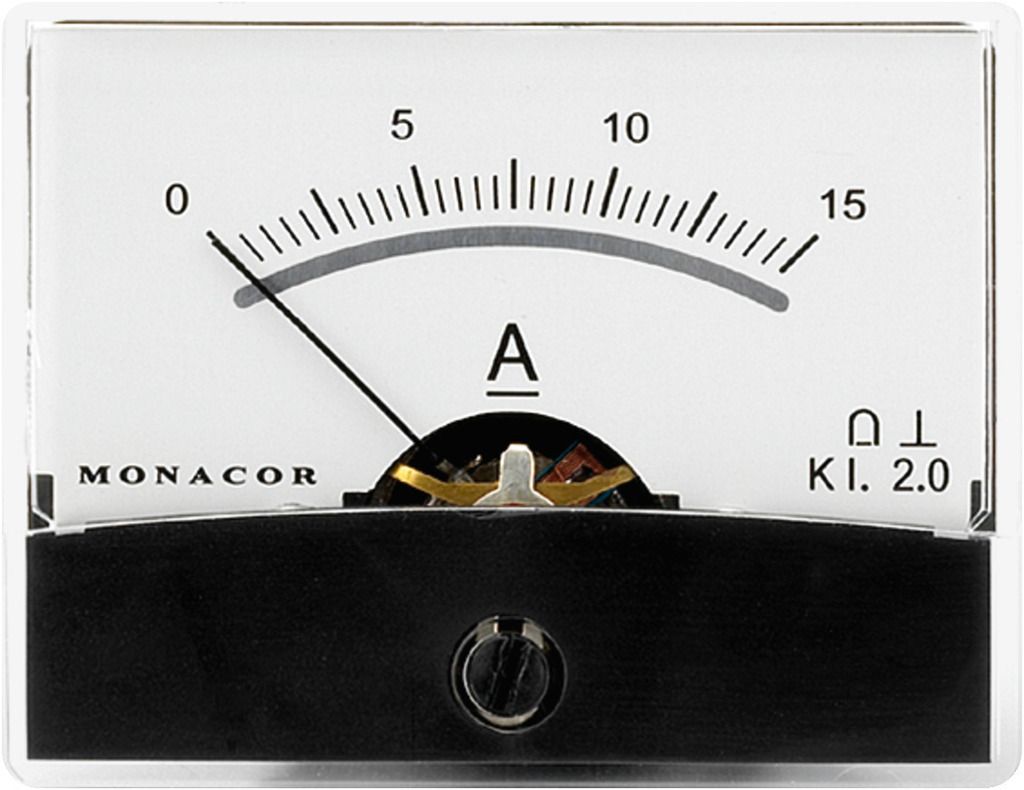

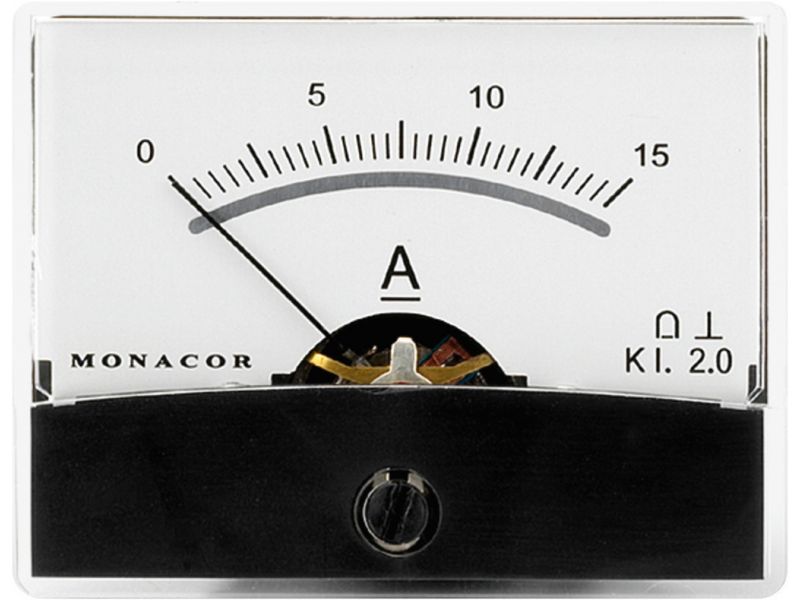

PM-2/15A

Moving coil panel meter
  • With mirror scale
  • All-plastic housing
  • Quality class 2
  • Zero point correction
  • Prewired for illumination
  • Measuring range: 15 A
For illumination purposes, these panel meters can subsequently be fitted with two LEDs with series resistor.

Parametrii

Measuring range 15 A
Internal resistance 4 mΩ
Dimensions display 60.3 x 46.3 mm
Mounting cutout Ø 37.5 mm
Mounting depth 23 mm
