WALL-06T/WS

Cod EAN: 4007754261288

Pair of 2-way PA speaker systems 100 V wall speaker with plastic cabinet in white 4 power taps as well as switchable to 8 Ω operation 16 cm (6") bass-midrange speaker and 25 mm (1") dome tweeter High sound quality and speech intelligibility Mounting...

Citeste mai mult

Intreaba despre produs
Cumpara acum


WALL-06T/WS

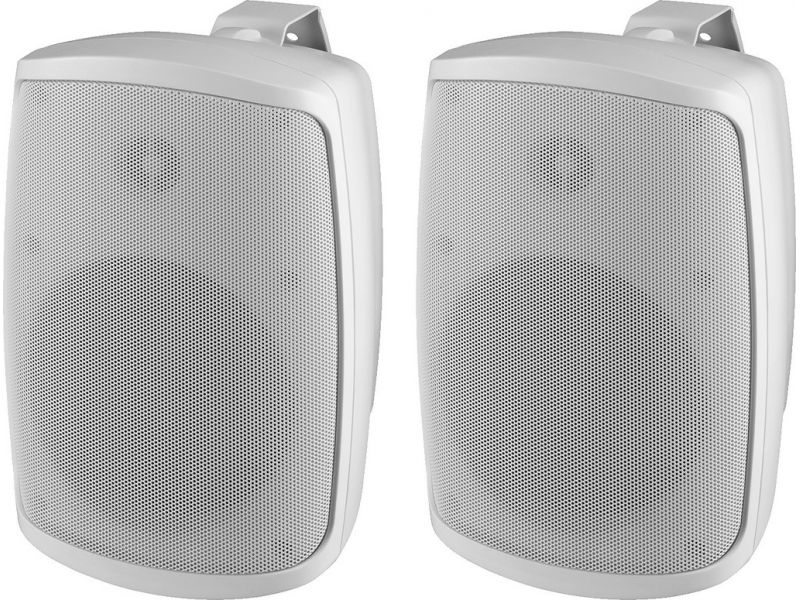

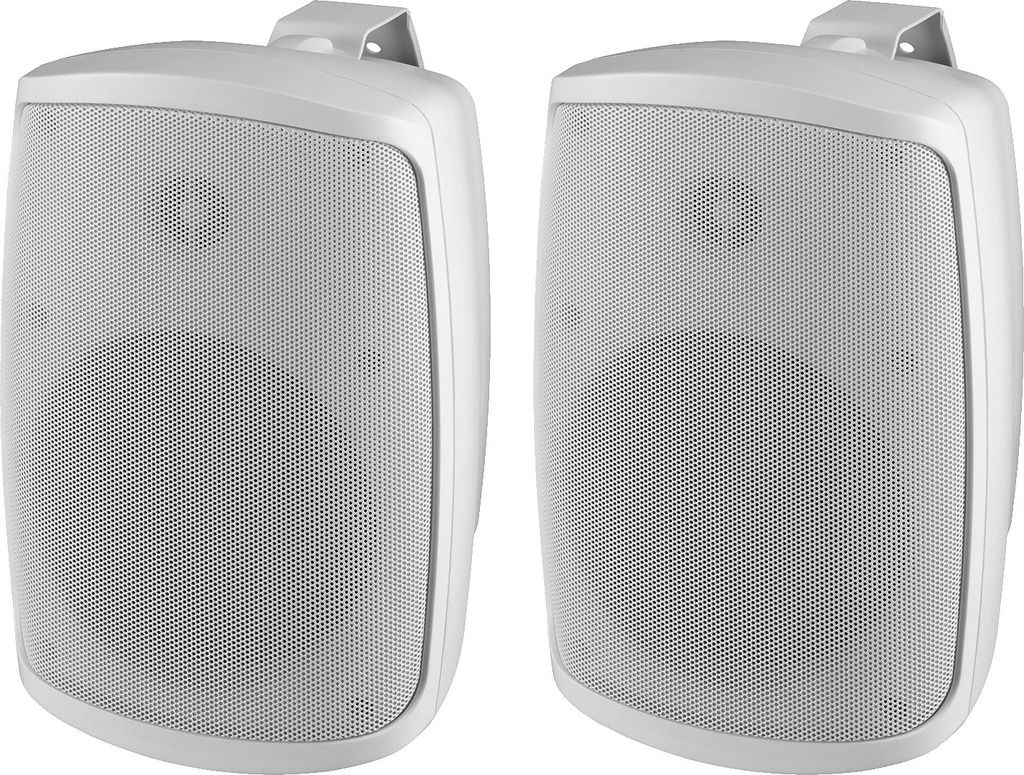

Pair of 2-way PA speaker systems
  • 100 V wall speaker with plastic cabinet in white
  • 4 power taps as well as switchable to 8 Ω operation
  • 16 cm (6") bass-midrange speaker and 25 mm (1") dome tweeter
  • High sound quality and speech intelligibility
  • Mounting bracket for pivoting and tilting
  • Connecting terminal with cover
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Active/passive passive
Transmission technology 100 V or low-impedance
Total power rating 100 W
Power rating (RMS) 32/16/8/4 W (100 V) 50 W (8 Ω)
Impedance 8 Ω
Frequency range 70-20,000 Hz
System 2-way
Bass speaker 16 cm (6") bass-midrange speaker
Tweeter 25 mm (1") dome tweeter
Number of speakers 2
Speaker size 16 cm (6")
SPL 90 dB/W/m
Max. rated SPL 106 dB
Radiation angle/beam angle H: 110°/V: 90°
Radiation angle, horizontal 110°
Radiation angle, vertical 90°
Housing material plastic
Colour white
Mounting device mounting bracket
Protection class IP65
Admiss. ambient temp. 0-40 °C

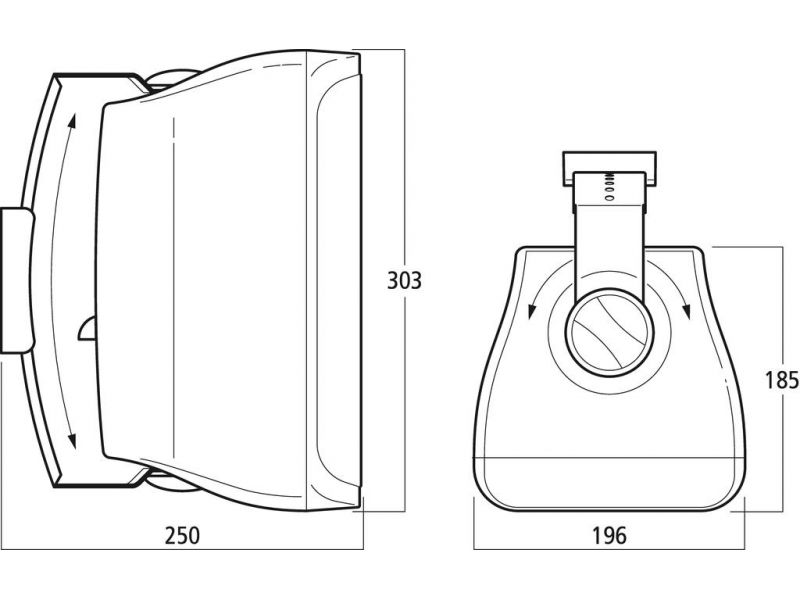

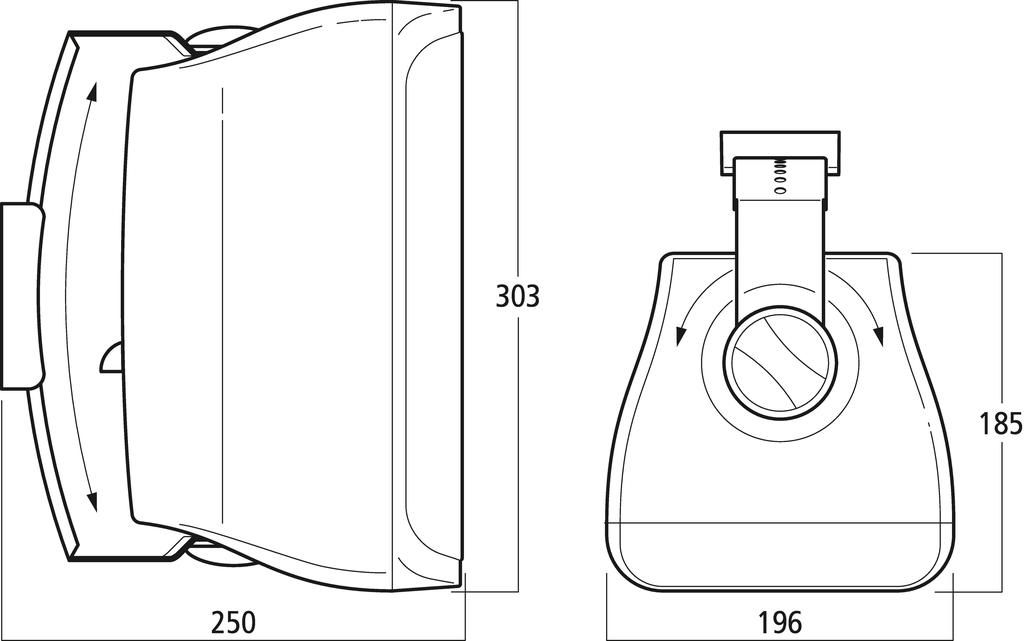

Dimensions 196 x 303 x 250 mm (with bracket)
Width 196 mm
Height 303 mm
Depth 250 mm
Weight 3.5 kg
Inputs spring-load. speaker term.
Other features for pivoting and tilting
Packaging dimensions (W x H x L) 0.23 x 0.33 x 0.505 m
Gross weight 7.63 kg
Net weight 6.97 kg

Fisiere de descarcat

Fisa produsului WALL-06T/WS konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
