ESP-134/WS

Cod EAN: 4007754276992

These wall speakers impress by an extraordinarily flat design which is only achieved by applying the latest NEODYMIUM magnetic systems. The ESP-130... speaker systems already provide a very pleasant and complete sound and yet, with a total depth of o...

Citeste mai mult

Intreaba despre produs
Cumpara acum

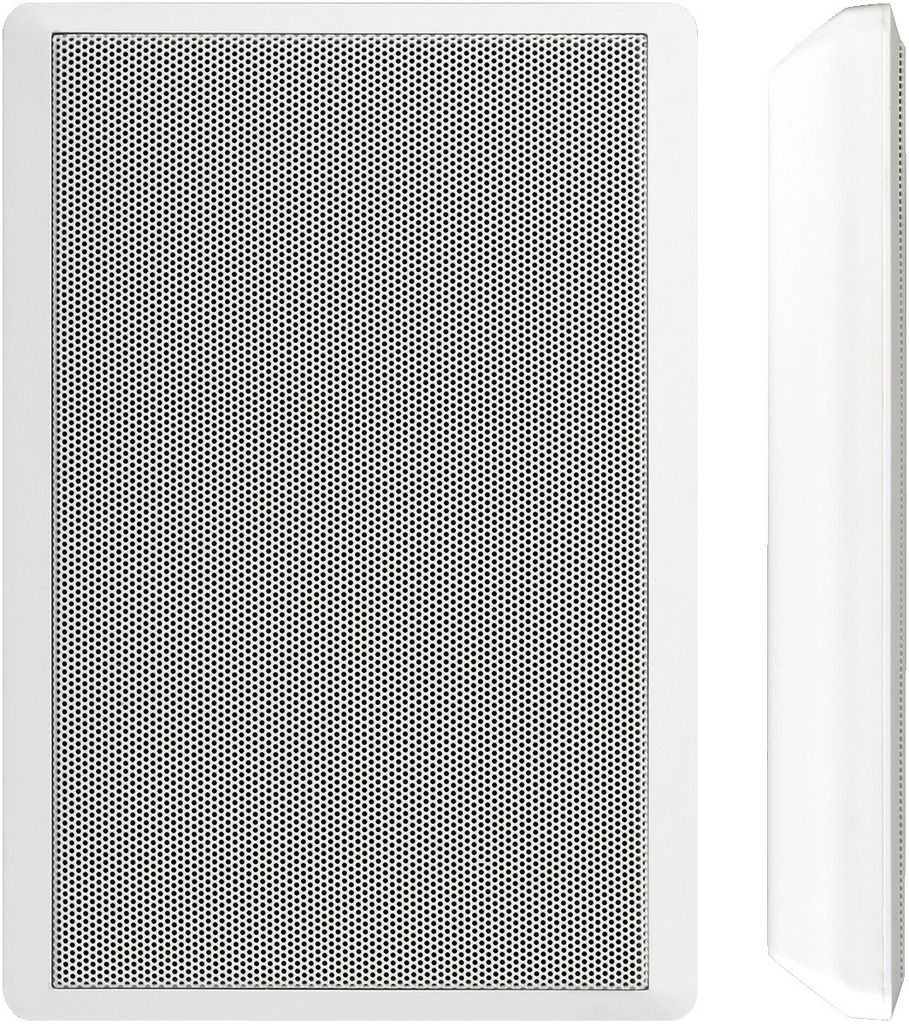

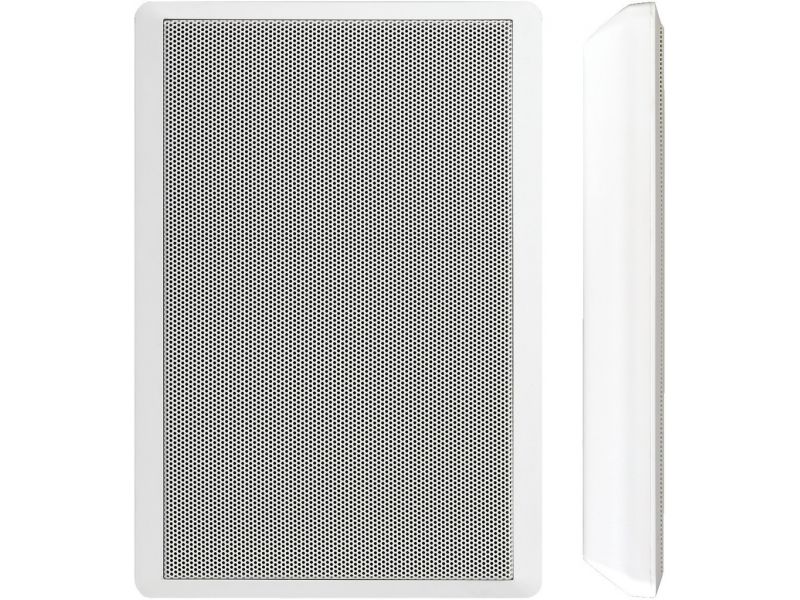

ESP-134/WS

These wall speakers impress by an extraordinarily flat design which is only achieved by applying the latest NEODYMIUM magnetic systems.
The ESP-130... speaker systems already provide a very pleasant and complete sound and yet, with a total depth of only 38 mm, they are of such a flat design, that they are just as unobtrusive on the wall as a flush-mount speaker.
PA wall speaker
  • 100 V transmission technology via audio transformer with 3 W and 6 W power taps or 4 Ω operation (20 W)
  • 2-way system with neodymium bass-midrange speaker and dome tweeter
  • White plastic cabinet with protective metal grille
  • Slimline design for unobtrusive wall mounting
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Parametrii

Active/passive passive
Transmission technology 100 V or low-impedance
Total power rating 6 W
Power rating (RMS) 6/3 W (100 V) 20 W (4 Ω)
Impedance 4 Ω
Frequency range 80-18,000 Hz
System 2-way
Number of speakers 2
Speaker size 13 cm (5")
SPL 91 dB/W/m
Max. rated SPL 104 dB
Radiation angle/beam angle H: 100°/V: 60°
Radiation angle, horizontal 100°
Radiation angle, vertical 60°
Housing material plastic
Colour white
Mounting device attachment via screw
Admiss. ambient temp. 0-40 °C
Dimensions 185 x 275 x 38 mm
Width 185 mm
Height 275 mm
Depth 38 mm
Weight 1.25 kg
Inputs spring-loaded terminal
Packaging dimensions (W x H x L) 0.075 x 0.225 x 0.315 m
Gross weight 1.375 kg
Net weight 1.255 kg

Fisiere de descarcat

Fisa produsului ESP-134/WS konformitaetserklaerung-ce konformitaetserklaerung-ukca Manual de utilizare
