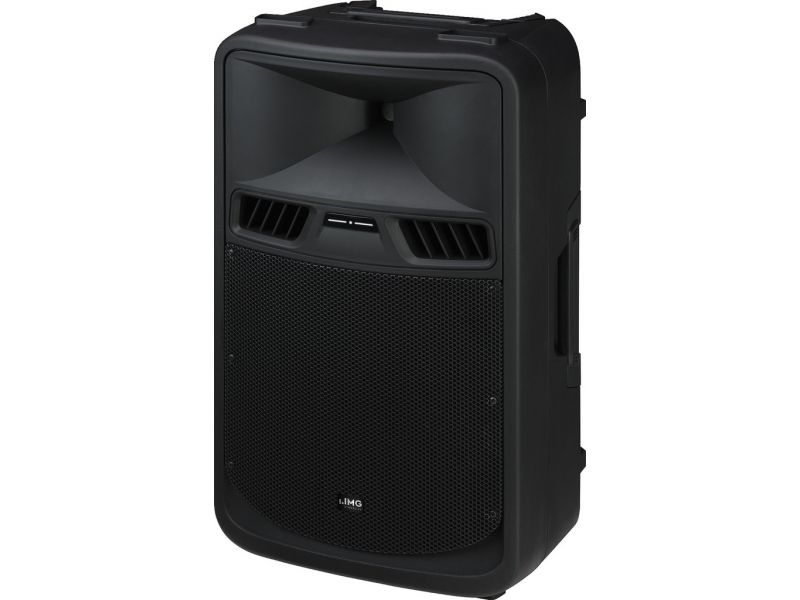

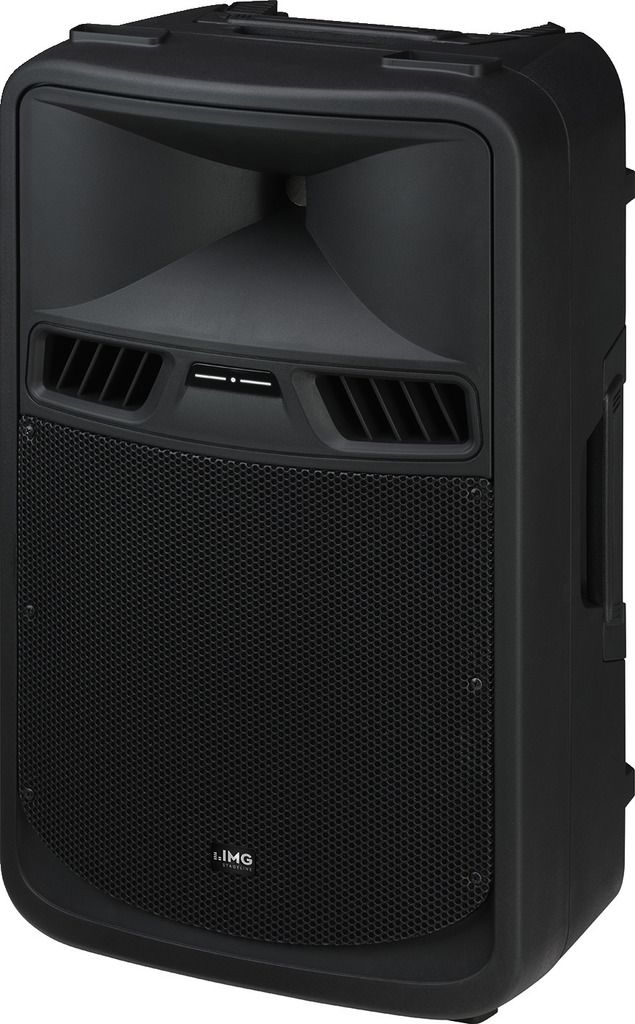

PAK-412

PAK-400 Series
The PAK-400 series is suitable for general applications, features modern technologies and an individual sound tuning to meet various requirements. The amplifier system is a combination of class D for the bass and class A/B for the tweeter. With practice-oriented presets, it is easy to find the perfect sound and with the high-pass filter to be activated as required at 75 Hz, this series can easily be matched to subwoofer systems like the PSUB-418AK.
Active power PA speaker system with 2-channel amplifier, 700 W
  • Compact 12/2 full range system with robust plastic cabinet
  • Modern amplifier system (bass: class D, tweeter: class A/B)
  • Sound pressure at nominal power: 124 dB
  • 4 selectable presets: normal, hi-fi, DJ and voice, switchable high-pass filter: 75 Hz
  • Mic/line input, switchable
  • LED indicators for power, signal and peak/clipping
  • M10 threaded inserts (2 x top, 2 x bottom and 1 x at the rear)
  • Bevelled side for application as a floor monitor
  • Stand sleeve and carrying handles
TASTENWELT 06/2015
“The PAK-400 series from IMG Stage Line features individual adjustment facilities using modern technology which makes it suitable for most versatile applications; definitely a concept that works: this series provides a perfect system for everyone, including keyboard entertainers, combinations of entertaining music and DJs.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety and warning notices
The appliance is supplied with life-threatening mains voltage. Therefore, never tamper with it yourself and do not insert anything into the ventilation openings. There is a risk of electric shock.
Do not operate the appliance and disconnect the mains plug from the socket immediately if there is visible damage to the appliance or the mains cable, if a defect is suspected after a fall or similar, or if malfunctions occur. Always return the appliance to a specialist workshop for repair.
Only use the device indoors and protect it from dripping and splashing water, high humidity and heat (permissible operating temperature range 0 - 40 °C).
Never set the speaker volume very high. High volumes can damage your hearing in the long term!
Never pull the mains plug out of the socket by the cable, always grasp the plug.
If the appliance is to be taken out of service for good, hand it over to a local recycling centre for environmentally friendly disposal.

Parametrii

Active/passive active
Transmission technology cable
Total output power 700 W
Power rating (RMS) 450 (350+100) W
Frequency range 40-20,000 Hz
Input signal 260 mV/10 kΩ (line), 2 mv/10 kΩ (mic)
System 12/2 full range
Bass speaker 30 cm (12") bass speaker
Tweeter 33 mm (1.3") tweeter
Number of speakers 2
Speaker size 30 cm (12")
SPL 98 dB/W/m
Max. rated SPL 124 dB
Radiation angle/beam angle H: 100°/V: 70°
Radiation angle, horizontal 100°
Radiation angle, vertical 70°
Housing material plastic
Colour black
Mounting device M10 threaded inserts, stand sleeve
Admiss. ambient temp. 0-40 °C
Power supply ˜ 230 V/50 Hz/500 VA
Dimensions 405 x 670 x 340 mm
Width 405 mm
Height 670 mm
Depth 340 mm
Weight 17.3 kg

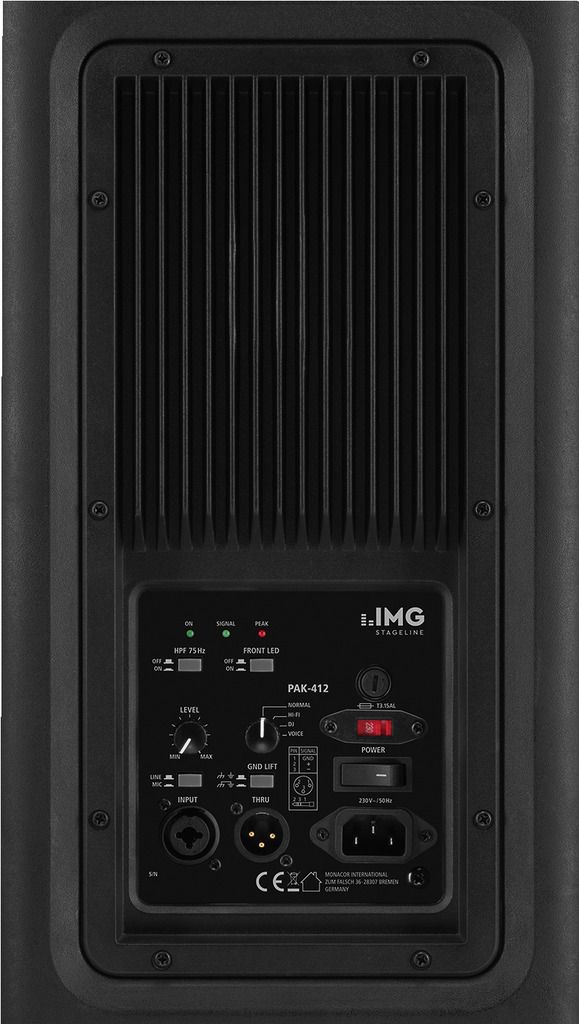

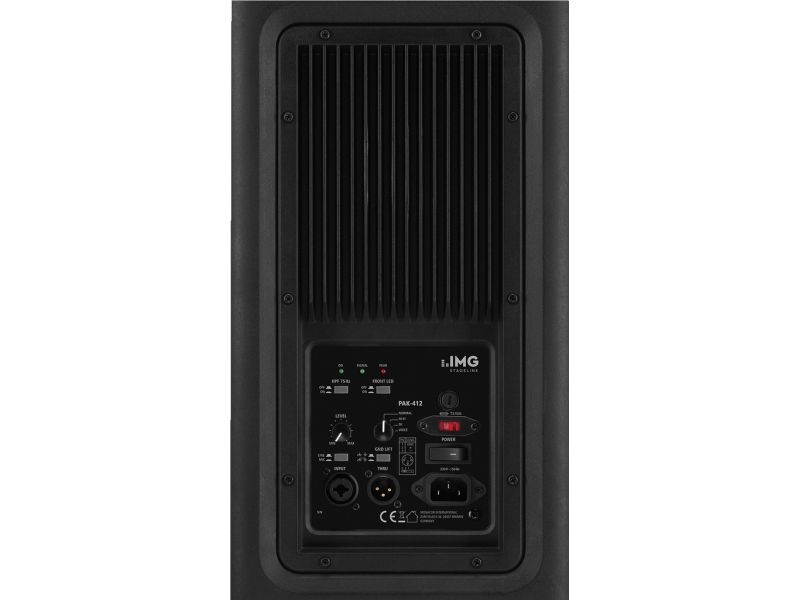

Inputs 1 x comb. XLR/6.3 mm (line/mic)
Outputs 1 x XLR, par. out
Other features 4 selectable presets switchable high-pass filter: 75 Hz
Packaging dimensions (W x H x L) 0.43 x 0.76 x 0.49 m
Gross weight 19.69 kg
Net weight 17.57 kg
